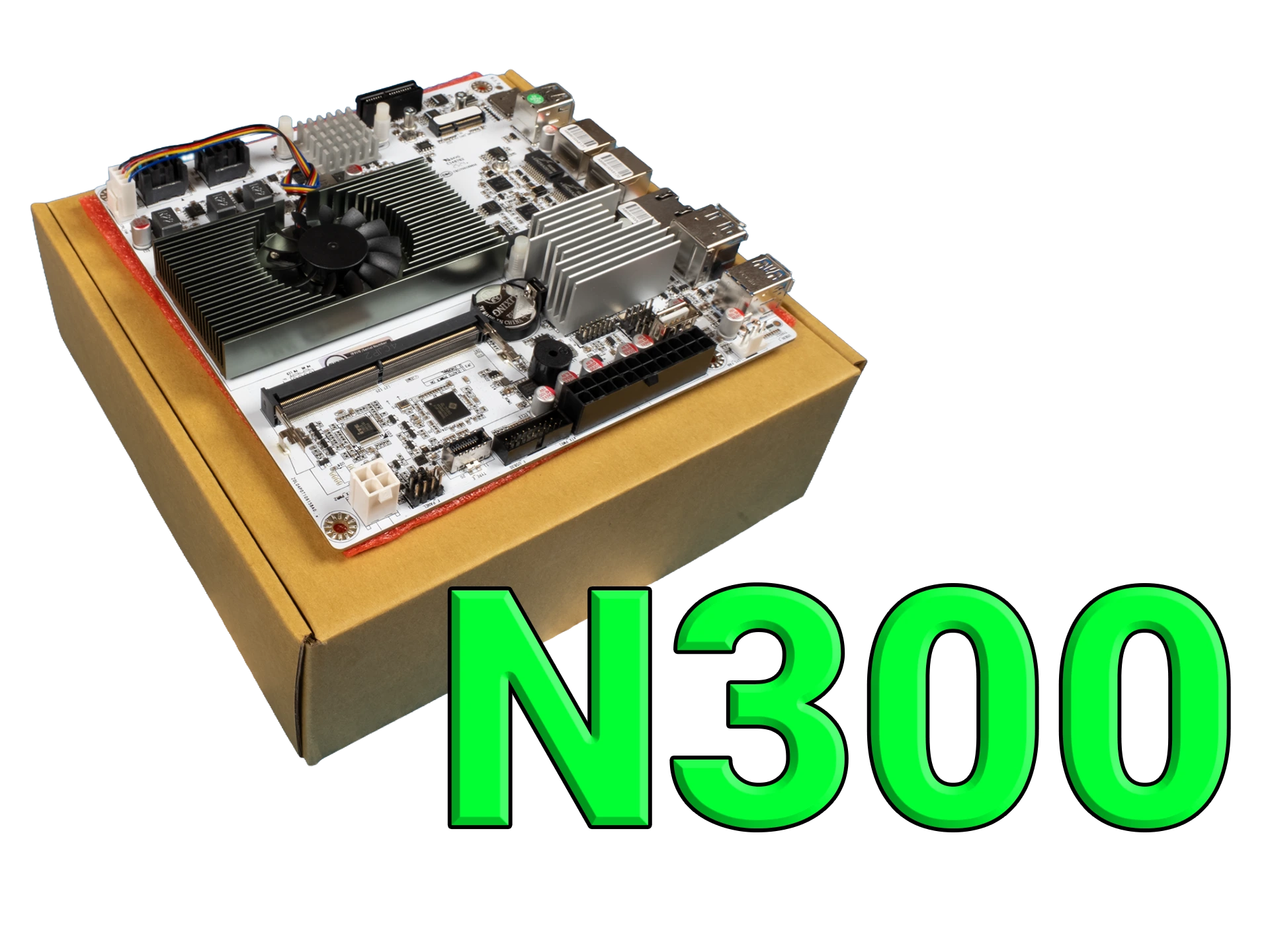

Topton N22 Mini-ITX NAS Motherboard w/ N300 CPU
Sold by briancmoses.com
A fantastic small form factor (MiniITX) motherboard for building a DIY NAS featuring: an Intel Core i3-N300 CPU, 1x DDR5 SO-DIMM slot, 8x SATA 3.0 drives, 2x M.2 NVMe drives (PCIe 3.0 x1), 1x 10GbE, 2x2.5Gbe, and a single PCI-e x1 slot.
📦 Ships from: United States
As seen in Brian's DIY NAS: 2026 Edition blog, the Topton N22 features:
- Mini-ITX Form Factor
- Integrated Intel® Core i3-N300 CPU
- 8 cores / 8 threads / Max Turbo 3.80 GHz
- 7W TDP
- Integrated GPU with Intel Quick Sync Video
- 1 x DDR5 SO-DIMM
- 8 x SATA 3.0 Ports (Asmedia ASM1164)
- 2 x M.2 NVMe Slots (PCIe 3.0 x1)
- 1 x 10Gbps NIC (Marvell AQC113C)
- 2 x 2.5Gbps NICs (Intel i226-V)
- 1 x PCI-e x1 or M.2 E-Key slot
Package contents:
- Topton N22 Motherboard
- Motherboard Backplate
Weight:
539 g
Dimensions:
216 x 203 x 76 mm
