Glitch Works 8085 SBC rev 4 Mini

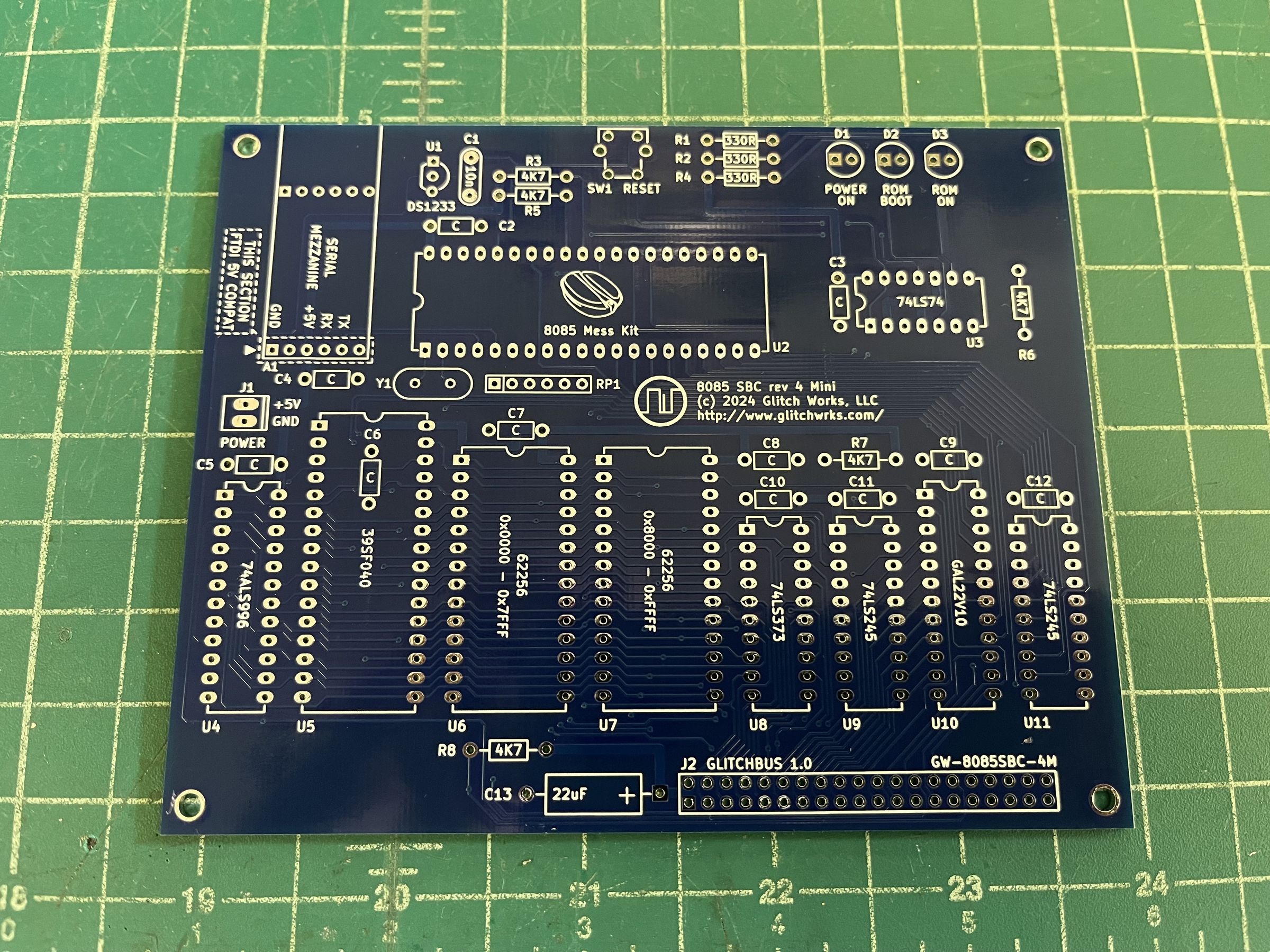

The Glitch Works 8085 SBC rev 4 Mini is an 8085-based single board computer with Glitchbus expansion. Features include:

1. 8085 CPU at 3.072 MHz
2. 64K onboard static RAM, compatible with FeRAM
3. 512K Flash ROM, 4K paged, with CP/M 2.2
4. On-chip serial console, software bitrate control
5. Software controlled power-on jump, Flash chip paging
6. Glitchbus expansion header
7. Reset debounce and low-voltage supervisor

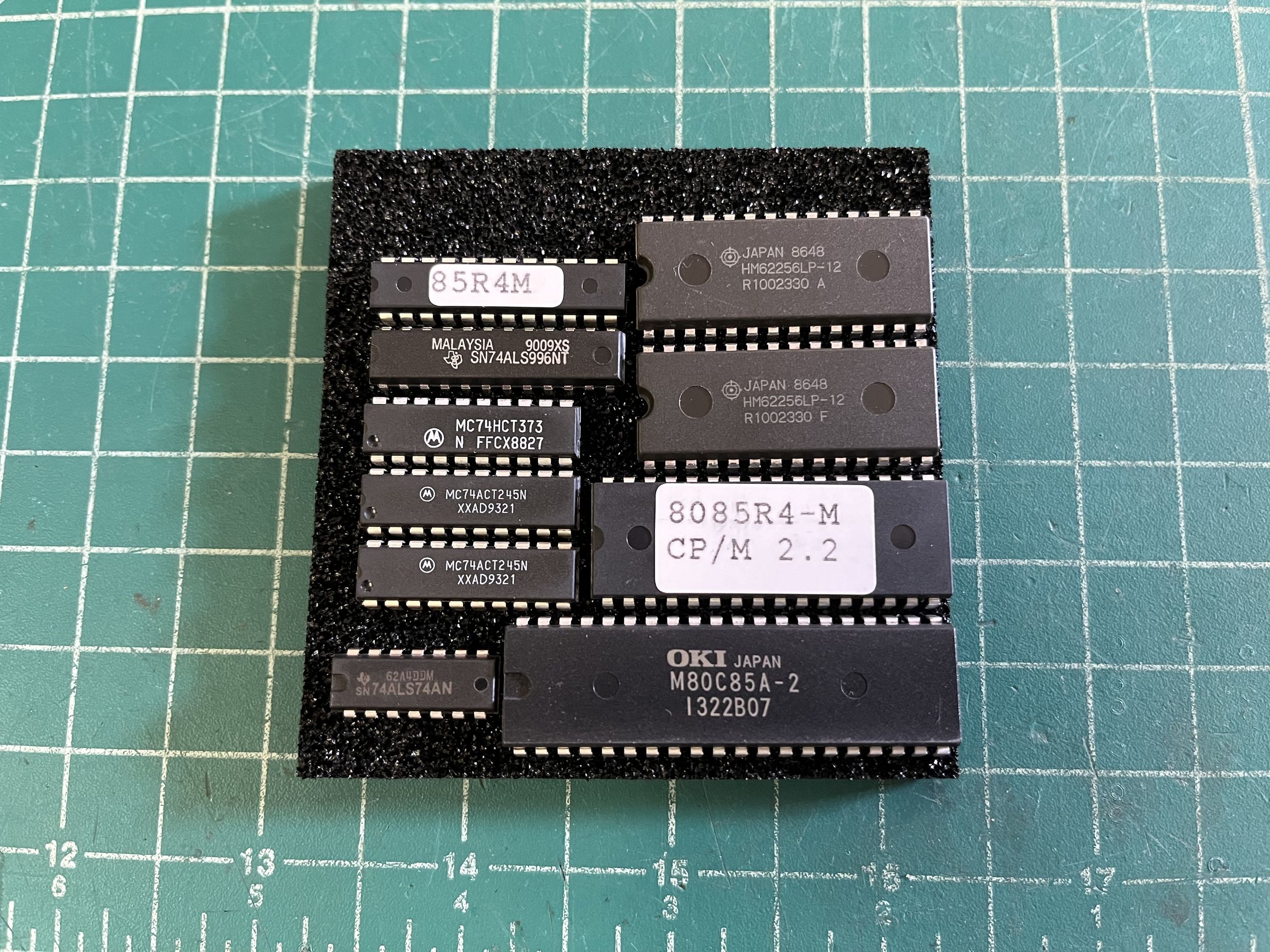

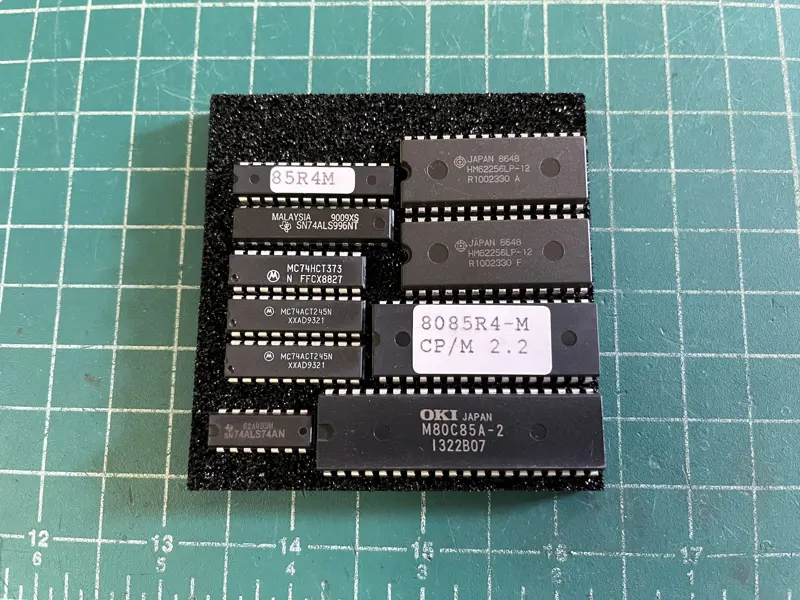

8. Pre-programmed Flash chip with GWMON-80 monitor and CP/M 2.2
9. CF interface available for additional storage
10. Single 5V supply operation
11. "FTDI cable" compatible serial port header, can supply power
12. All decode logic in a single 22V10 GAL
13. User's manual and assembly guide with full schematics, theory of operation

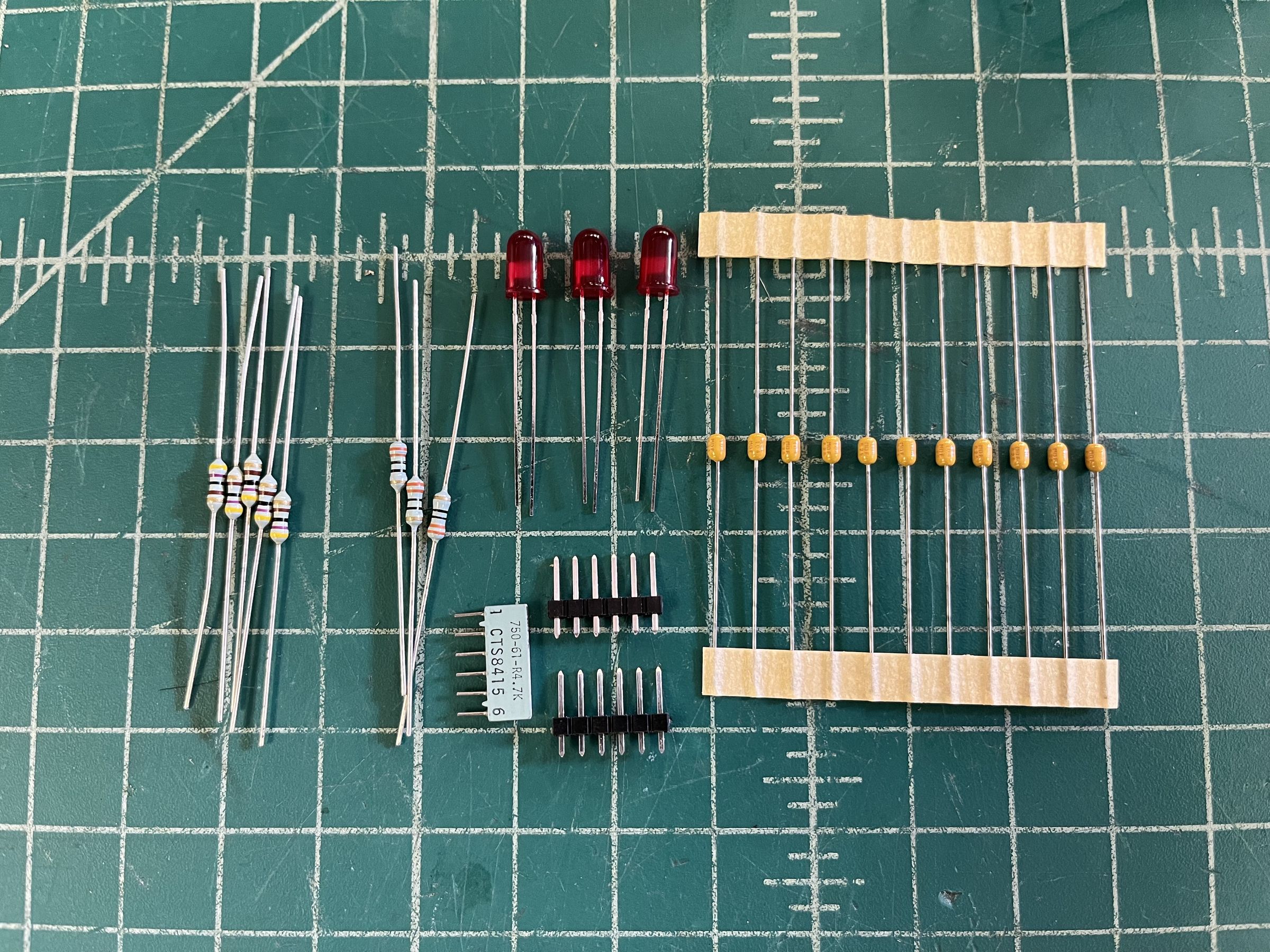

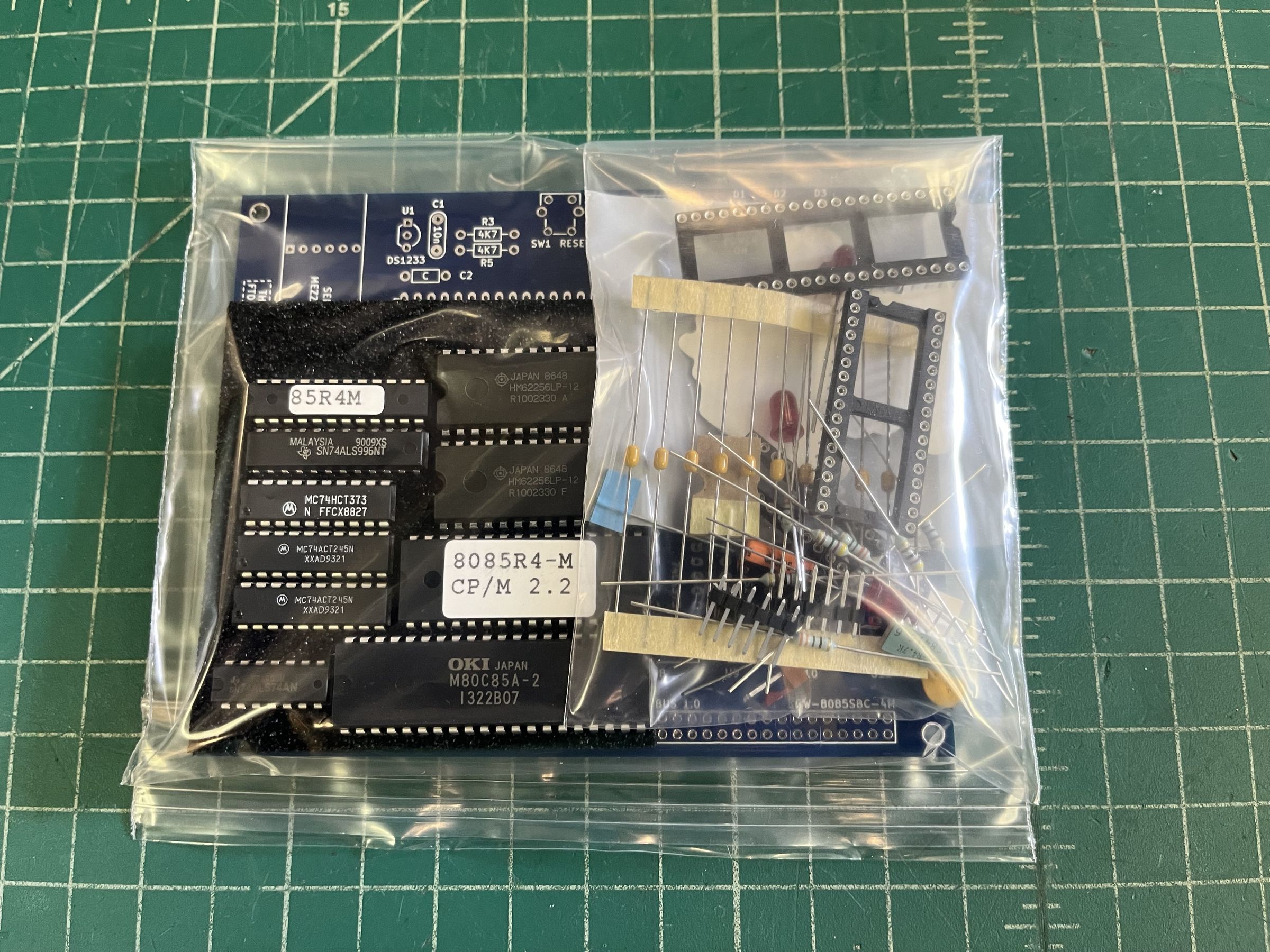

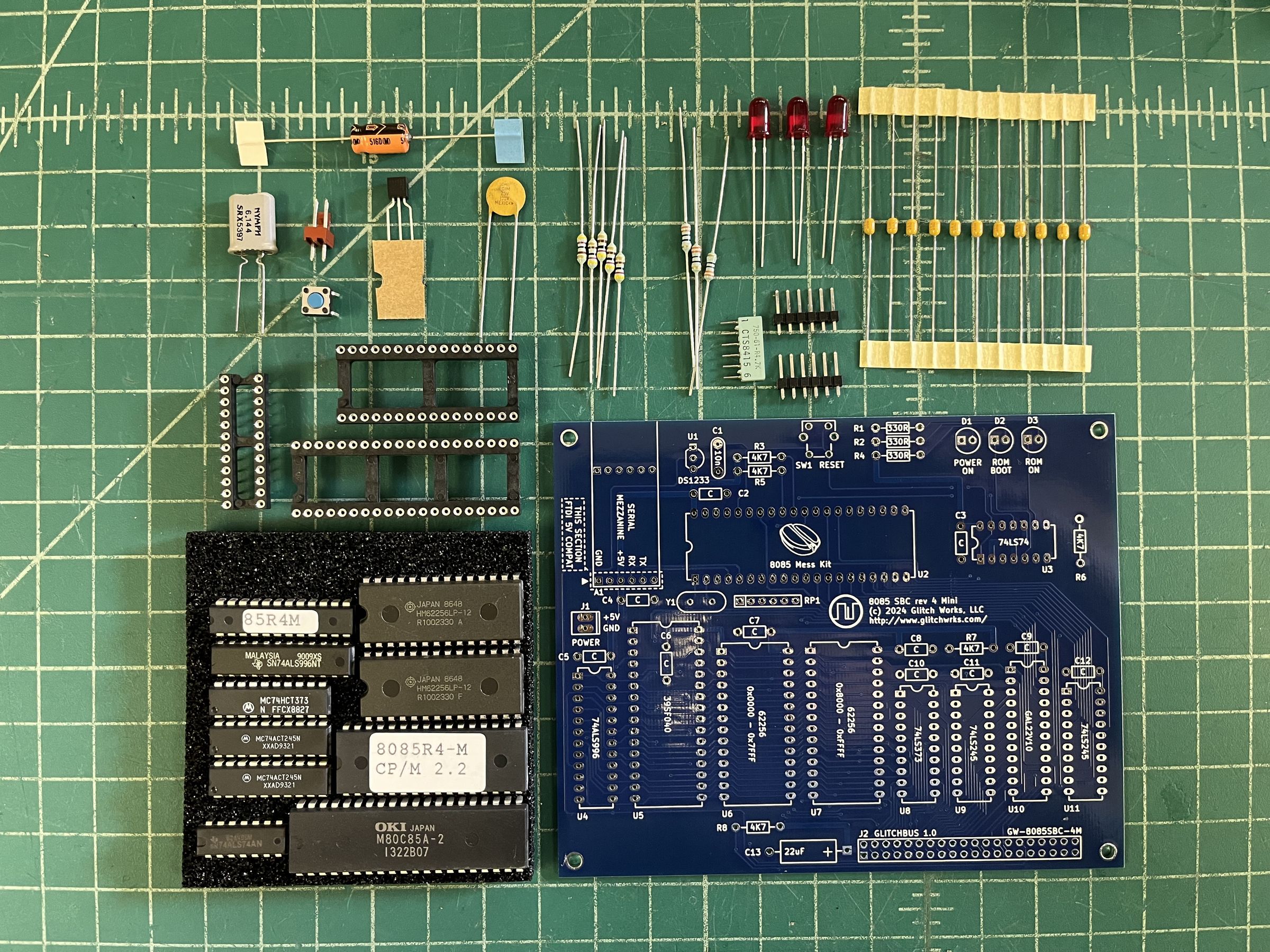

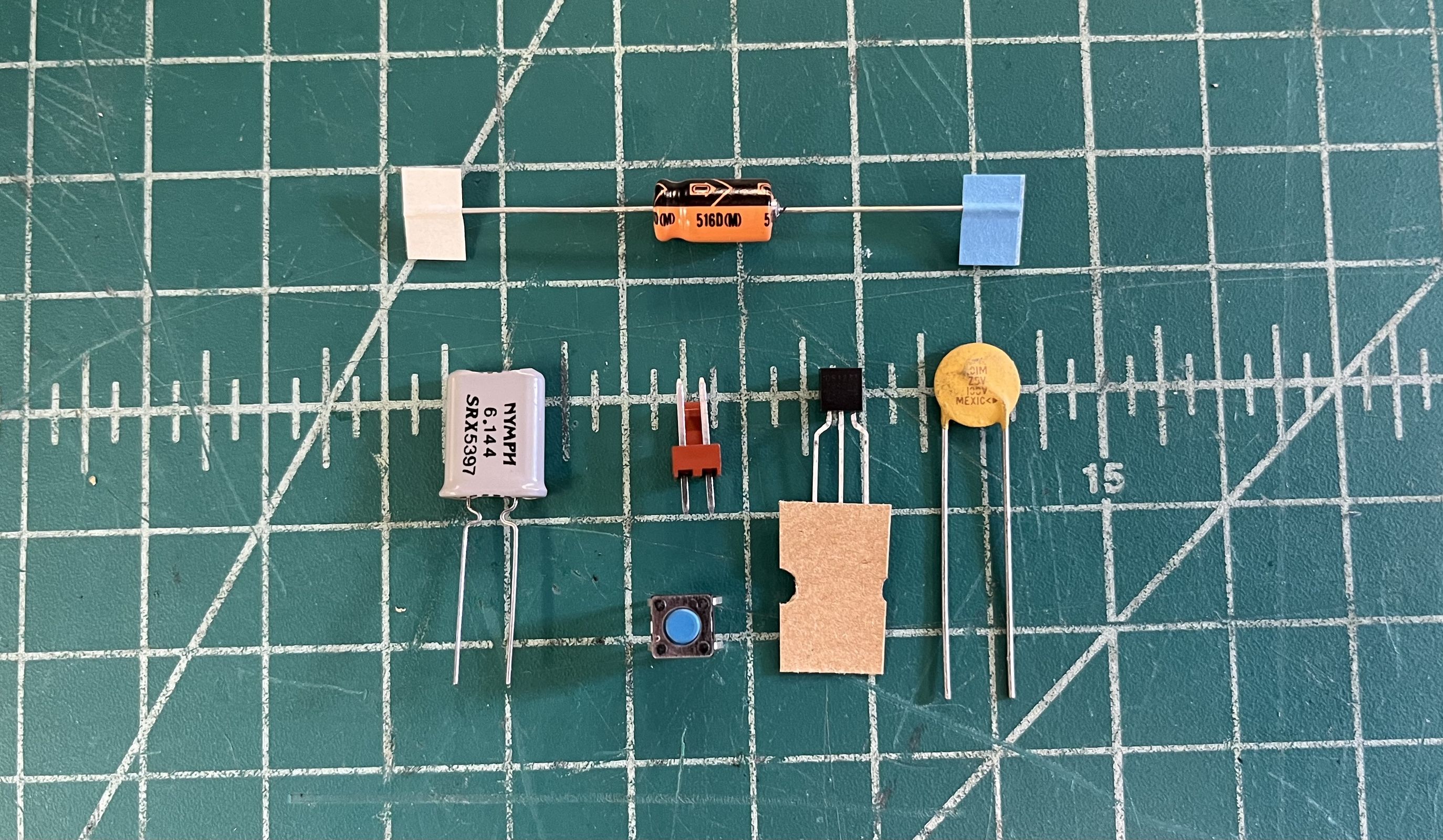

This project is available as a bare board, full parts kit or assembled and tested. The parts kit includes all components you need to assemble the basic SBC kit, including pre-programmed 512K Flash chip and Atmel AT22V10C GAL.

The 8085 SBC rev 4 Mini pairs well with the GW-GLITCHBUS-CF1 CompactFlash adapter, which allows the Flash-based CP/M to use the CF card as a B: drive. If you have a CF card compatible with the 8085 SBC rev 3, it can be used directly with the 8085 SBC rev 4M without modification, and even swapped between systems.

Manual, including schematics and GAL equations:

GW-8085SBC-4M_MANUAL.pdf

Current default 512K Flash chip image with GWMON-80 and CP/M:

8085SBCR4M_20240409.HEX
