Glitch Works R65X1Q SBC Prototyping Board

This prototyping board pairs with the Glitch Works R6501Q/R6511Q Single Board Computer and provides labeled breakout for the Glitchbus connector, as well as parallel I/O ports A and D. It is intended to stack atop the R65X1Q SBC.

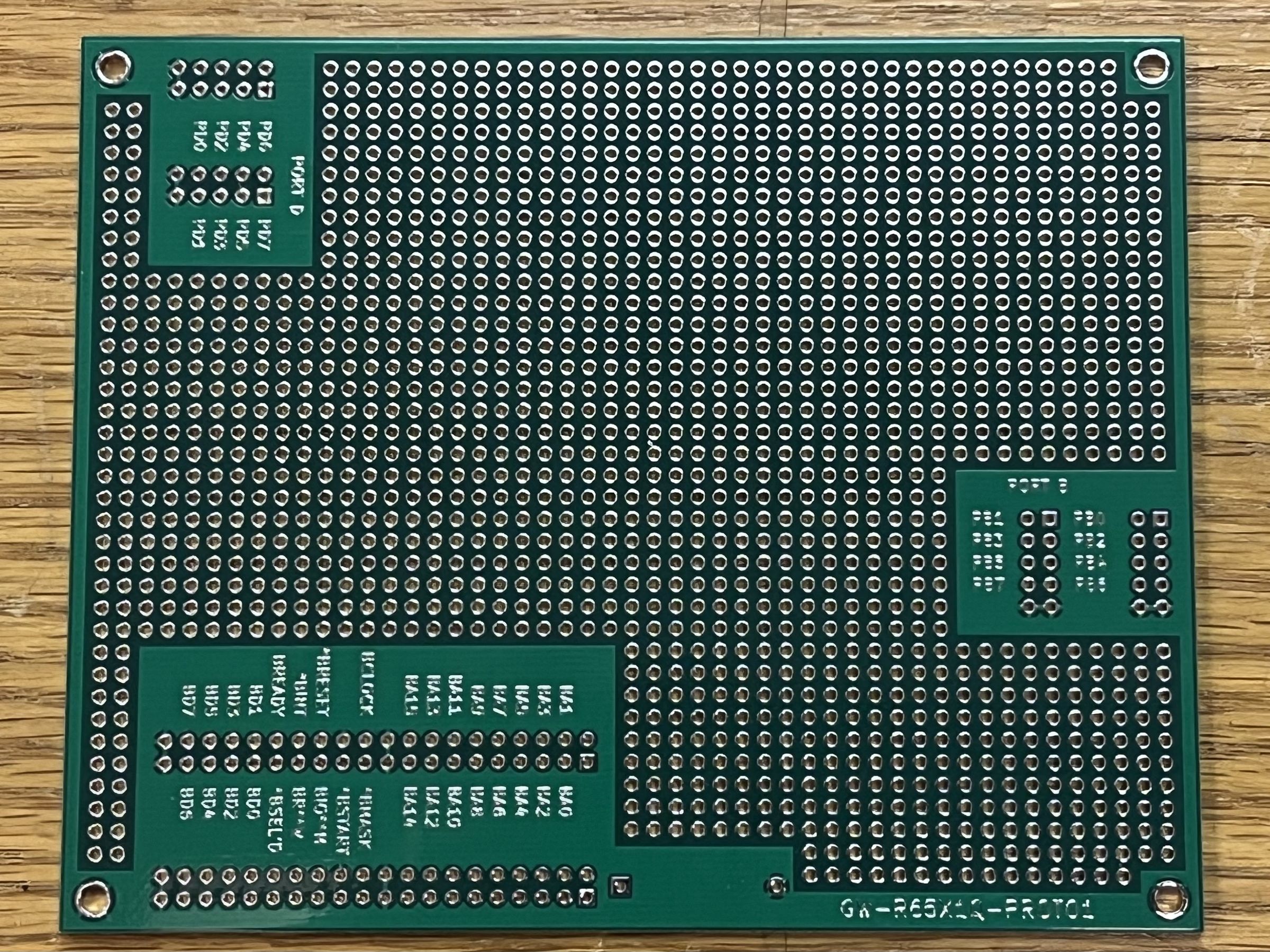

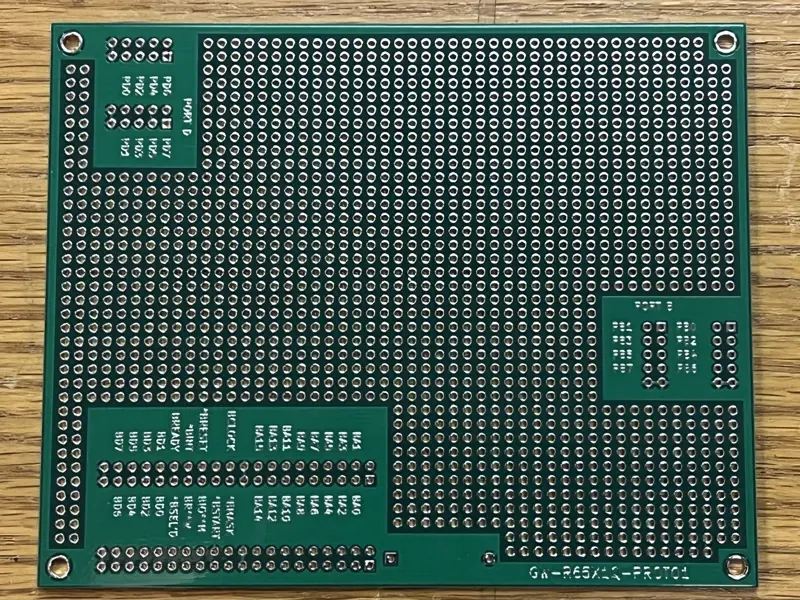

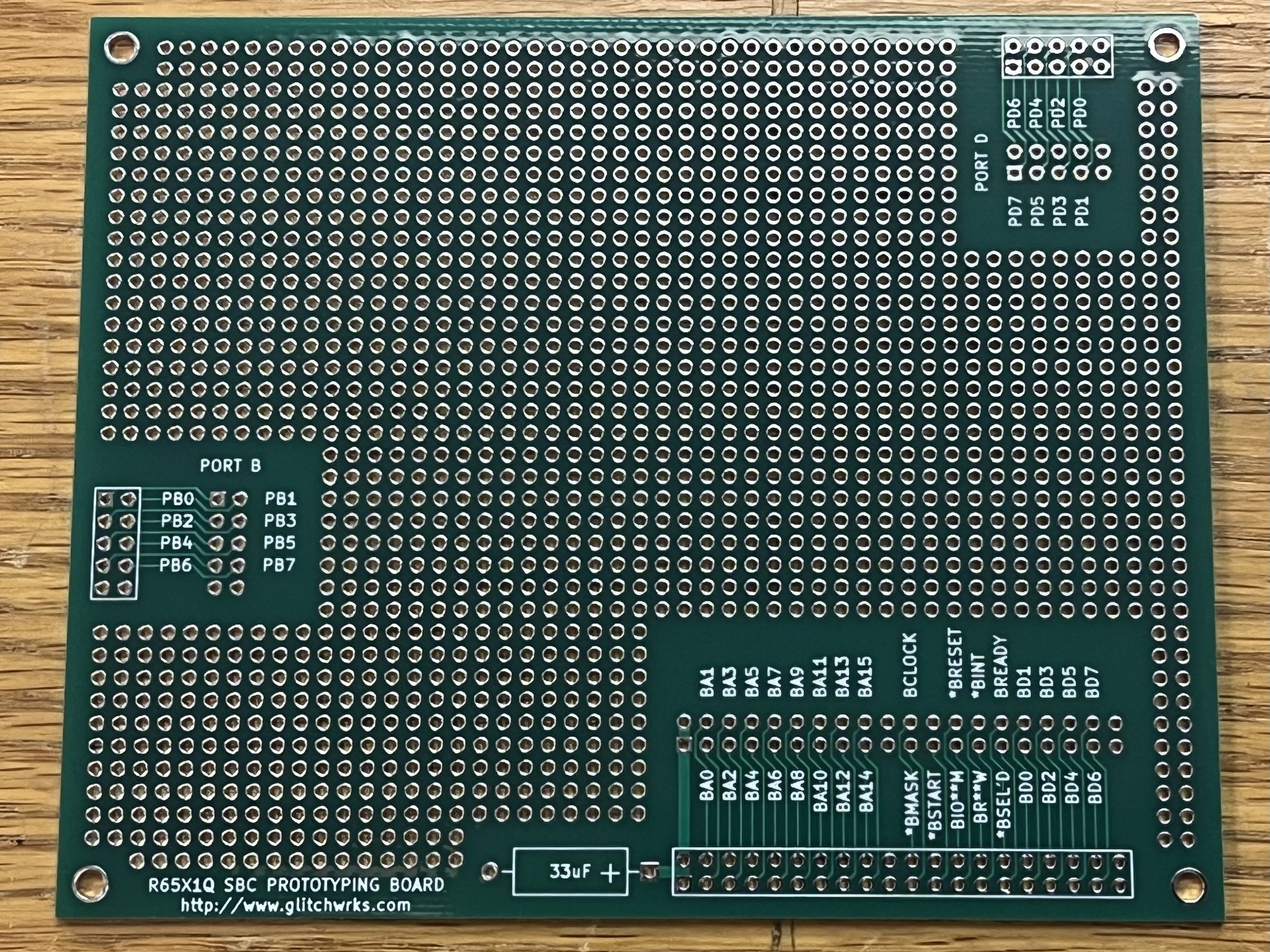

Prototyping area is 0.1" pad-per-hole, plated through. A ground pour surrounds the prototyping area. All signals are labeled on both the top and bottom of the board.

Optional headers can be purchased with the board. The supplied connectors will mate with the stacking configuration of the R65X1Q SBC.

This design is open source, the KiCAD design files are available on Github:

https://github.com/glitchwrks/gw-r65x1qsbc-proto1

The above design files may be used to lay out custom boards for the R65X1Q SBC, as they correctly capture the board dimensions, mounting hole positions, Glitchbus connector, and PORT A and D headers.
