SN76489 Sound Card Kit for RC2014
Sold by Kamprath Hacks
This card allows your RC2014 computer to use the SN76489 chip to produce retro-style sound.
What is it?
This is a SN76489-based sound card for the RC2014. It is a very simple chip, only capable of producing square waves and a noise channel, without any envelope control or filters. This chip was used in the TI-99/4A, ColecoVision, Sega SG-1000, Sega Master System, and Sega Genesis, IBM PCjr and Tandy-compatibles, BBC Micro, as well as many arcade games.
I put together this kit based on [J.B. Langston](https://github.com/jblang)'s design (and with his blessing) because I wanted to make this card more accessible to those not willing or able to source the parts themselves.
What makes it special?
Get that true retro-vibe by using authentic retro sound generators in your RC2014.

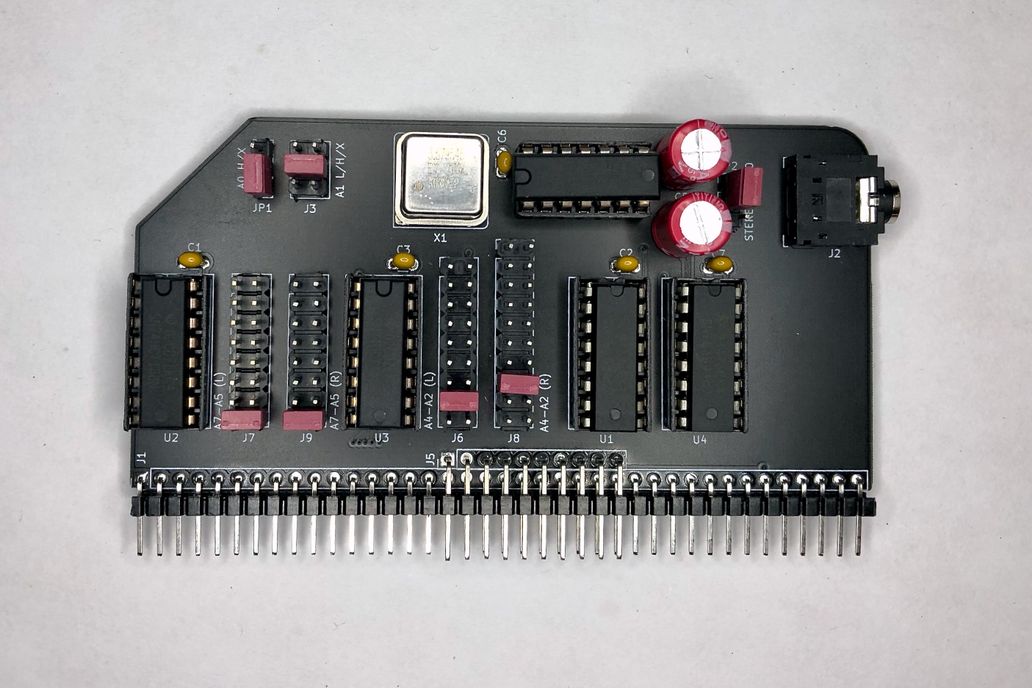

This kit includes everything you need to contract the stereo sound version of the board.
Kit Materials
Note that this kit has the latest REV 4 version of J.B. Langston's SN76489 Sound Card PCB.

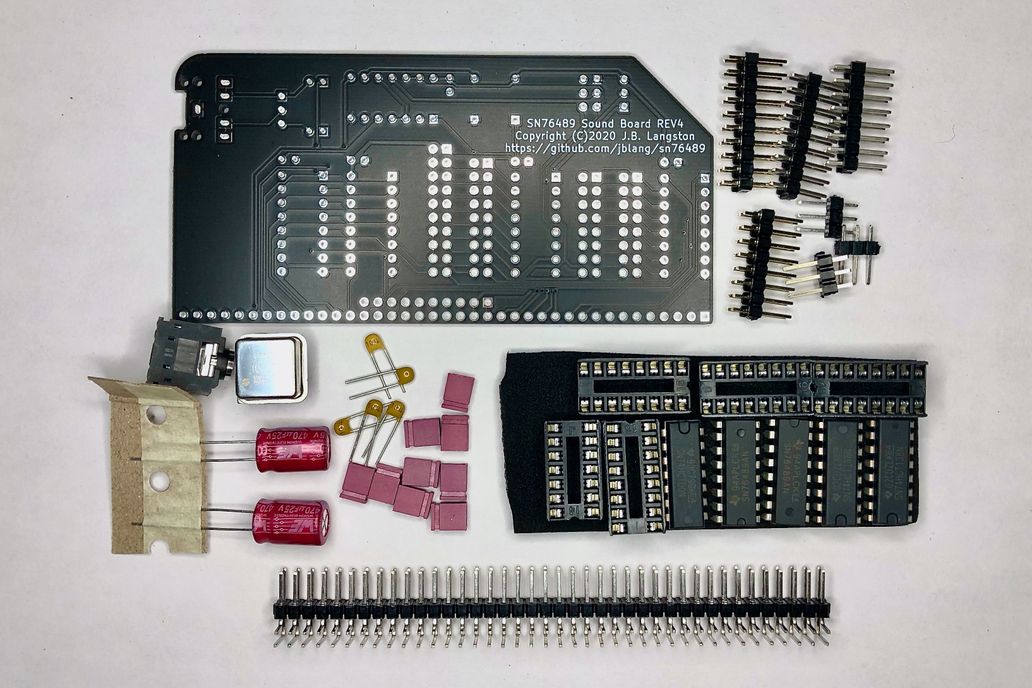

| Item | Kit Count |
|:--|--:|
| SN76489 Card REV 4 PCB | 1 |
| 2x40 right angle pin header | 1 |
| 1x3 straight pin header | 2 |
| 2x8 straight pin header | 2 |
| 2x9 straight pin header | 1 |
| 2x10 straight pin header | 1 |
| 2x4 straight pin header | 1 |
| jumper blocks | 9 |
| CUI SJ1-3523N audio jack | 1 |
| 3.579545 MHz DIP-8 clock oscillator | 1 |
| 0.1 µF capacitor | 5 |
| 470 µF electrolytic capacitor | 2 |
| 74HCT138 | 2 |
| TI SN76489 sound chip | 2 |
| 74HCT00 | 1 |
| 16P IC Socket | 4 |
| 14P IC Socket | 1 |
