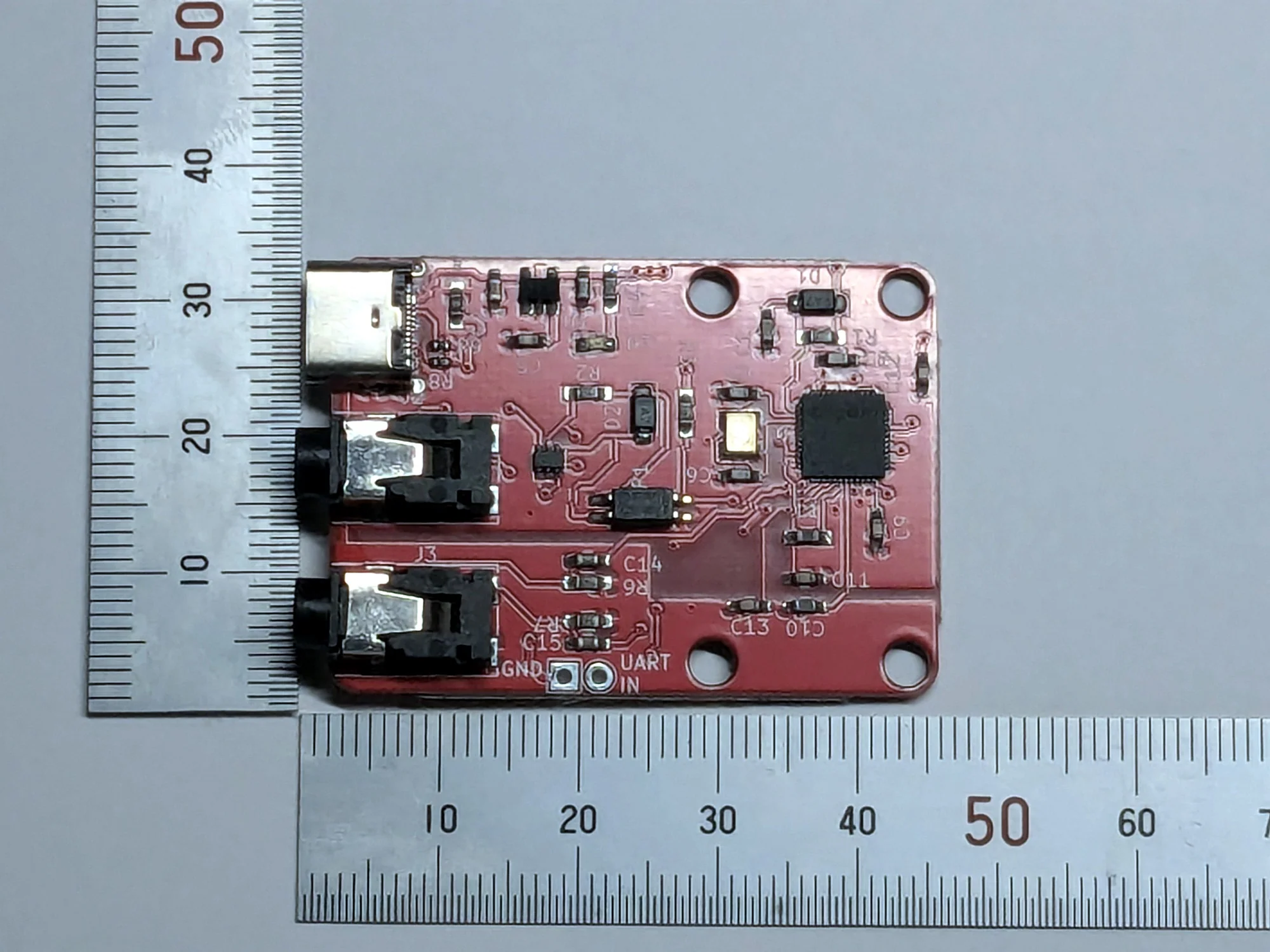

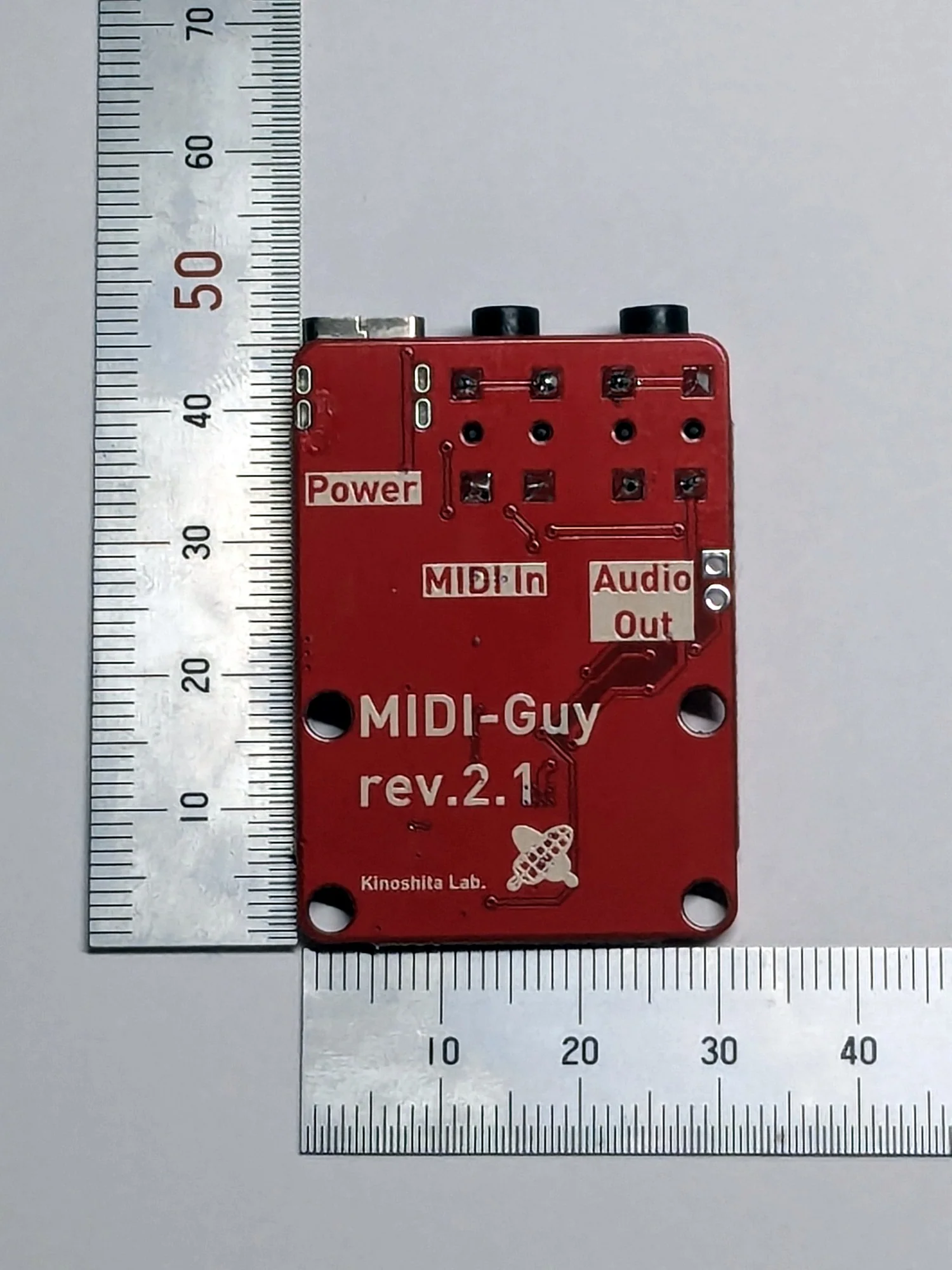

MIDI Guy rev 2.1 Kit
Sold by Kinoshita Laboratory · in Synths, MIDI & Sequencing
SAM2695 based tiny GM synthesizer Kit
Add-ons
Assembled Version
Preassembled, tested product
+$4.00 per unit
20 in stock
Volume Pricing
| Qty | Price Per Unit |
|---|---|
📦 Ships from: Japan
🚚 Flat rate shipping: $10.00
What is it?
MIDI Guy is a sound module with SAM2695, a single chip General MIDI(GM) synthesizer. It can generate GM's 127 sound programs such as "Acoustic Grand Piano", "Trumpet", etc.
You can also use effects and EQs. Please refer to the SAM2695's datasheet for details. https://www.dream.fr/pdf/Serie2000/SAM_Datasheets/SAM2695.pdf
Kit contents
- Pre-assembled circuit board
- 2 pcs. of 3.5mm TRS Jack
- 1 pc. of DIN <-> TRS(Type A) Conversion Cable
How to assemble
- Solder TRS Jack to the preassembled PCB. Please refer to the WEBSite for details.
HS Code:
9207.10
📄 Documentation:
https://github.com/kinoshita-lab/MIDI-guy/ ↗
🔗 Attribution / Original Work:
https://github.com/kinoshita-lab/MIDI-guy/ ↗
💾 Source Code:
https://github.com/kinoshita-lab/MIDI-guy/ ↗
