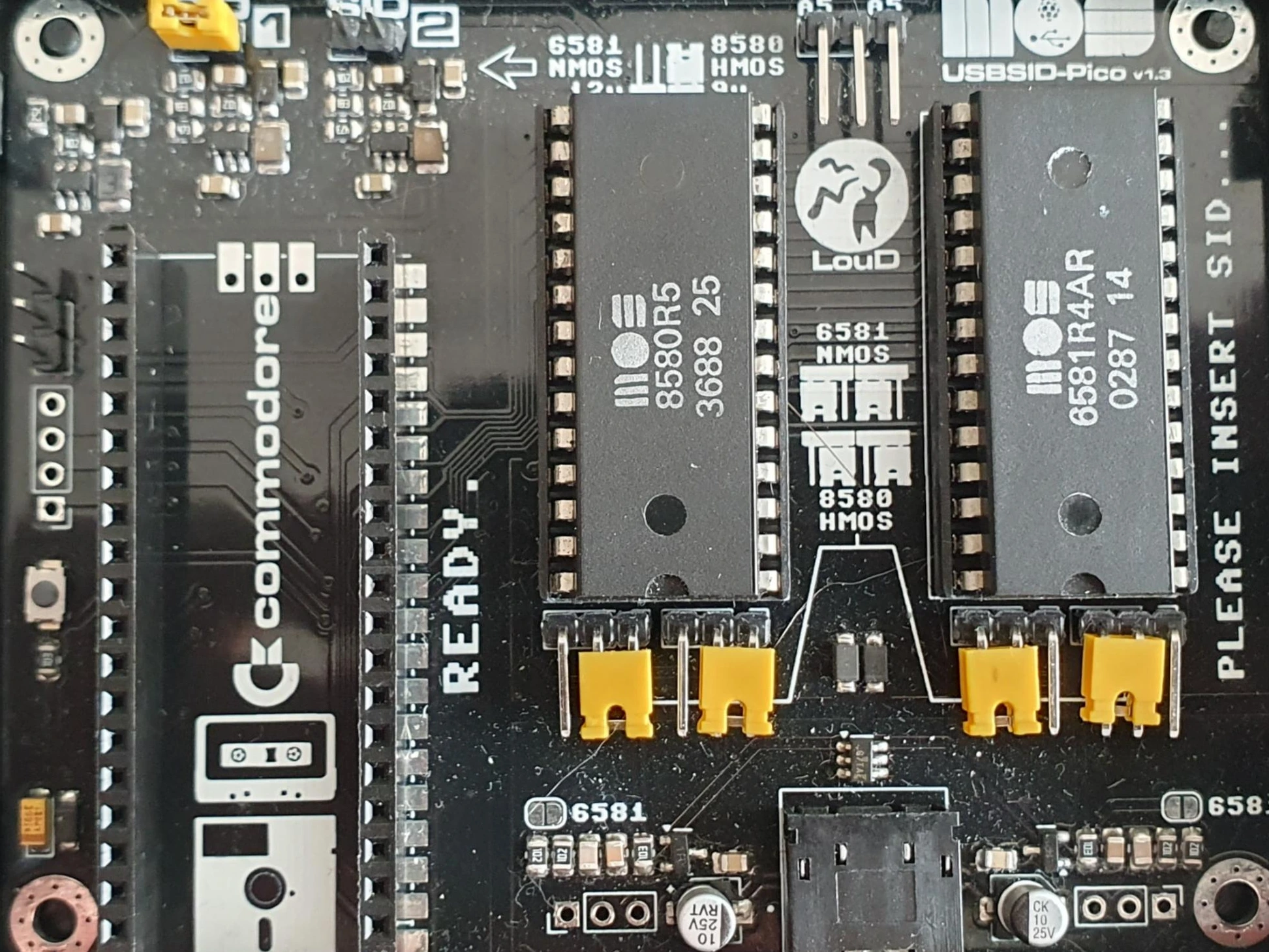

USBSID-Pico v1.3 Blue PCB (unsoldered)

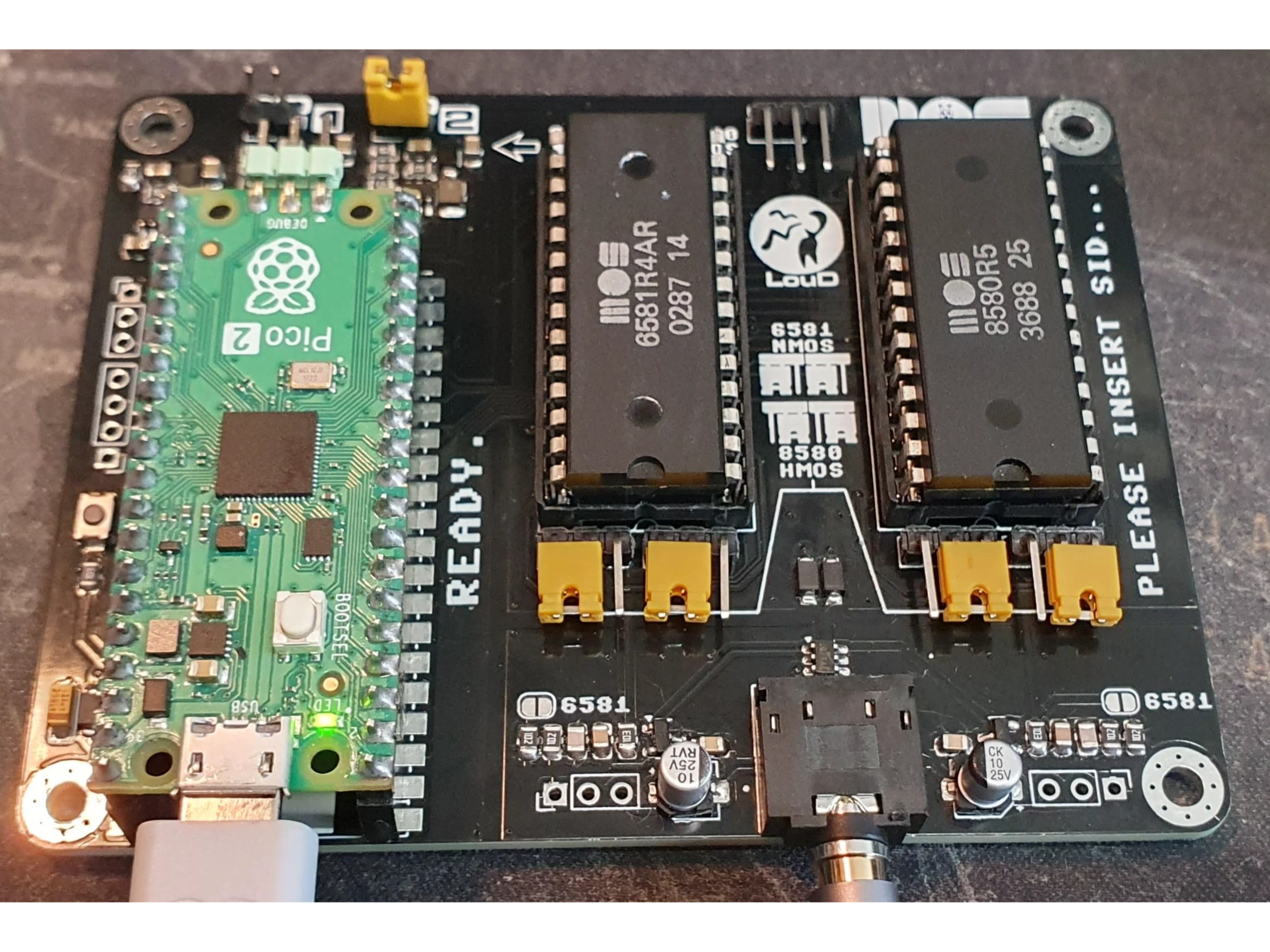

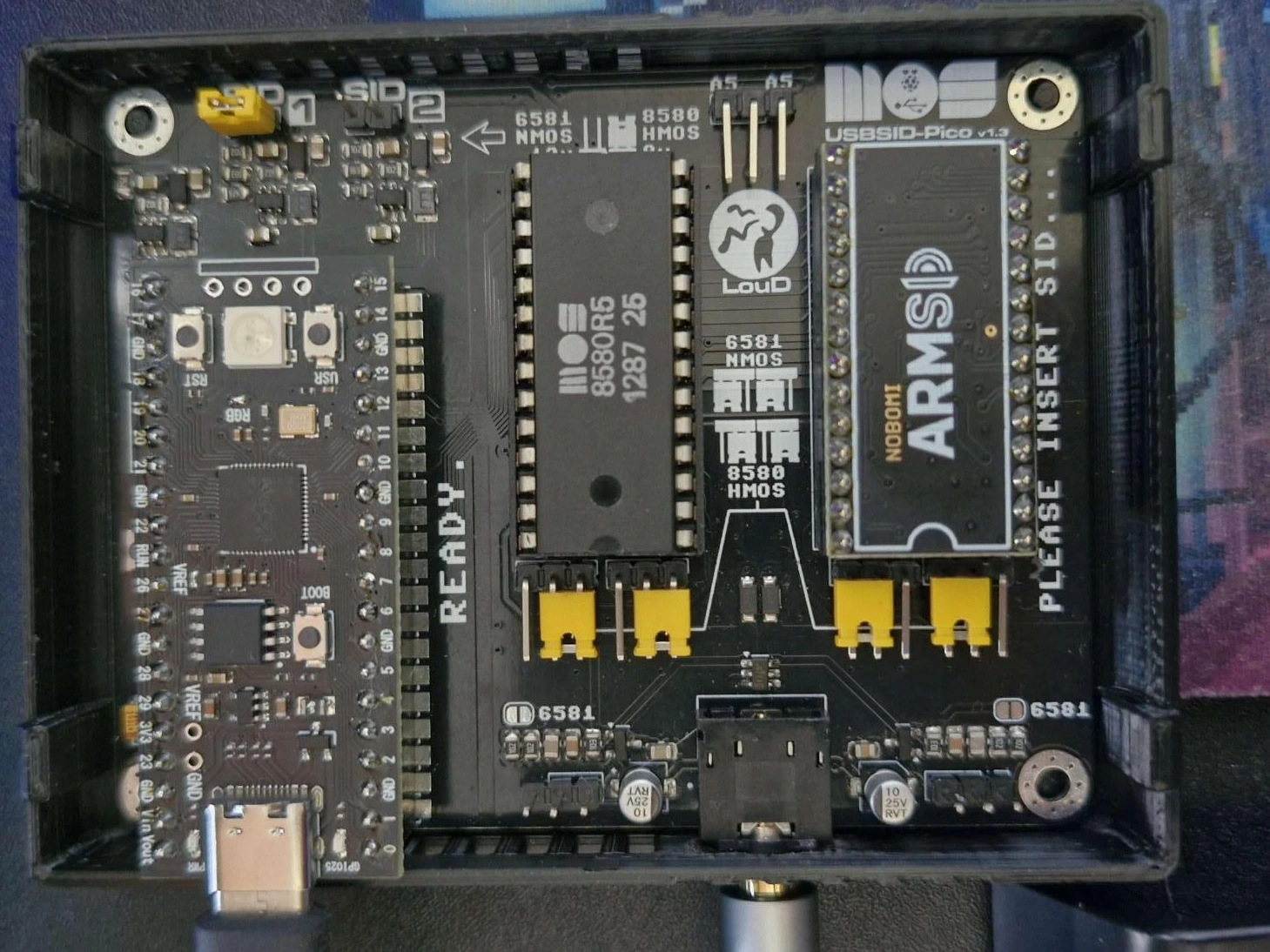

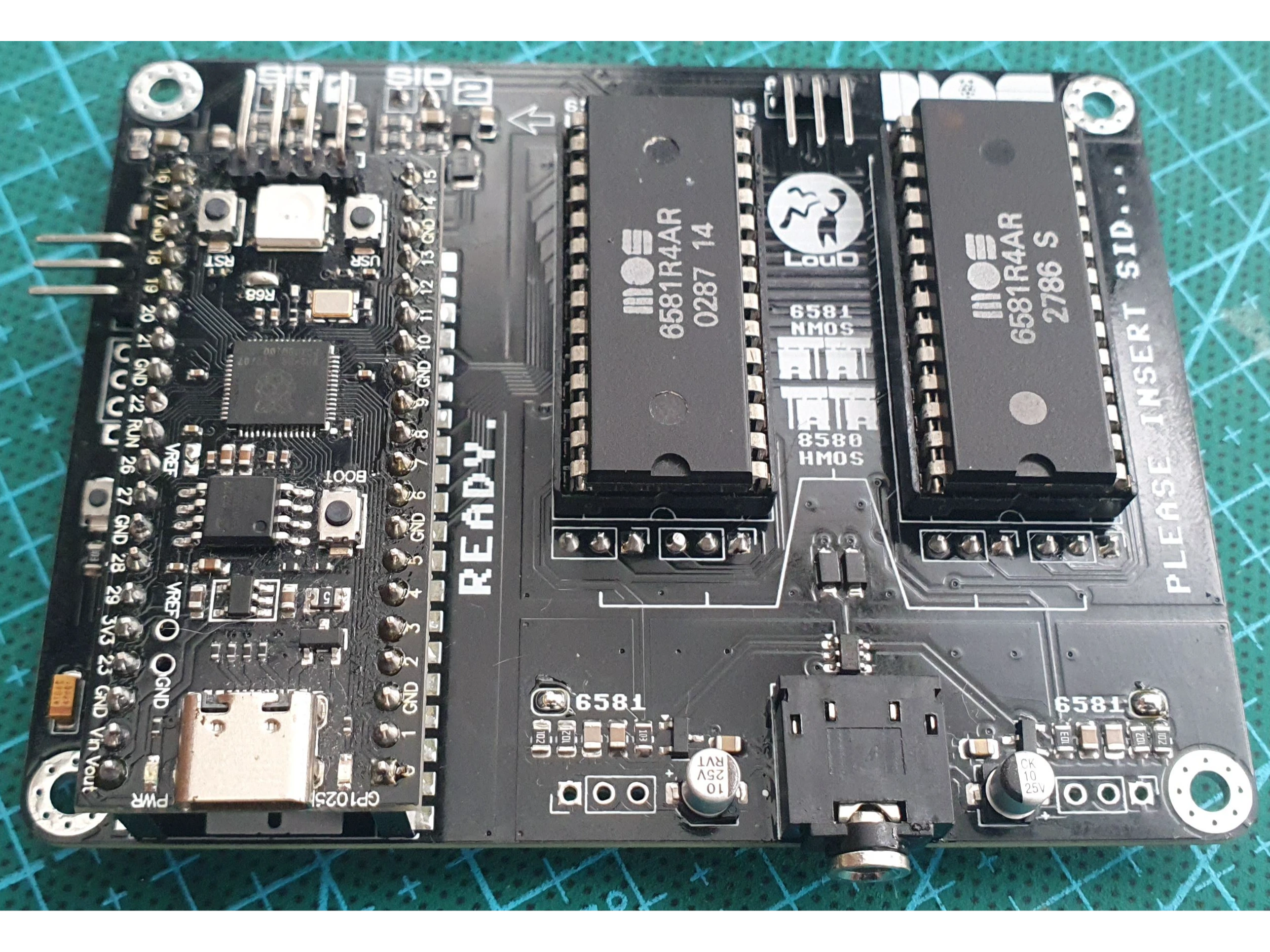

USBSID-Pico is a RaspberryPi Pico/PicoW (RP2040) & Pico2/Pico2W (RP2350) based board for interfacing one or two MOS SID chips and/or hardware SID emulators over (WEB)USB with your computer, phone, ASID supporting player or USB midi controller.

For more information check out the [official repo](https://github.com/LouDnl/USBSID-Pico)

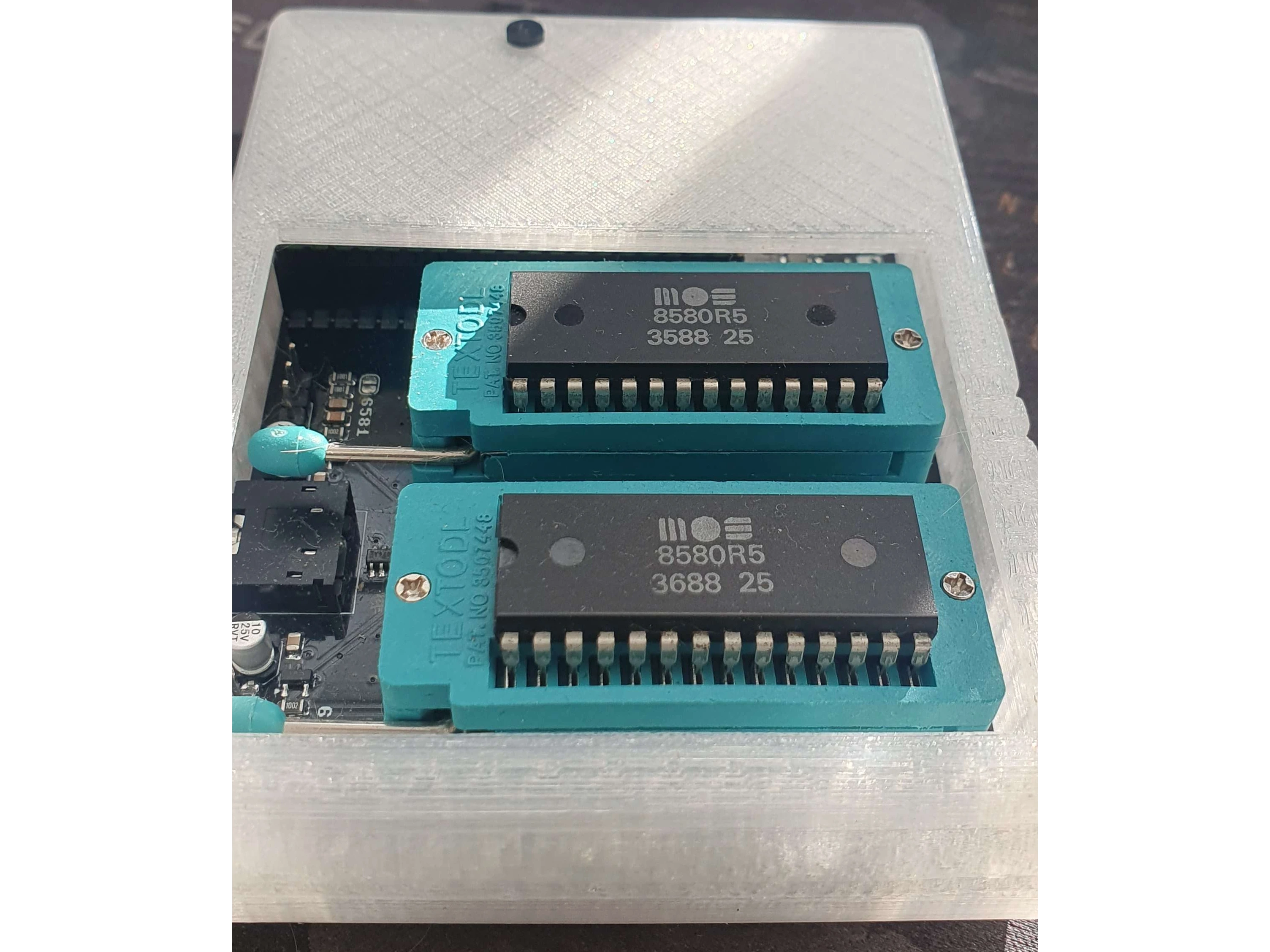

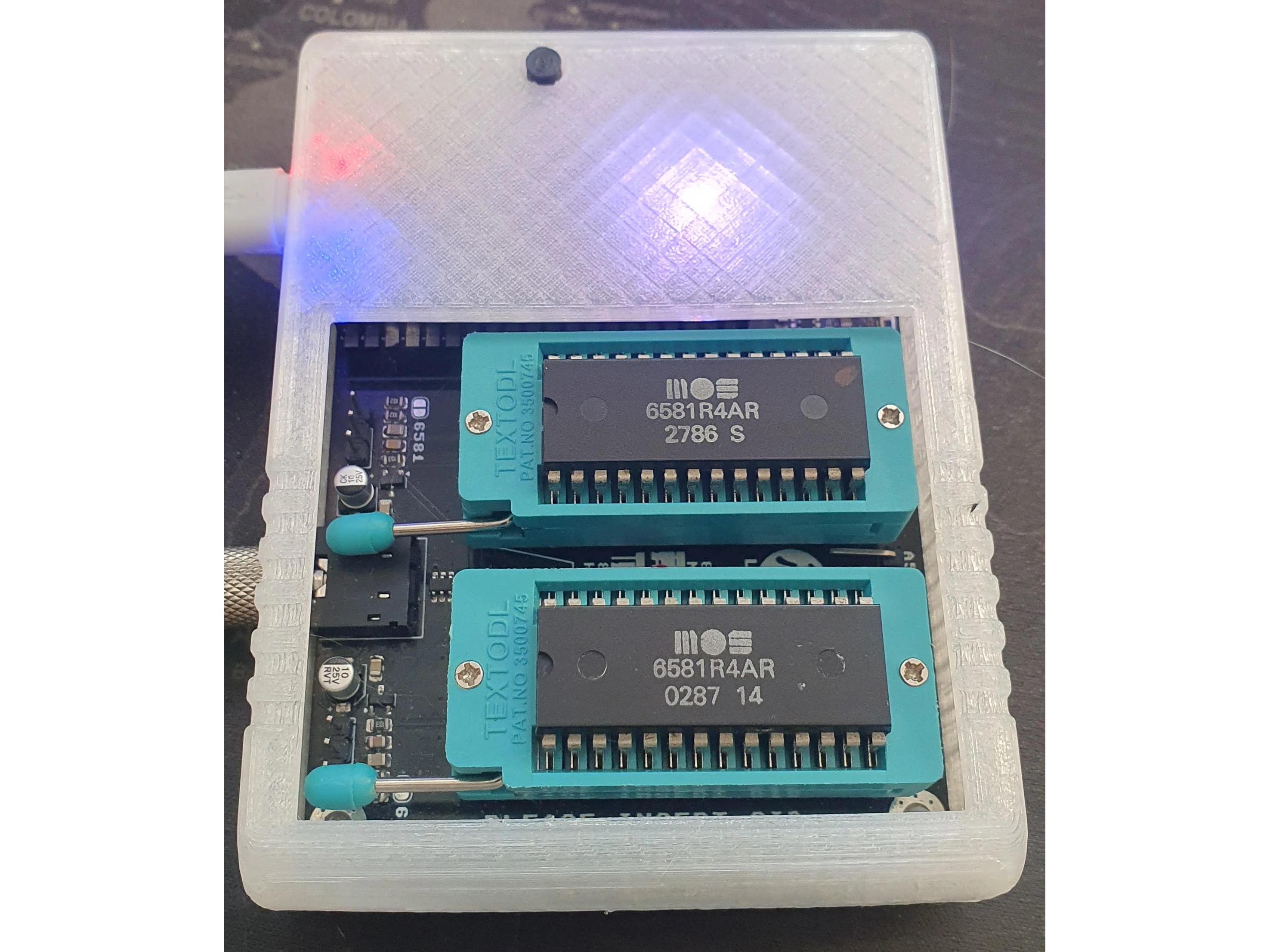

This product is a Do-It-Yourself SMD and through hole solder kit. It comes with an SMD and through hole part kit that you have to solder yourself. Please note the additional options for including a pico and/or 3d printed case.

Included in this kit:

- Bare blue PCB

- Set of SMD parts

- 1x audio jack port

- 2x 28-pin DIP wide sockets

- 2x 20-pin female dupont header

- to seat the pico (optional)

- 6 yellow 2-pin jumper caps

- Set of male dupont headers and their functionality

- 2x 3-pin vertical

- audio wires (optional)

- 5x 3-pin horizontal

- filter capacitor selection (requires jumper caps)

- A5 address wire (optional)

- 2x 2-pin vertical

- SID socket voltage selection (requires jumper caps)

- 1x 4-pin vertical

- future expension gpio (optional)

- 1x 3-pin vertical

- uart (optional)
