PicoGUS ISA PC/104 Gravis Ultrasound Sound blaster

*Shipment to United States is resumed:

Now European courier shipment meets the requirements of Executive Order 14324, which requires the seller to declare the goods as commercial merchandise, collect import taxes, and submit them to U.S. Customs and Border Protection.

But the shipment is obviously more expensive, but it includes all U.S. customs taxes and the additional cost of processing a shipment as commercial merchandise, as required by current U.S. law.*

#### What is it?

ISA and PC/104 sound card emulation on the Raspberry Pi Pico's RP2040 microcontroller.

This PicoGUS version can resemble:

1. Gravis Ultrasound (GUS) - the primary focus of PicoGUS, hence the name
2. Sound Blaster 2.0
3. AdLib (OPL2)
4. Tandy 3-voice
5. CMS/Game Blaster*

USB ports are not available in this version, due to the tiny size design.

#### Why did you make it?

There are a high number of PC computer users that have

uncommon form factor computer cases, where traditional

ISA sized sound cards can´t be used.

This version of PicoGUS is designed intentionally to

be an all-in-one solution; its size is the smallest as possible,

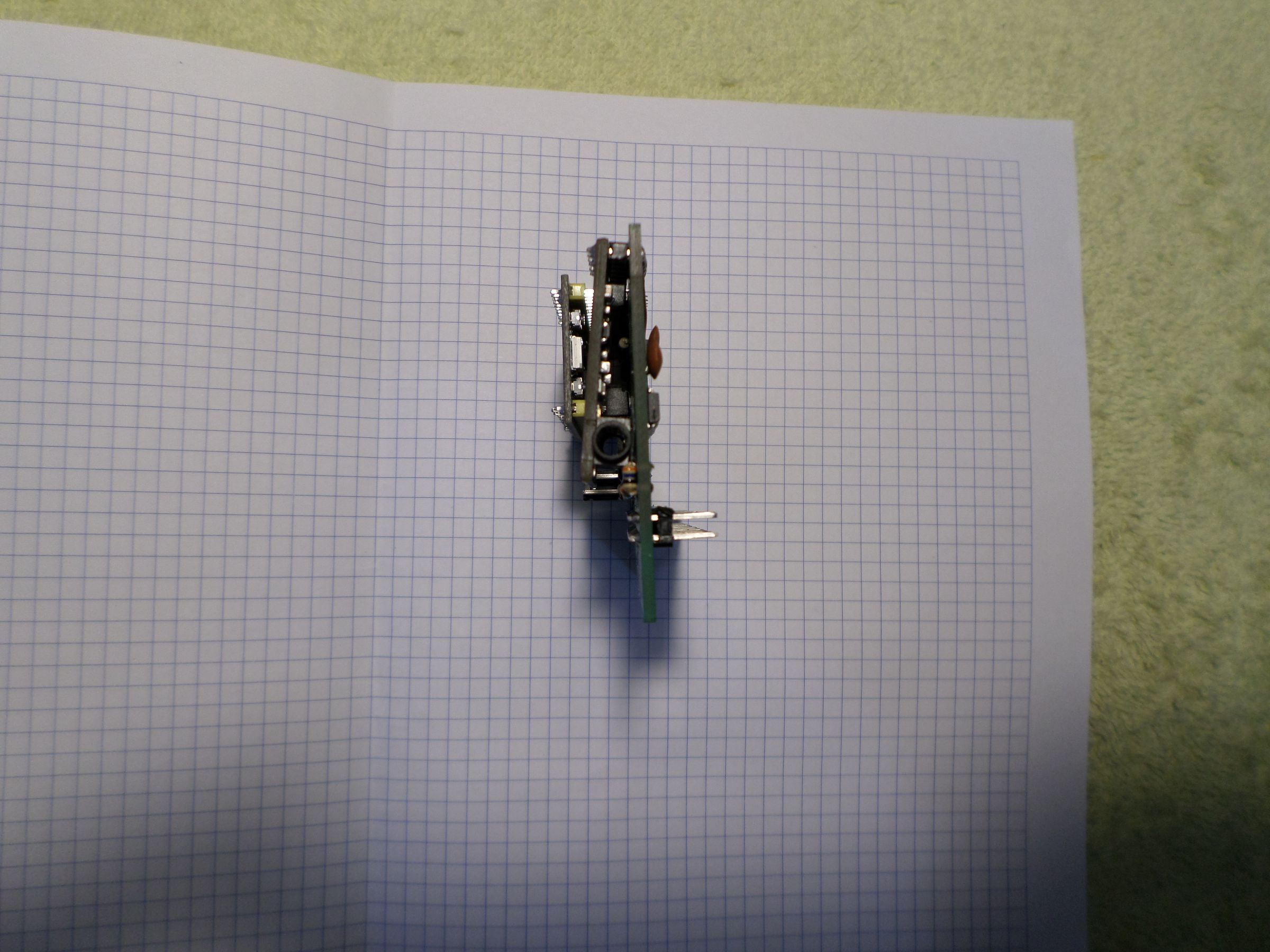

only 81 mm (width) x 49 mm (height), a very low profile

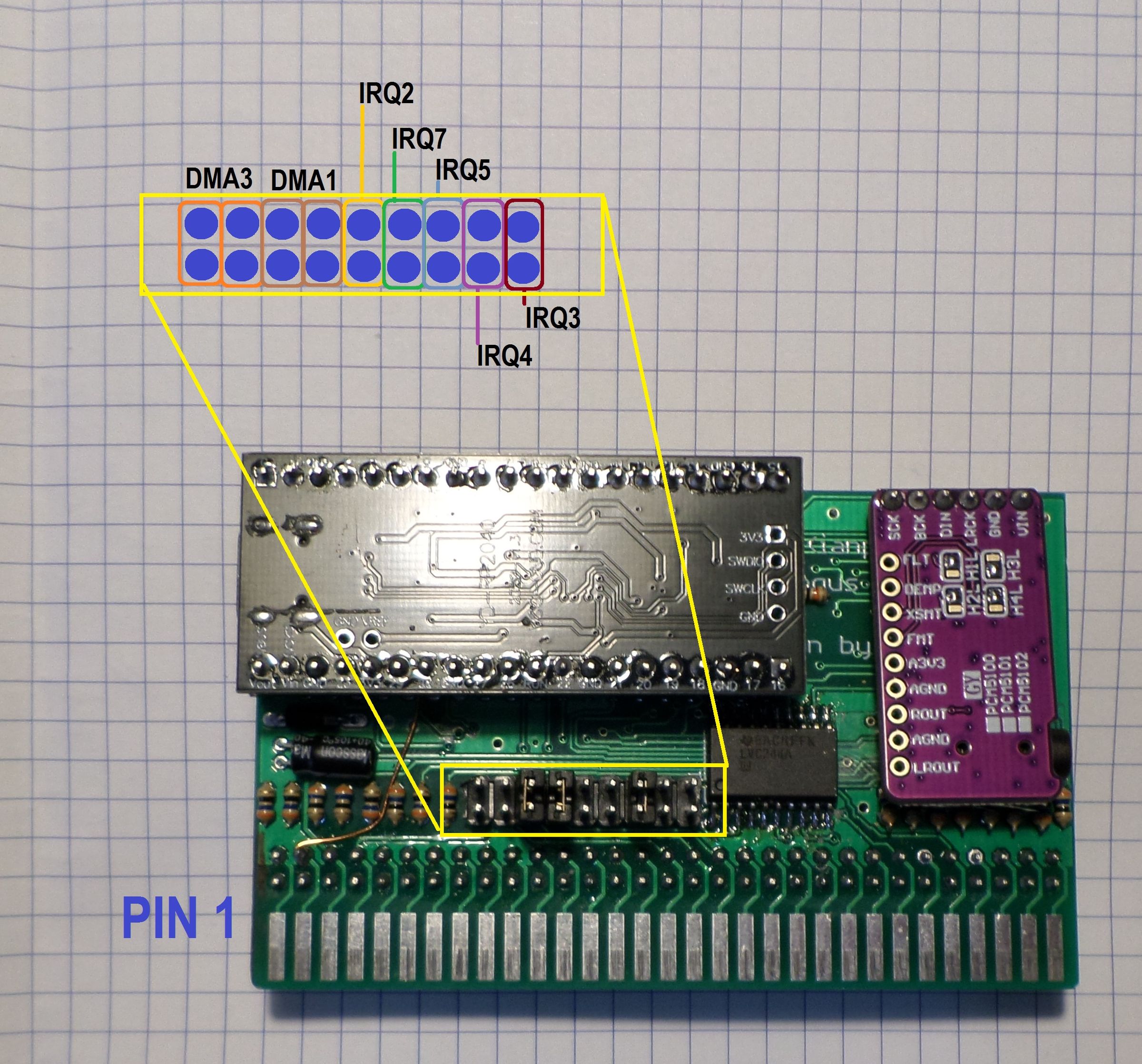

It provides standard 8 bit ISA edge connector and

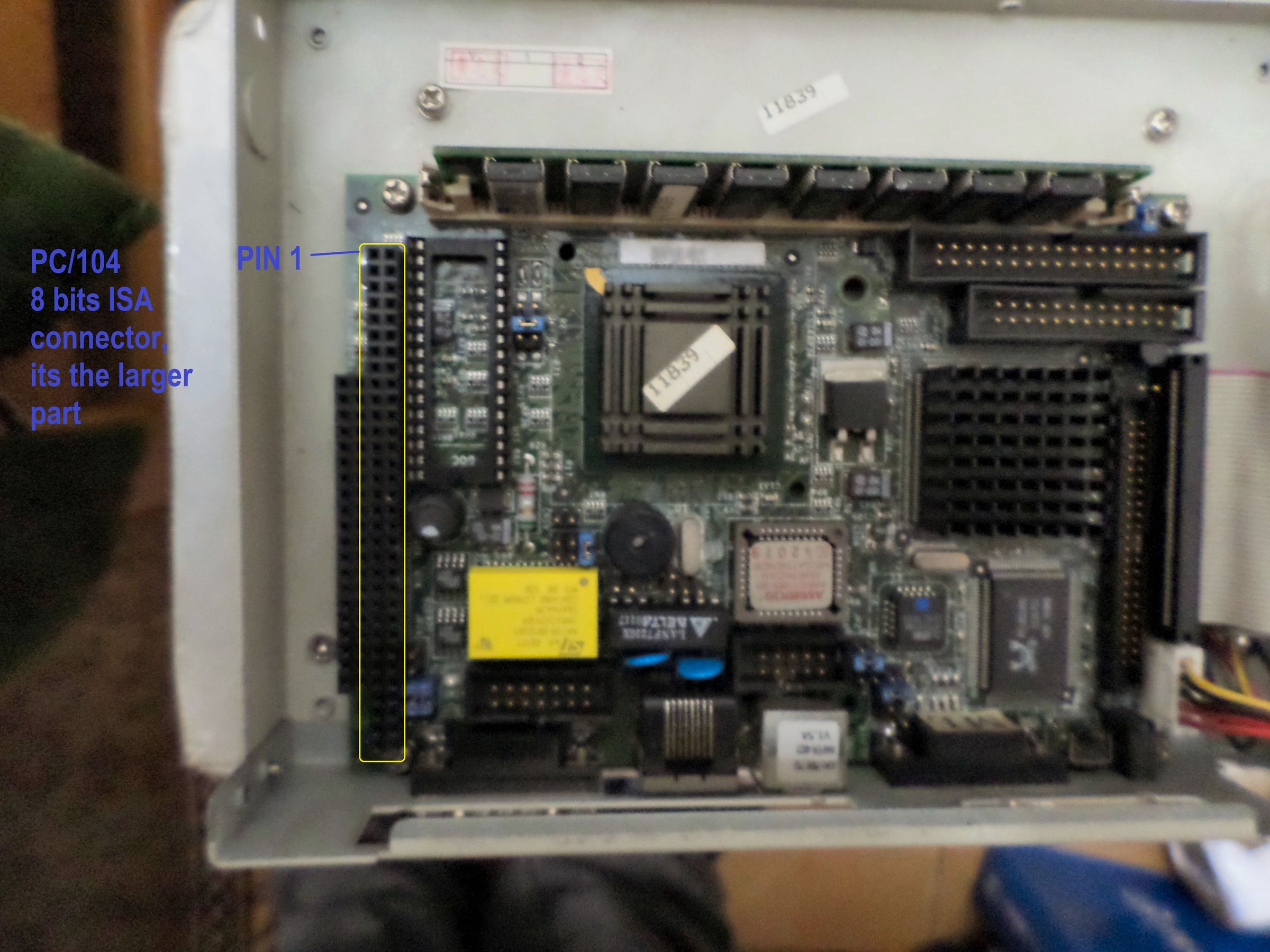

PC/104 connector at once,

in the same piece of hardware!

You can acquire one of these, and use it in your

tiny single board computer,

or in your full sized standard one.

#### What makes it special?

Tiny size, full compatibility with PicoGUS project,

and its low price for fully assembled and tested units.

The small size also helps the delivery in any part of the

world, taking into account the most demanding courier systems

of some specific countries, that present problems for

medium to huge sized packets.

As well, the RP2040 controller is provided in a detachable

manner, in order to replace it easily, update it manually,

or use the RP2040 for another purposes.

The Raspberry Pi Pico microcontroller is provided,

this is a fully assembled product.

#### Product videos

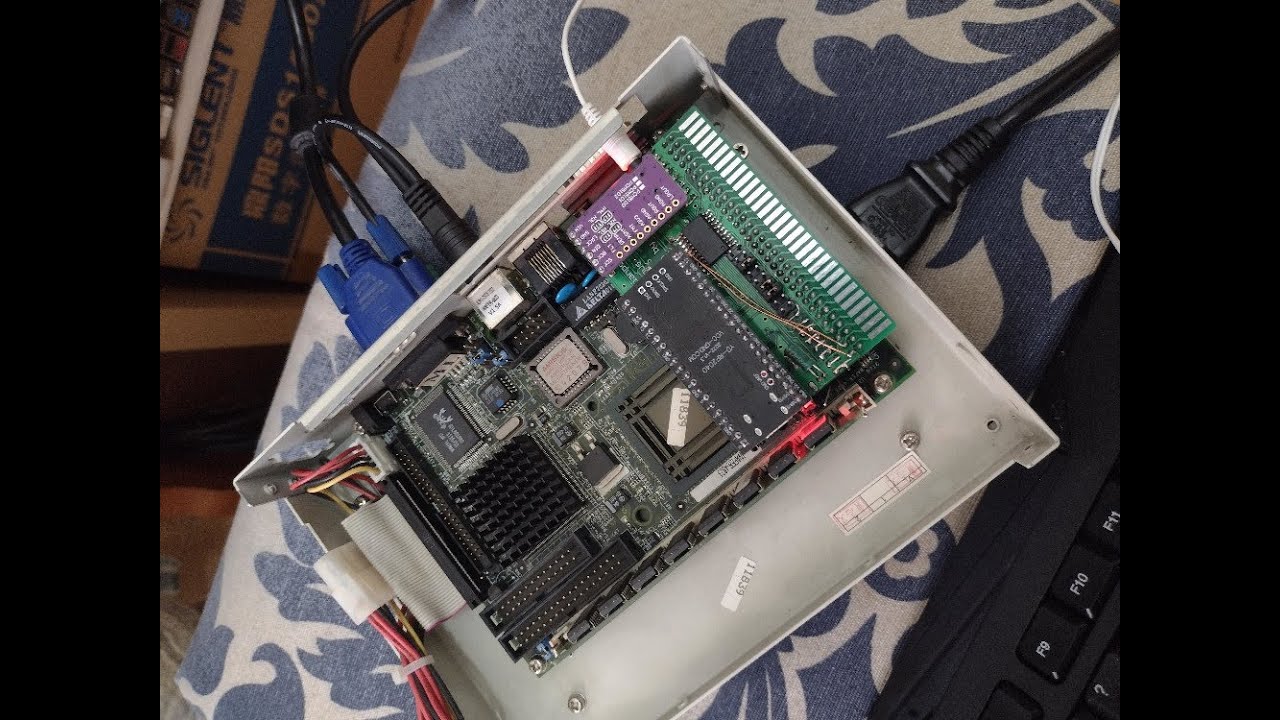

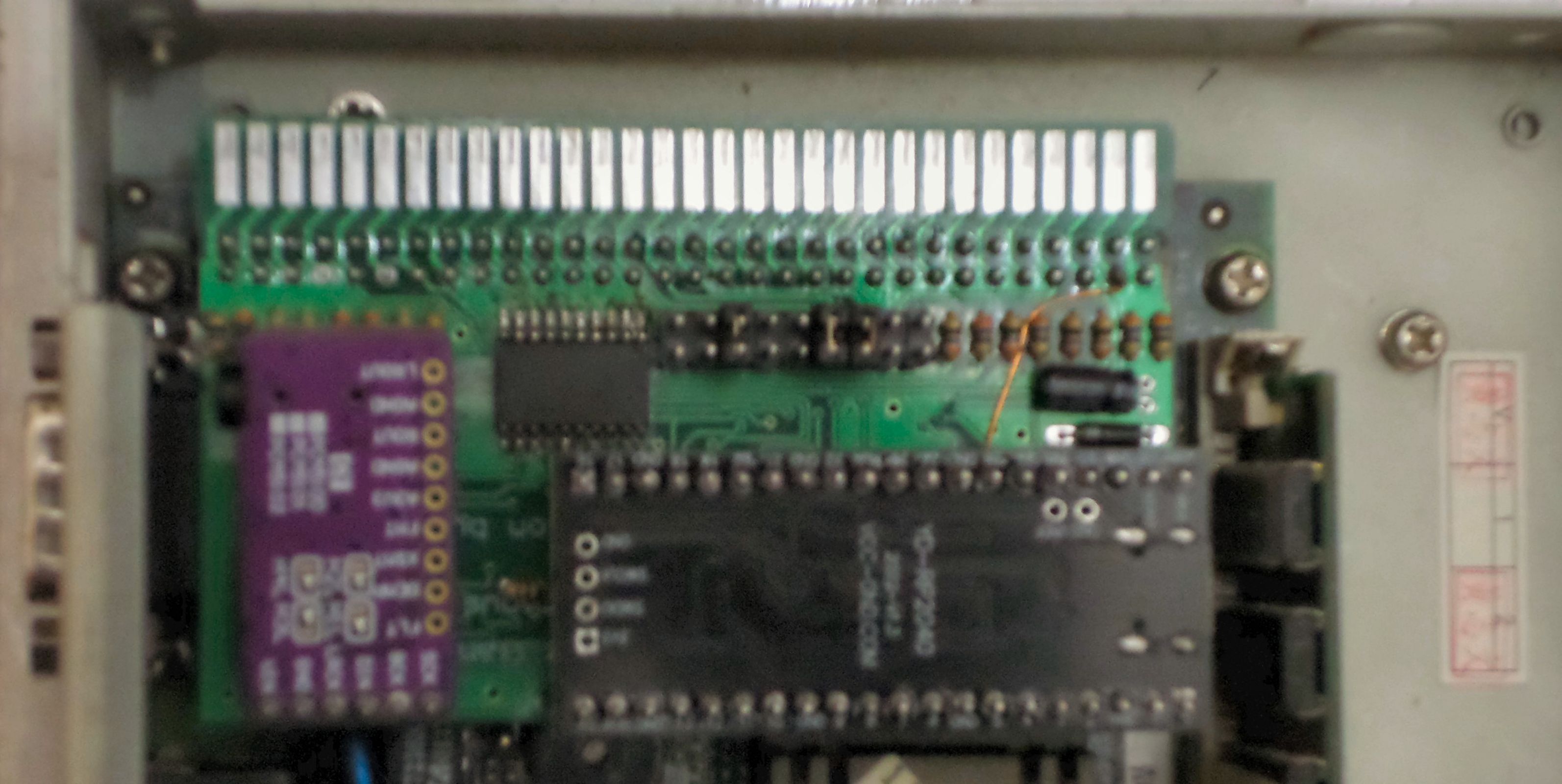

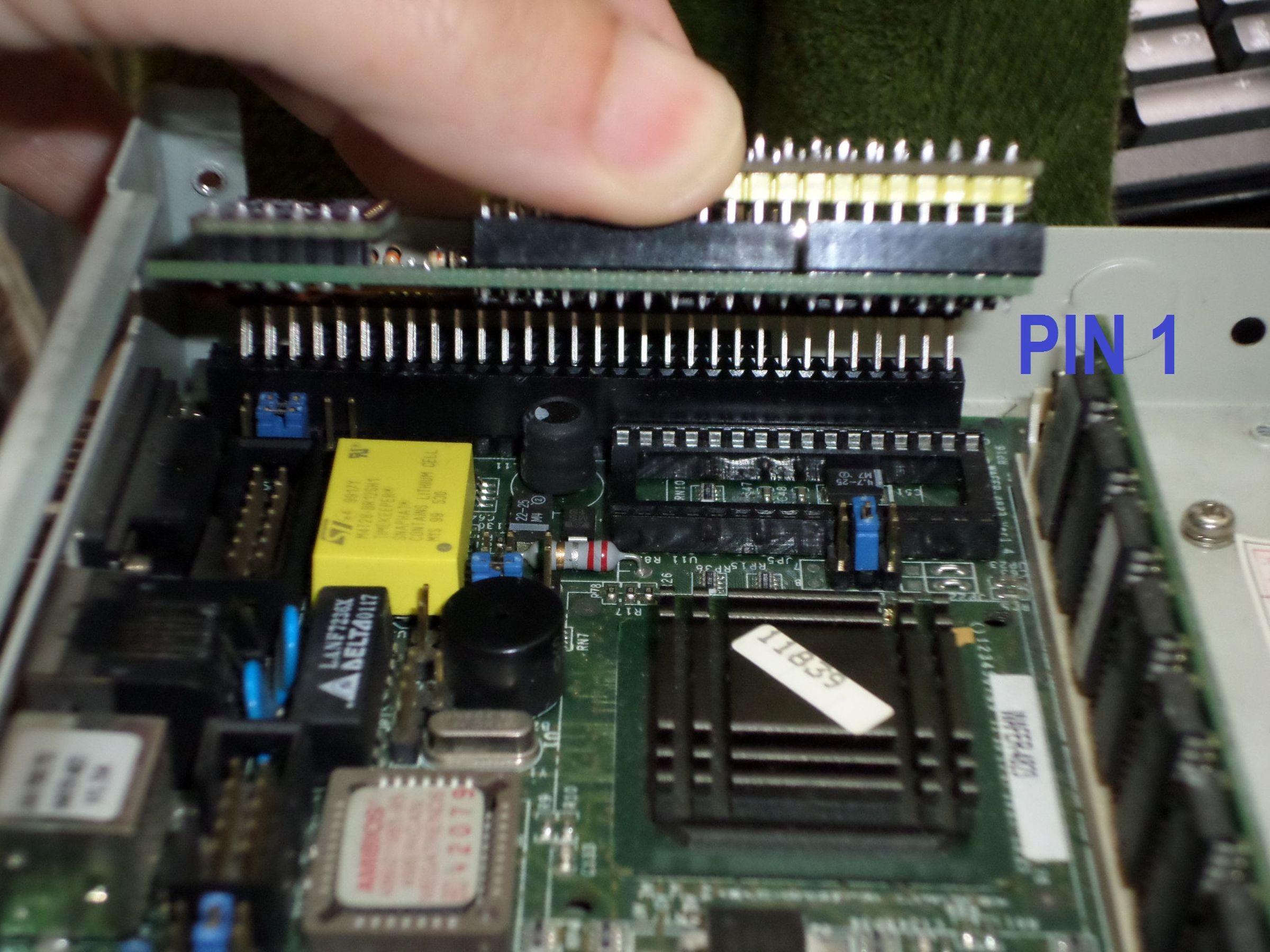

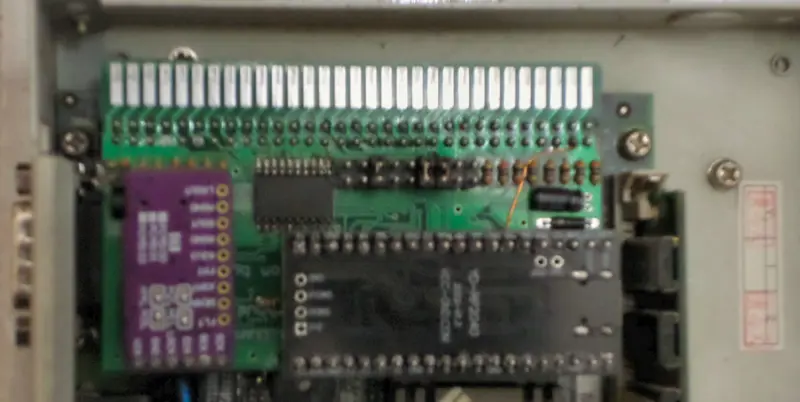

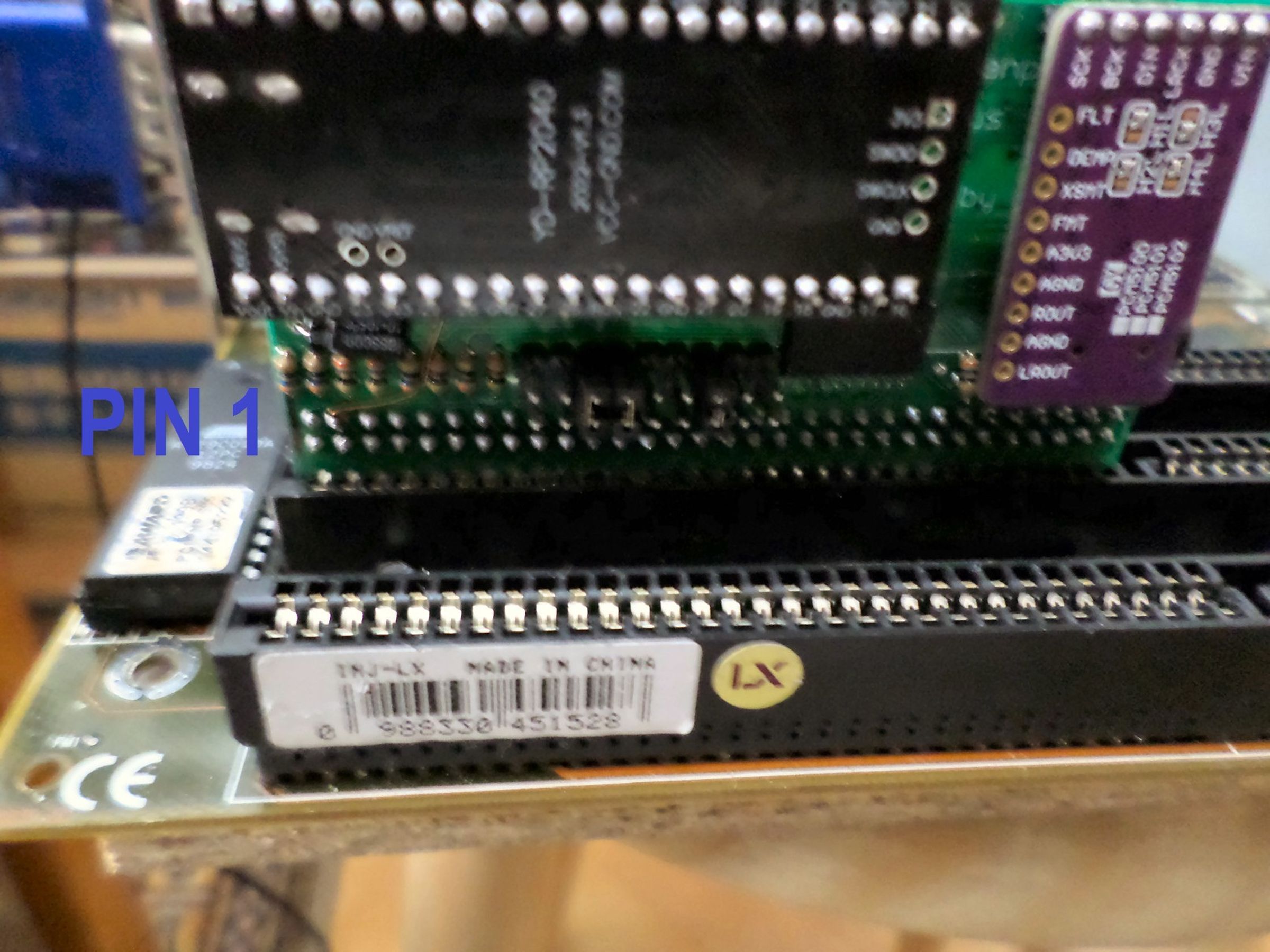

Used in a PC/104:

https://www.youtube.com/watch?v=VqEt7l8WC0k

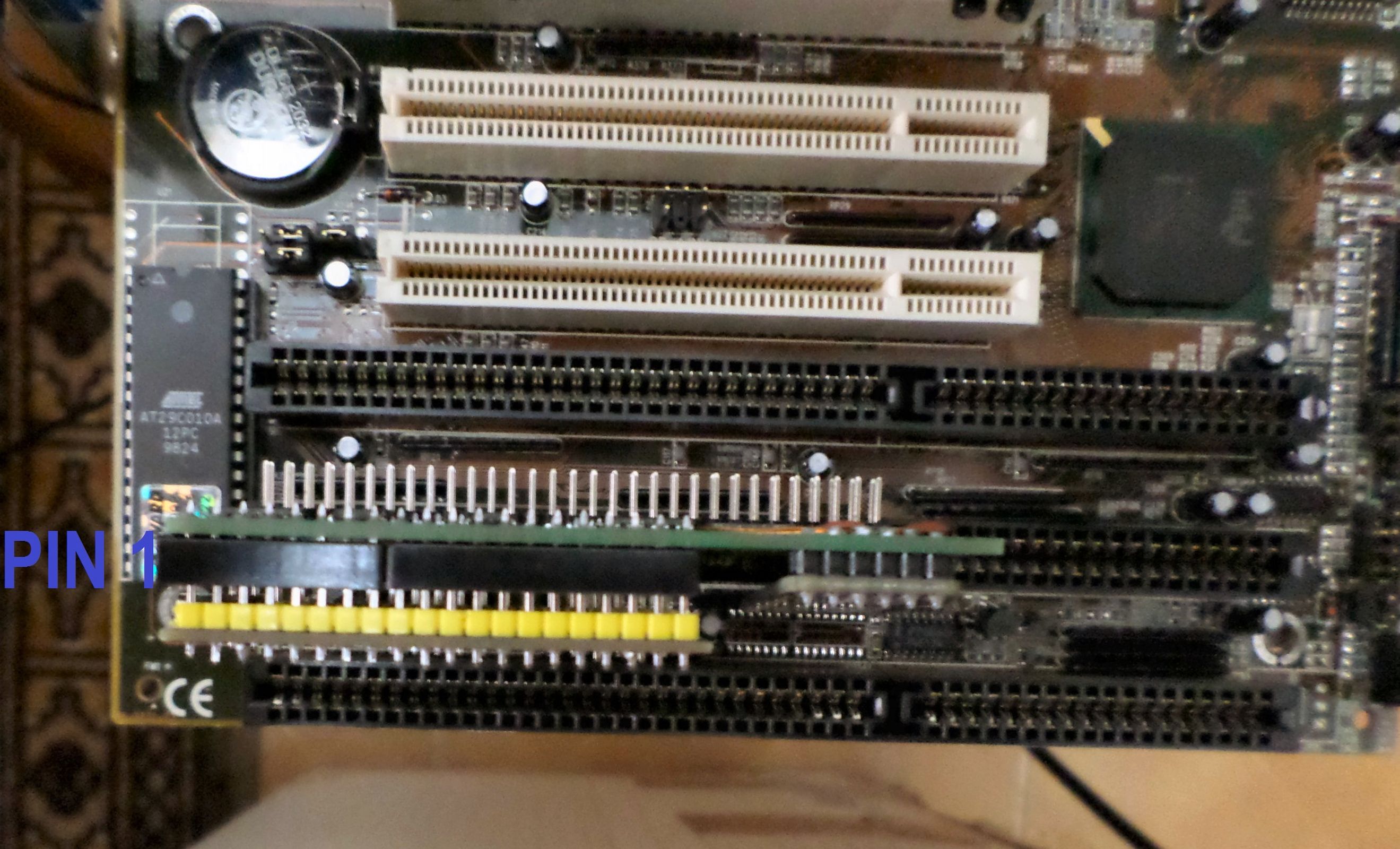

Used in Pentium 2 standard sized motherboard:

https://www.youtube.com/watch?v=Kr-CWUyaokQ

#### Installation and usage manual

https://drive.google.com/file/d/1It30QMcoY6Il9u5xYMUYFa6Y_fpyk7fO/view?usp=share_link
