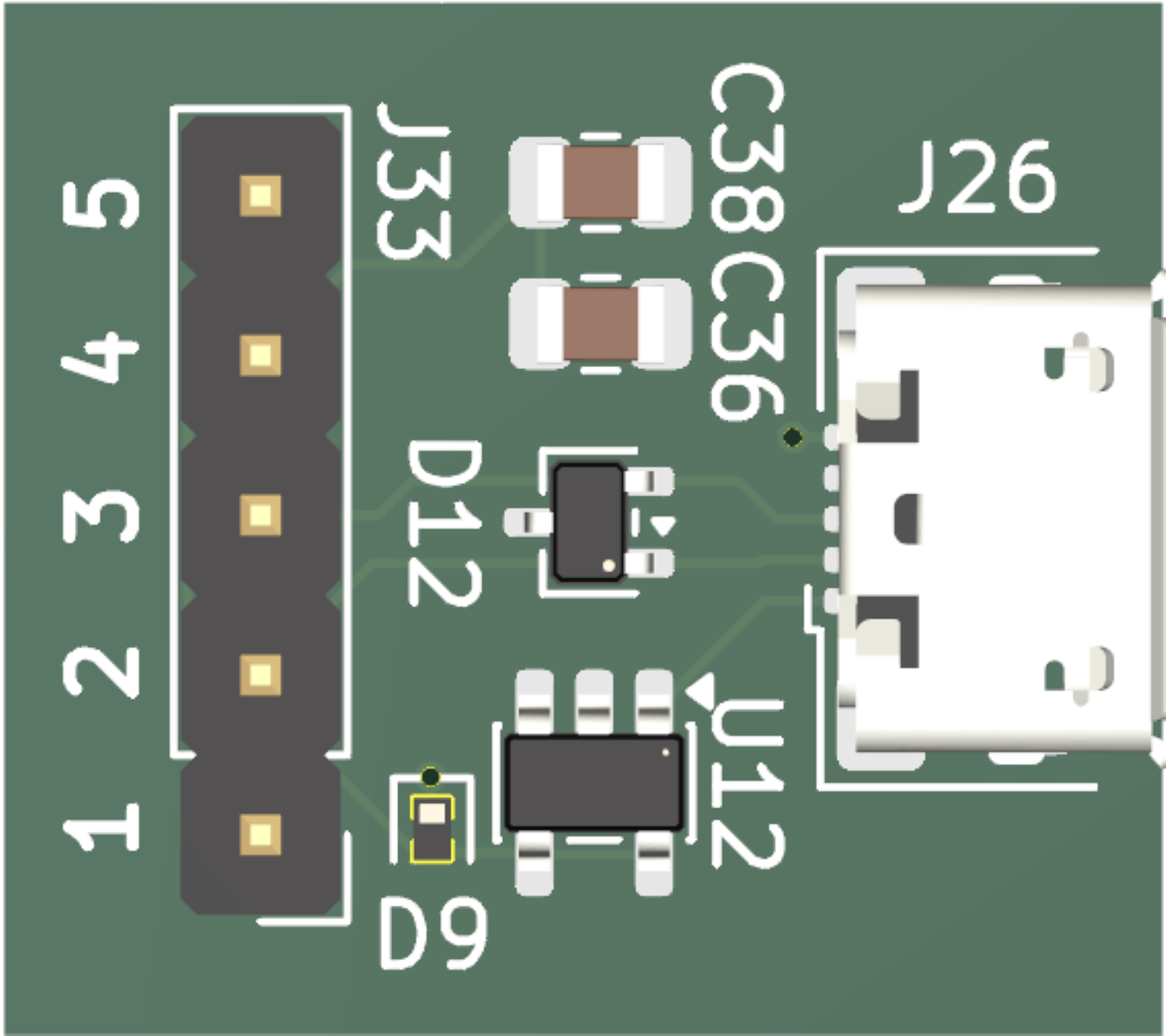

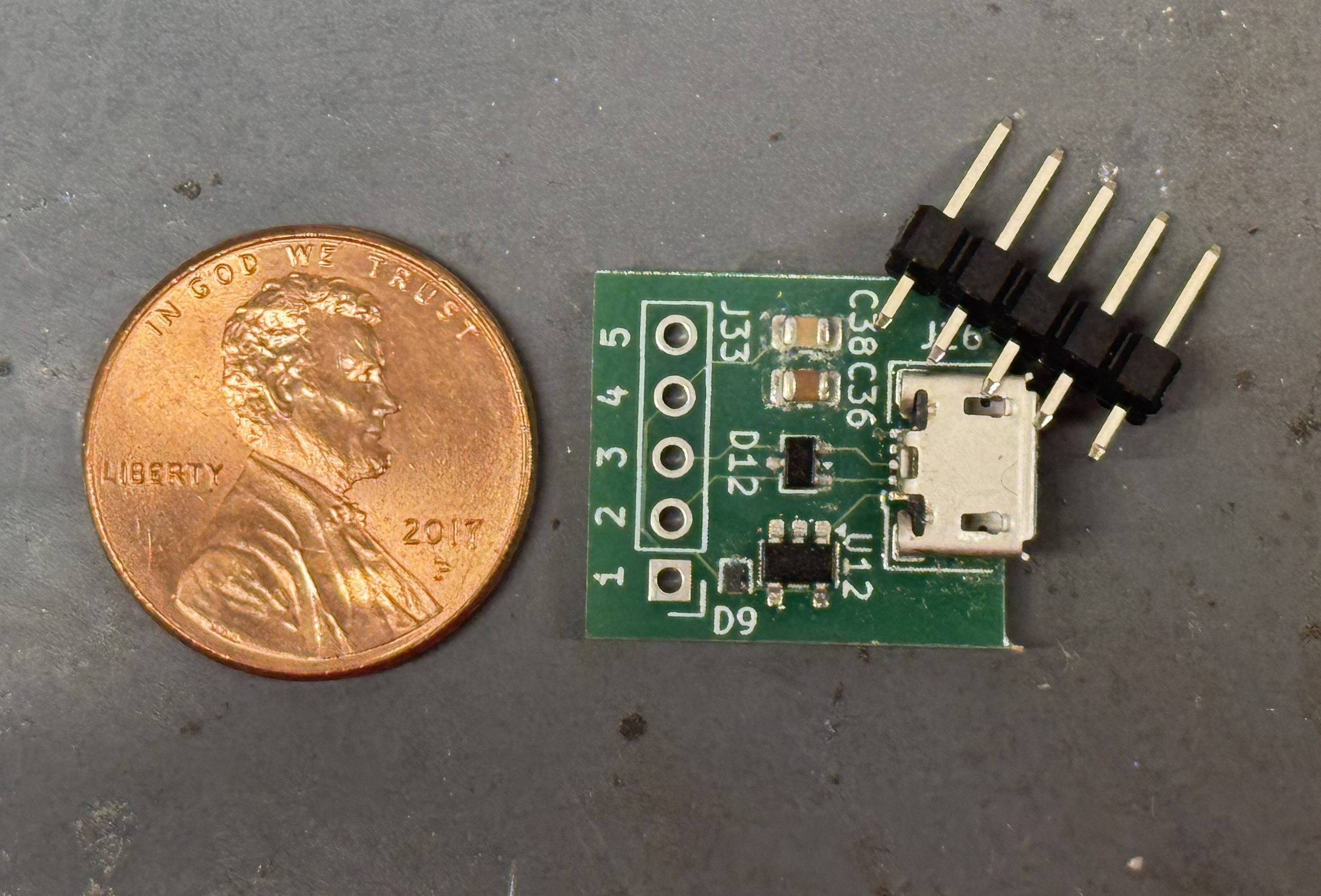

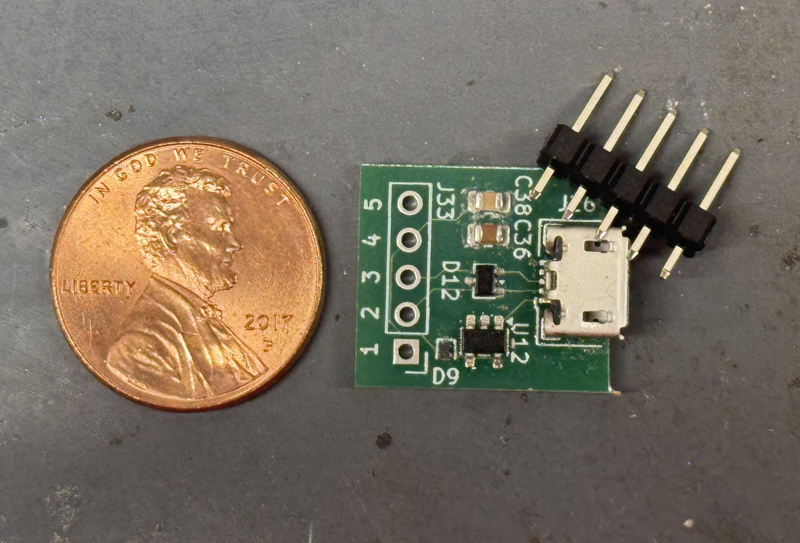

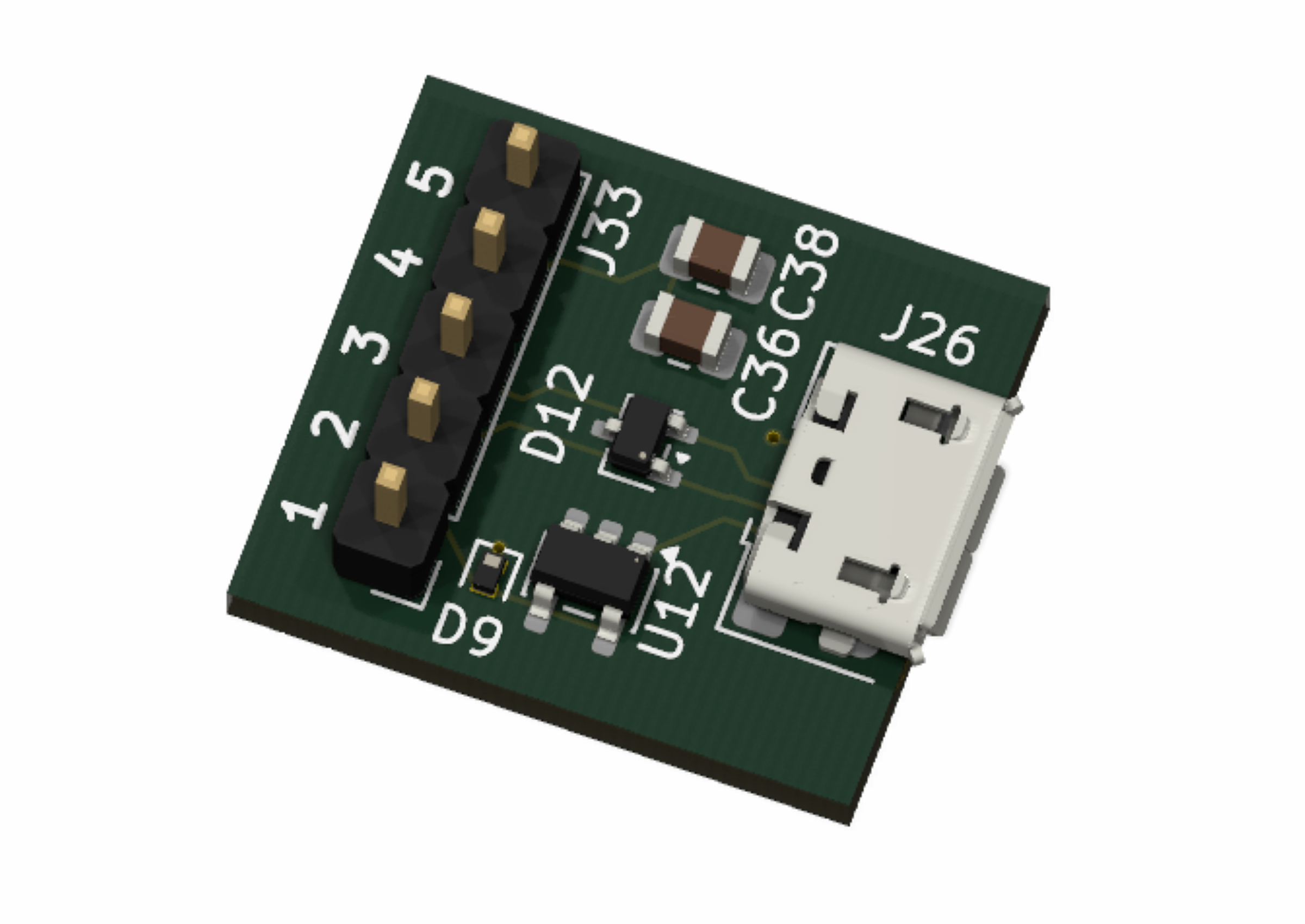

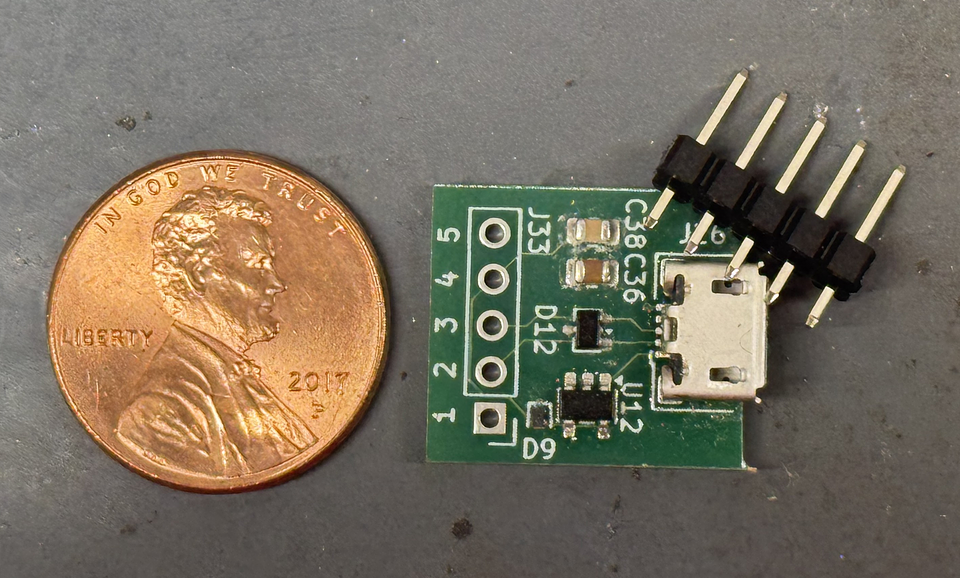

Micro USB-B Breakout Module

This USB-C Breakout Module features pin headers for VDD (pin 4), GND (pin 1 & 5), and the differential data pairs (D- pin 2, D+ pin 3). The module includes a AP2171W power switch, configuring it as a 5v host. The module features comprehensive ESD protections, including diodes on VBUS and data pairs, a 10uF capacitor, and the power switch.

This module takes out the tedious, unpredictable troubles that come from USBs, and will let you streamline and debug your inventions & innovations.

While the comprehensive ESD protections, quality boards & clear silkscreen all make this board valuable, there is one thing that stands out from all the rest. All products include a datasheet, giving in depth documentation, from applications & pin outs to notes & debugging, it is the backbone of any hardware project.

We build quality products, designed by hobbyists for hobbyists, for easy development, effortless integrator, and real progress, innovation and learning.
