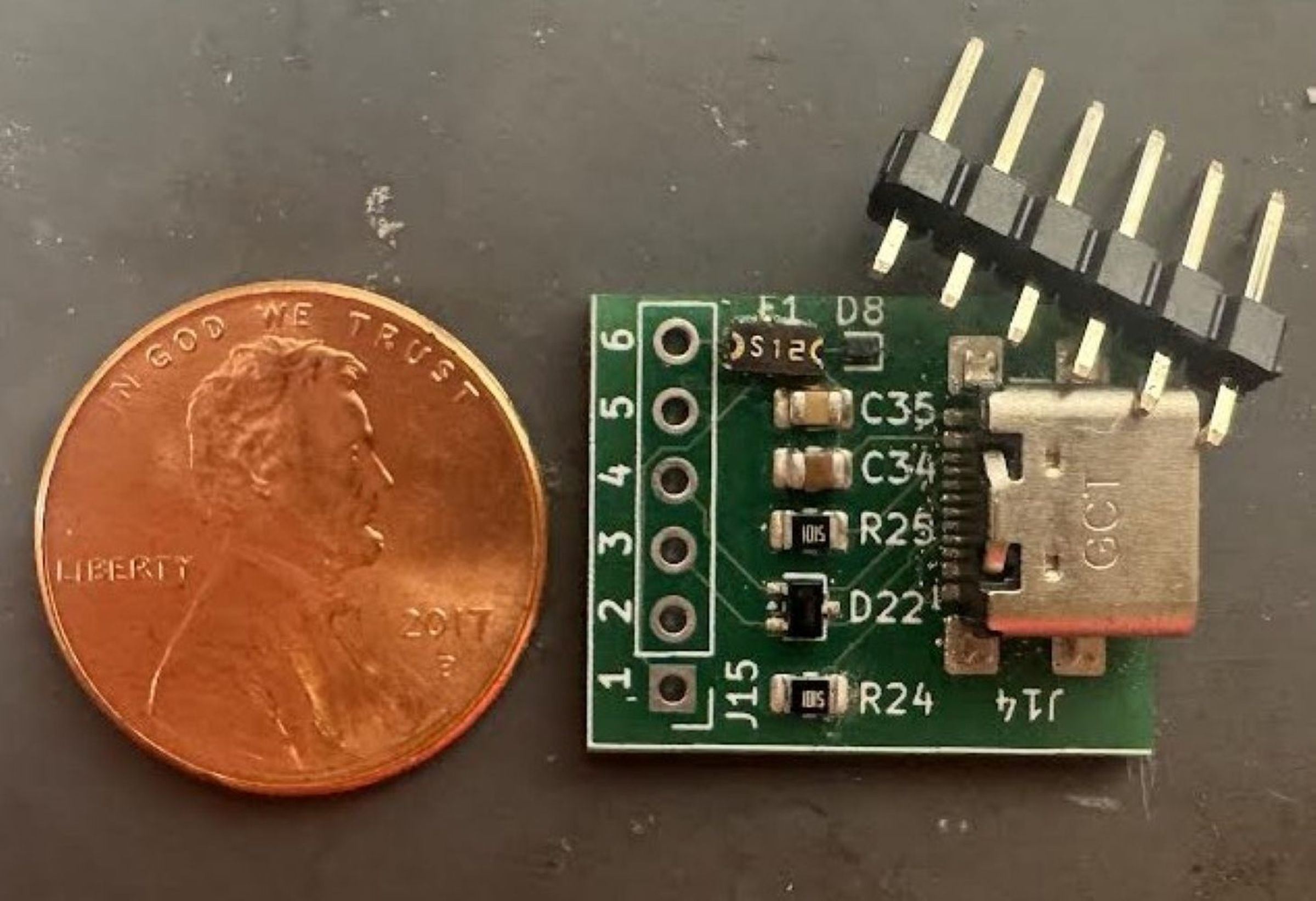

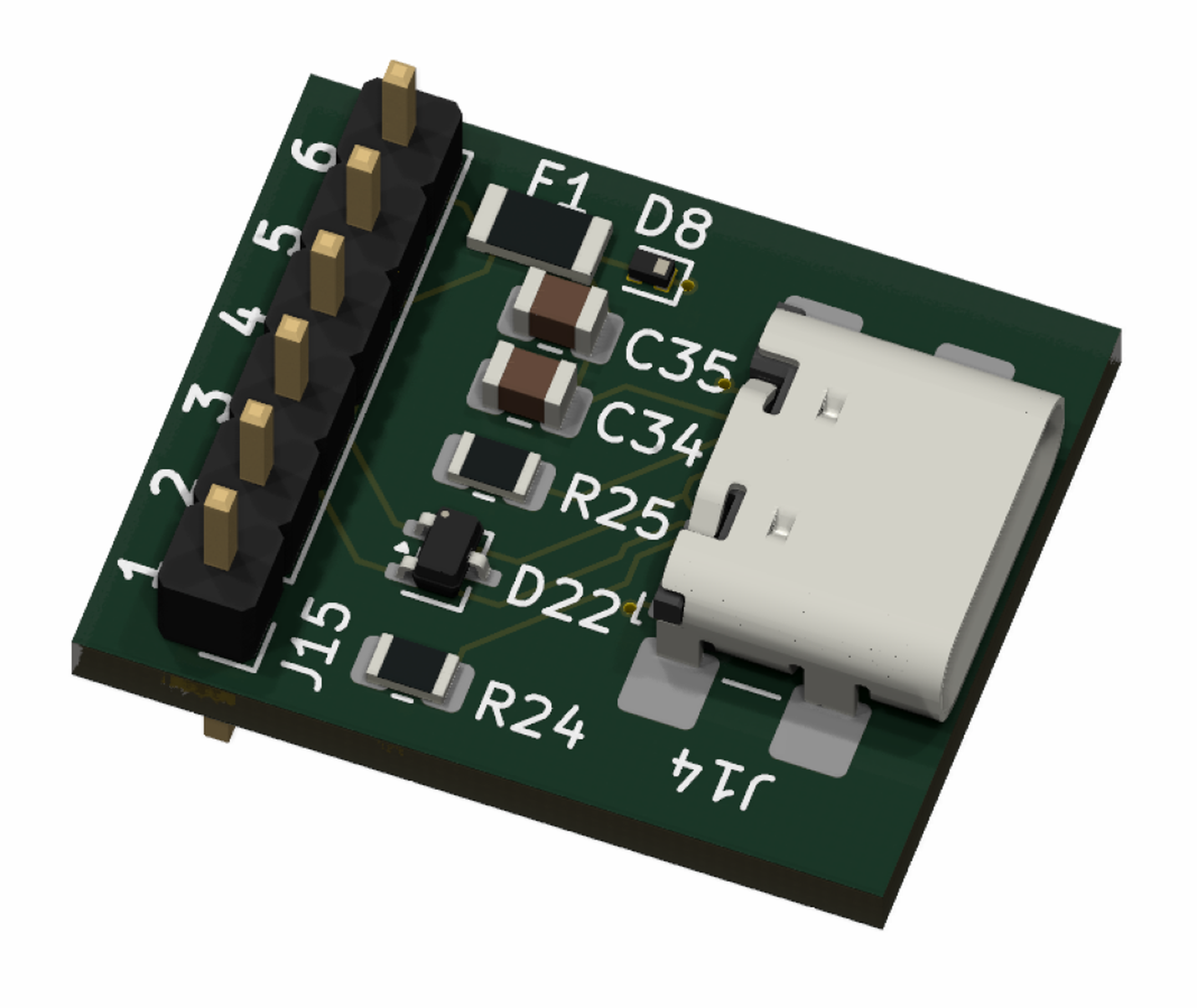

USB-C Breakout Module (Built in ESD, Plug & Play)

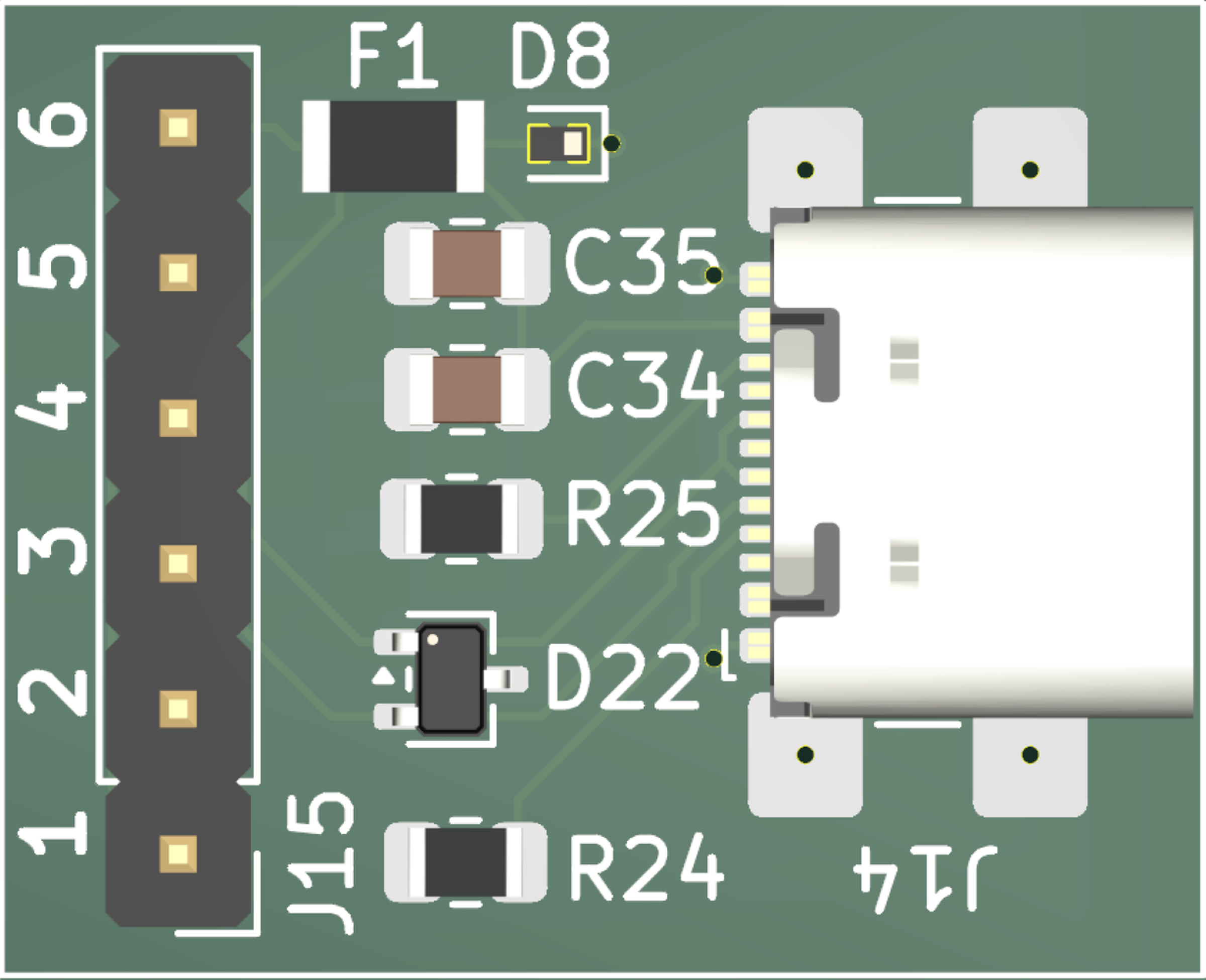

This USB-C Breakout Module features pin headers for VDD (pin 1 & 6), GND (pin 2 & 5), and the differential data pairs (D- pin 3, D+ pin 4).

The module is hard wired with 5.1k CC resistors, configuring it as a 5v slave. The module

features comprehensive ESD protections, including diodes on VBUS and data pairs, a polyfuse

and a 10uF capacitor.

This module takes out the tedious, unpredictable troubles that come from

USBs, and will let you streamline and debug your inventions & innovations.

While the comprehensive ESD protections, quality boards & clear silkscreen all make this board valuable, there is one thing that stands out from all the rest. All products include a datasheet, giving in depth documentation, from applications & pin outs to notes & debugging, it is the backbone of any hardware project.

We build quality products, designed by hobbyists for hobbyists, for easy development, effortless integrator, and real progress, innovation and learning.
