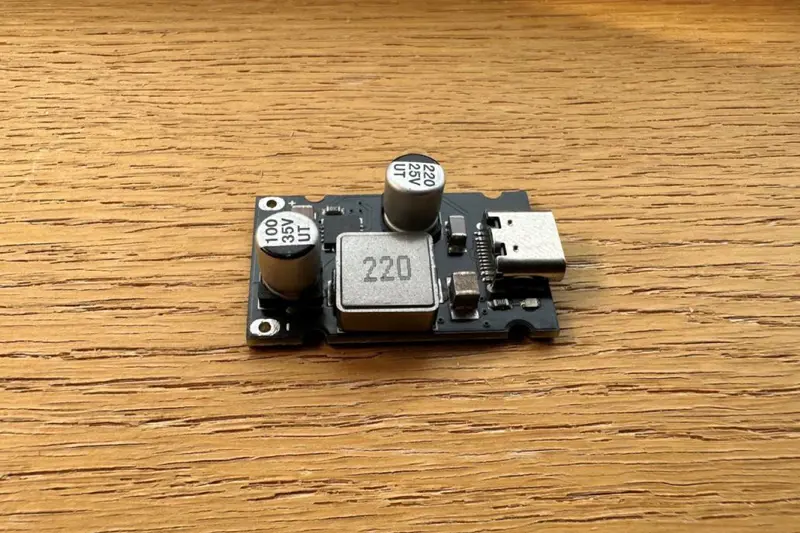

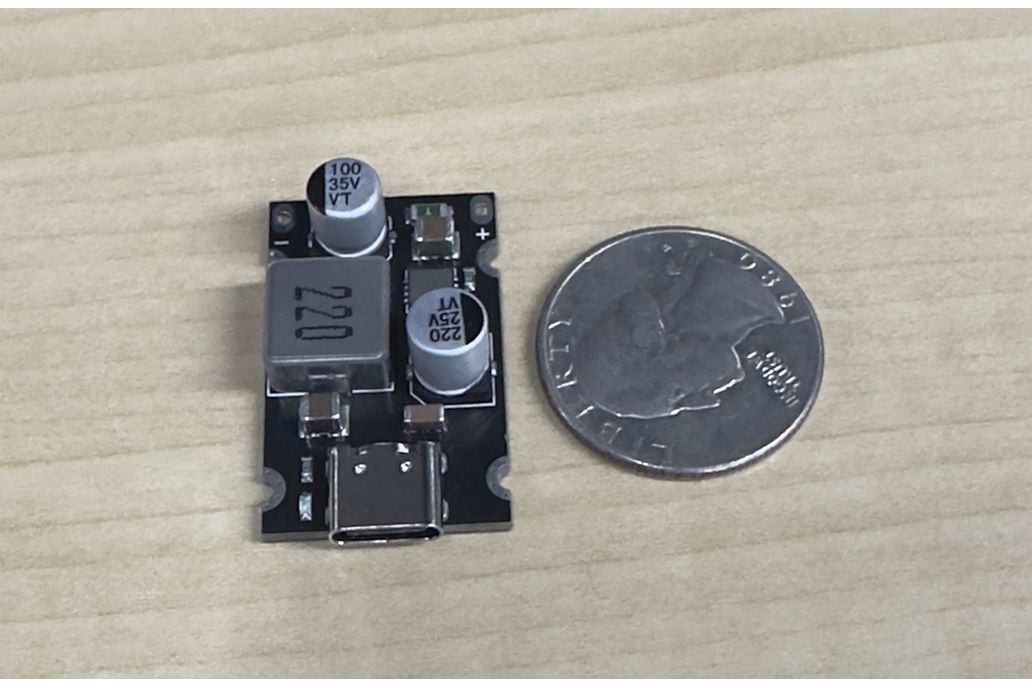

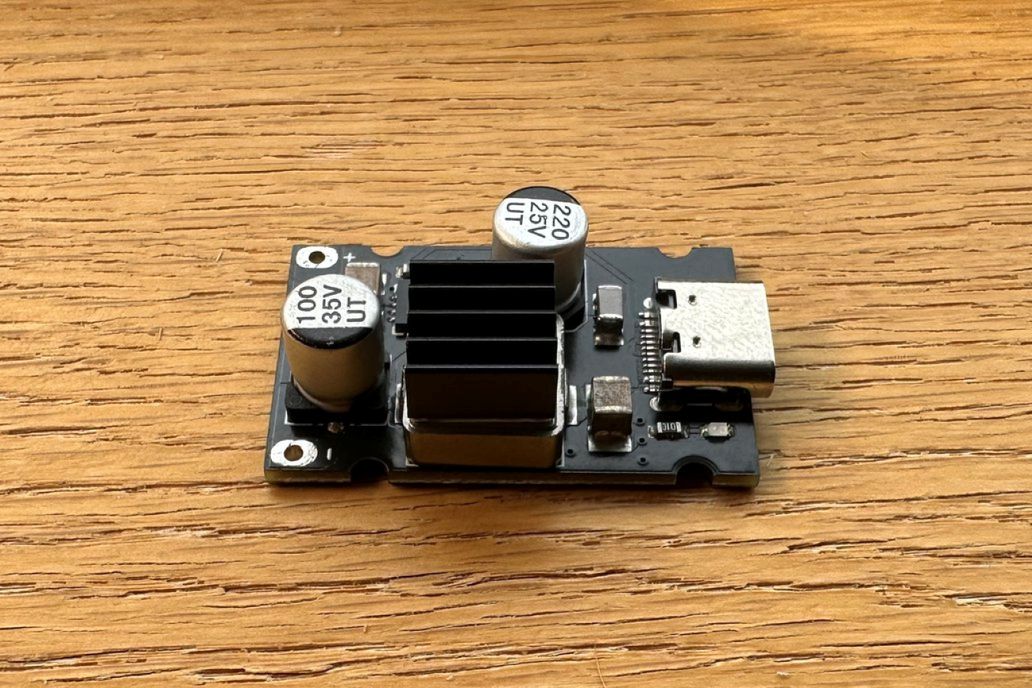

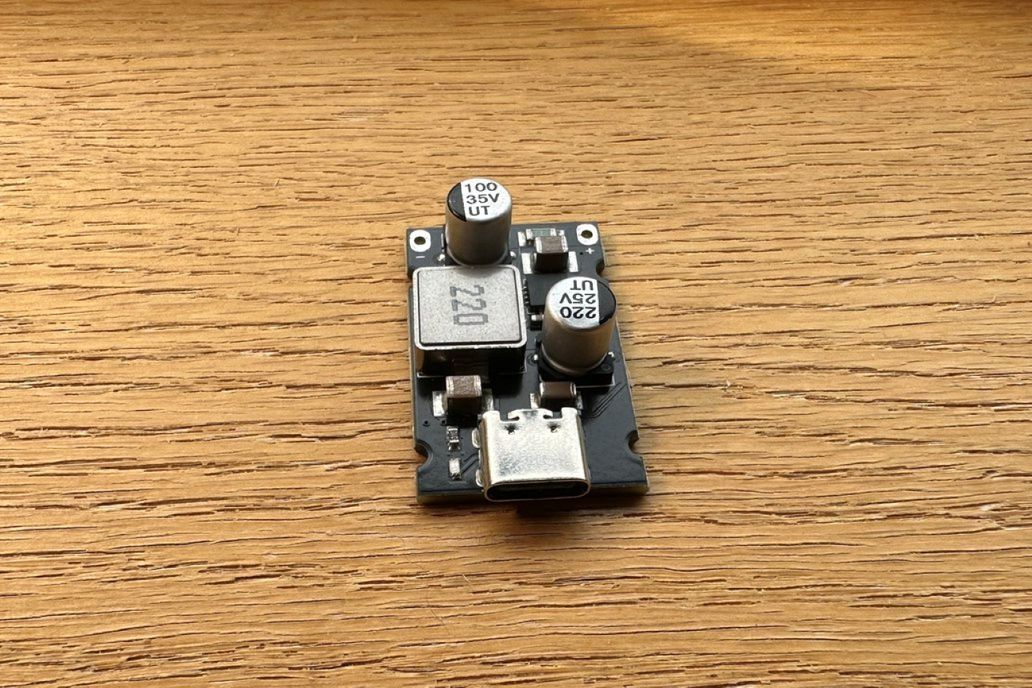

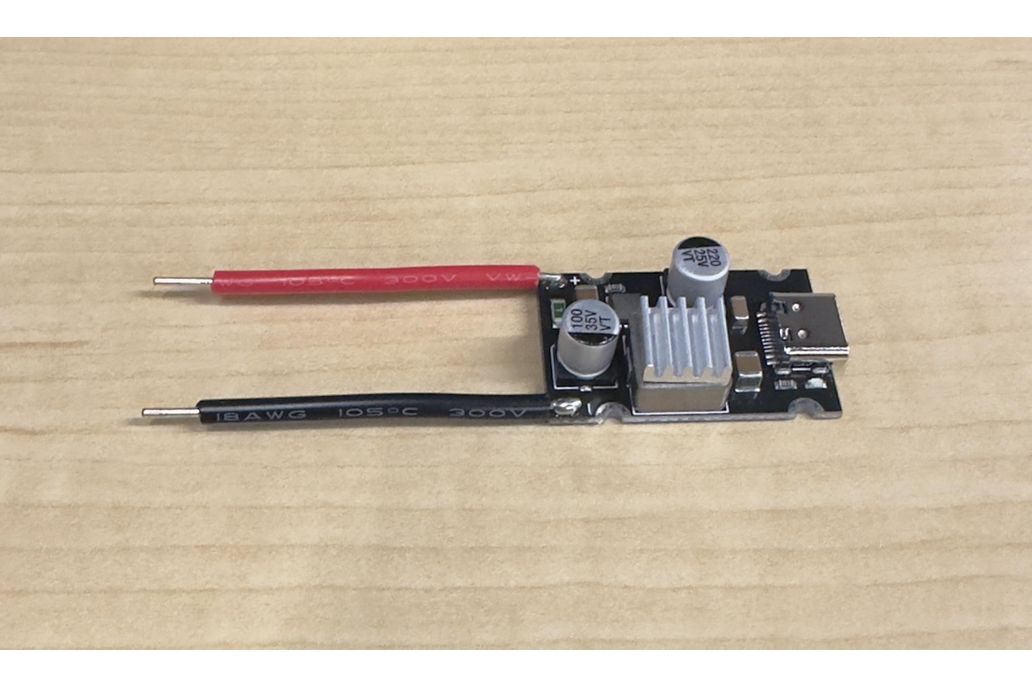

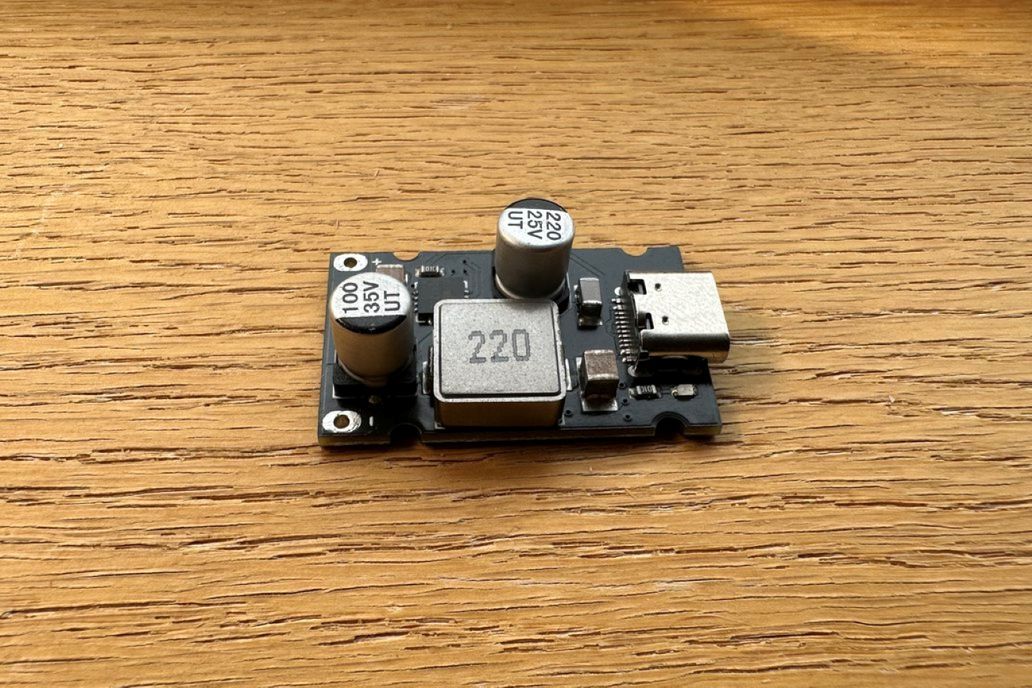

Type-C USB PD 65W Fast Charging Module DC8-32V

More products available at pcb-studios.com

Input voltage: DC8~ 30V

Output voltage: Automatically adjust between 3.3V and

21V when connected to a compatible TYPE-C receiving device (input voltage should be higher than output voltage, if triggering a 20V fast charging, input voltage should be higher than 20V)

Output power: maximum 65W(5V3A,9V3A,12V3A,20V3.25A.etc.)

Output voltage ripple:<200mV

No-load current: <3mA

Input overvoltage and undervoltage protection

Input overcurrent protection

Output overcurrent and short circuit protection overall

Over temperature protection
