XT60 Lock Retention Clip

I have a Vapor D5 FPV drone with an XT60H connector, but all of my batteries use standard XT60 connectors. During crashes, the battery would often disconnect, making the drone harder to find and recover, so I designed these retention clips.

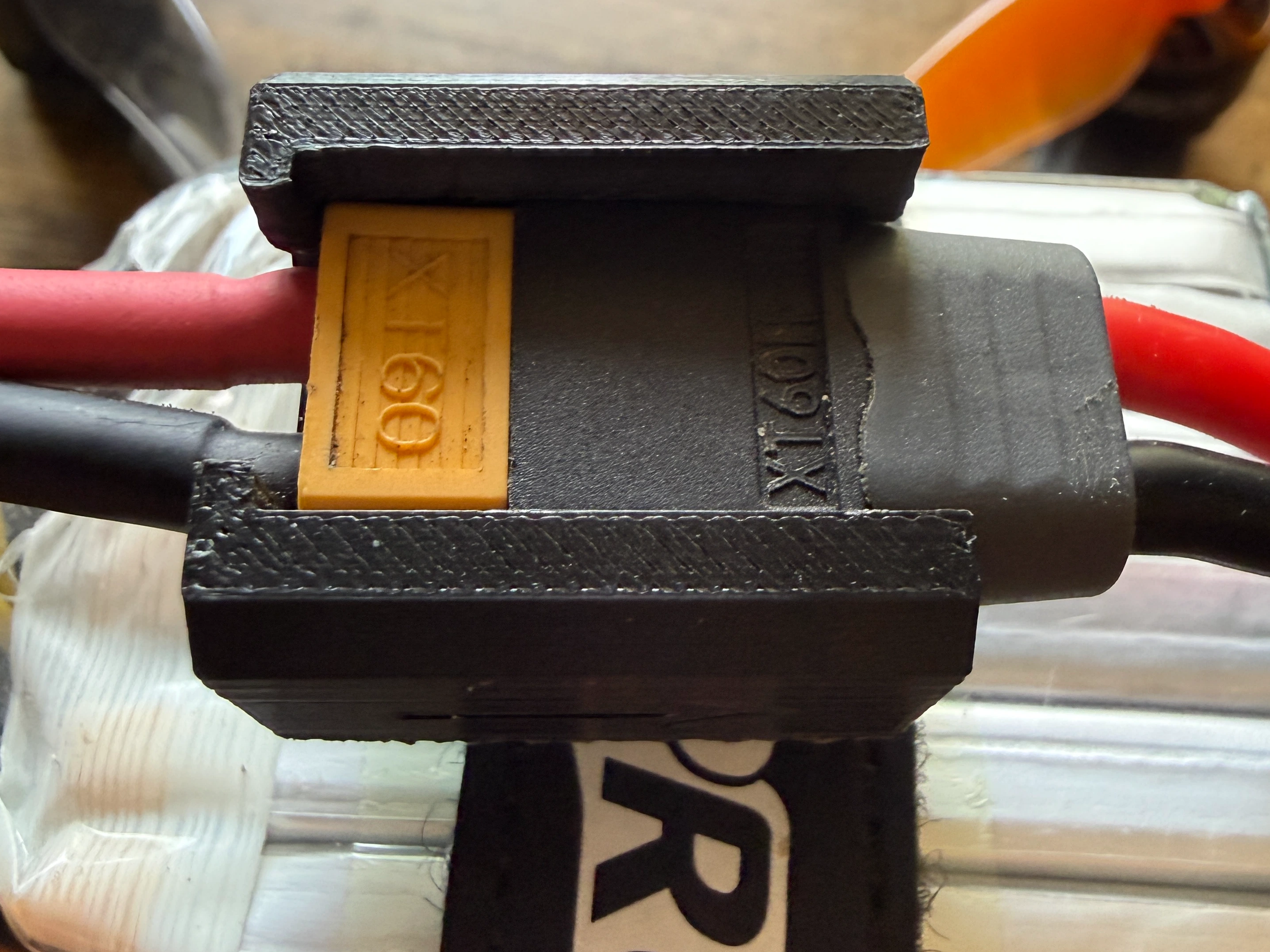

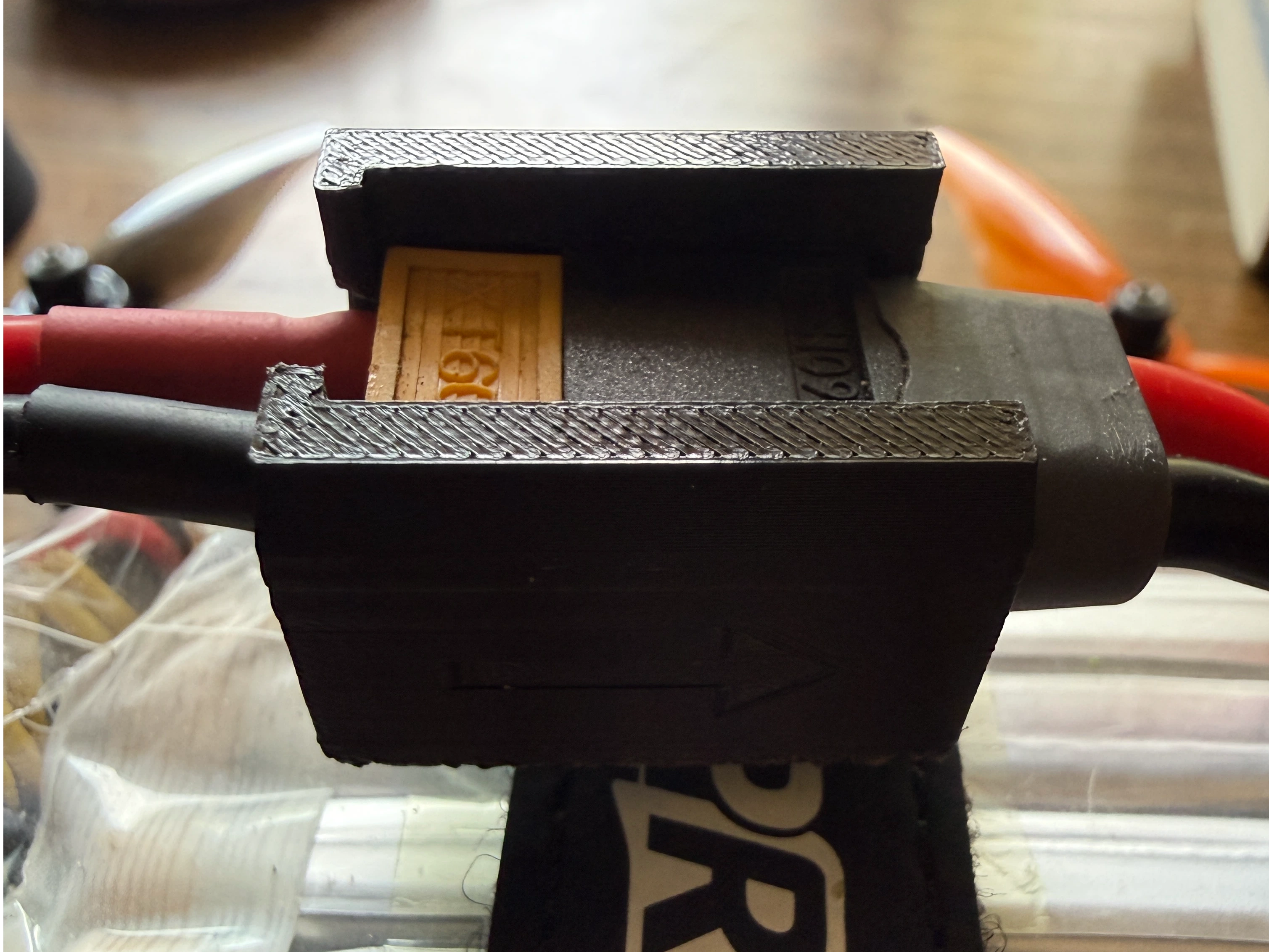

Choose the clip that fits your setup, connect the battery, and slide the clip into place. The versions compatible with both XT60 and XT60H connectors also include optional arrow variants to indicate current flow direction from the battery, making installation quicker at a glance.

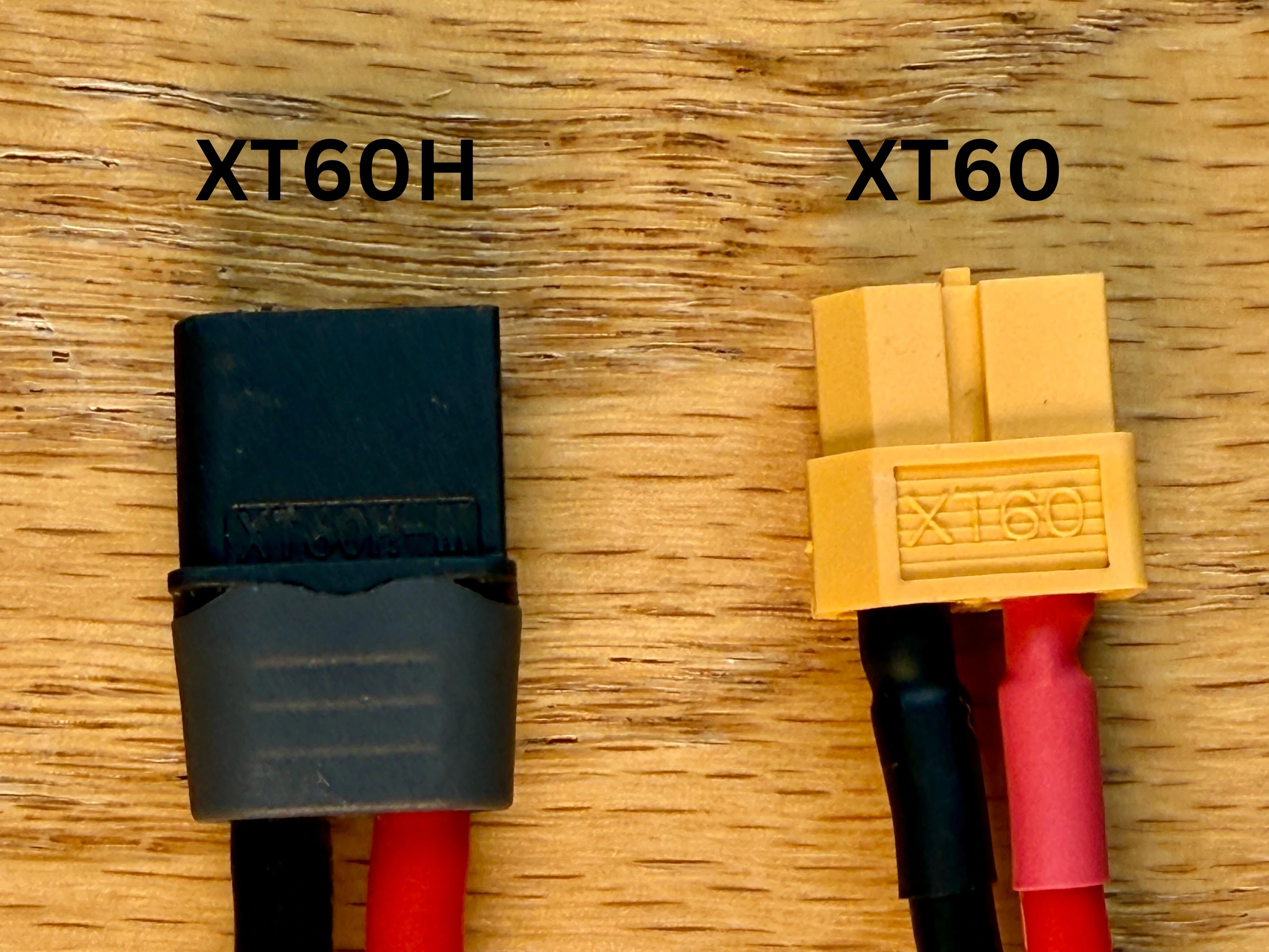

You can find out if yours is XT60 or XT60H by either seeing if it says on the connector or if it has a plastic boot that goes over the solder points. You can also reference the last image to get a better idea of which is which.

All of the clips are printed out of Bambu Lab TPU for AMS making them flexible to get on easily but not too flexible to where they fall off during a crash.
