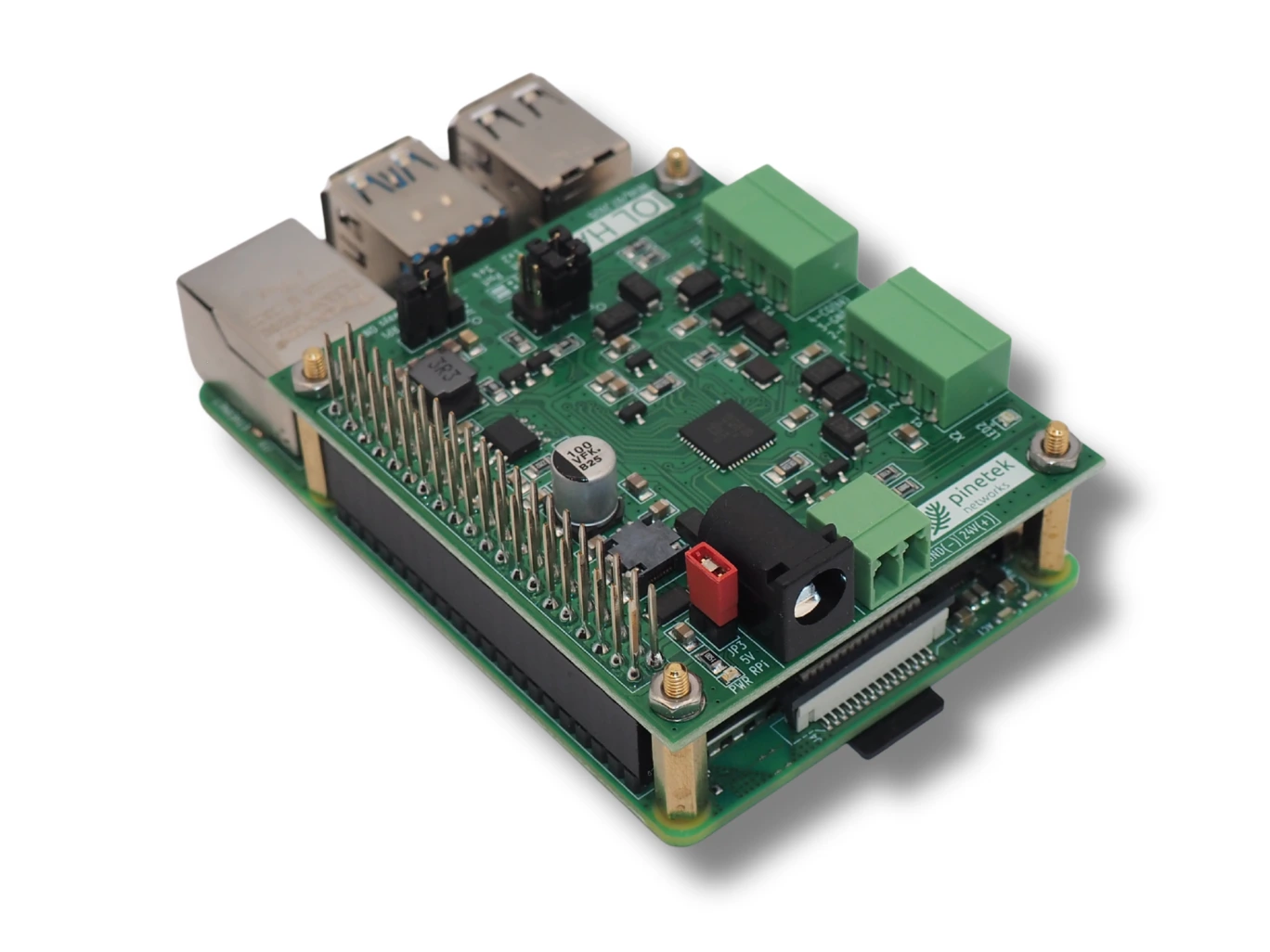

IOL HAT Pro for Raspberry Pi

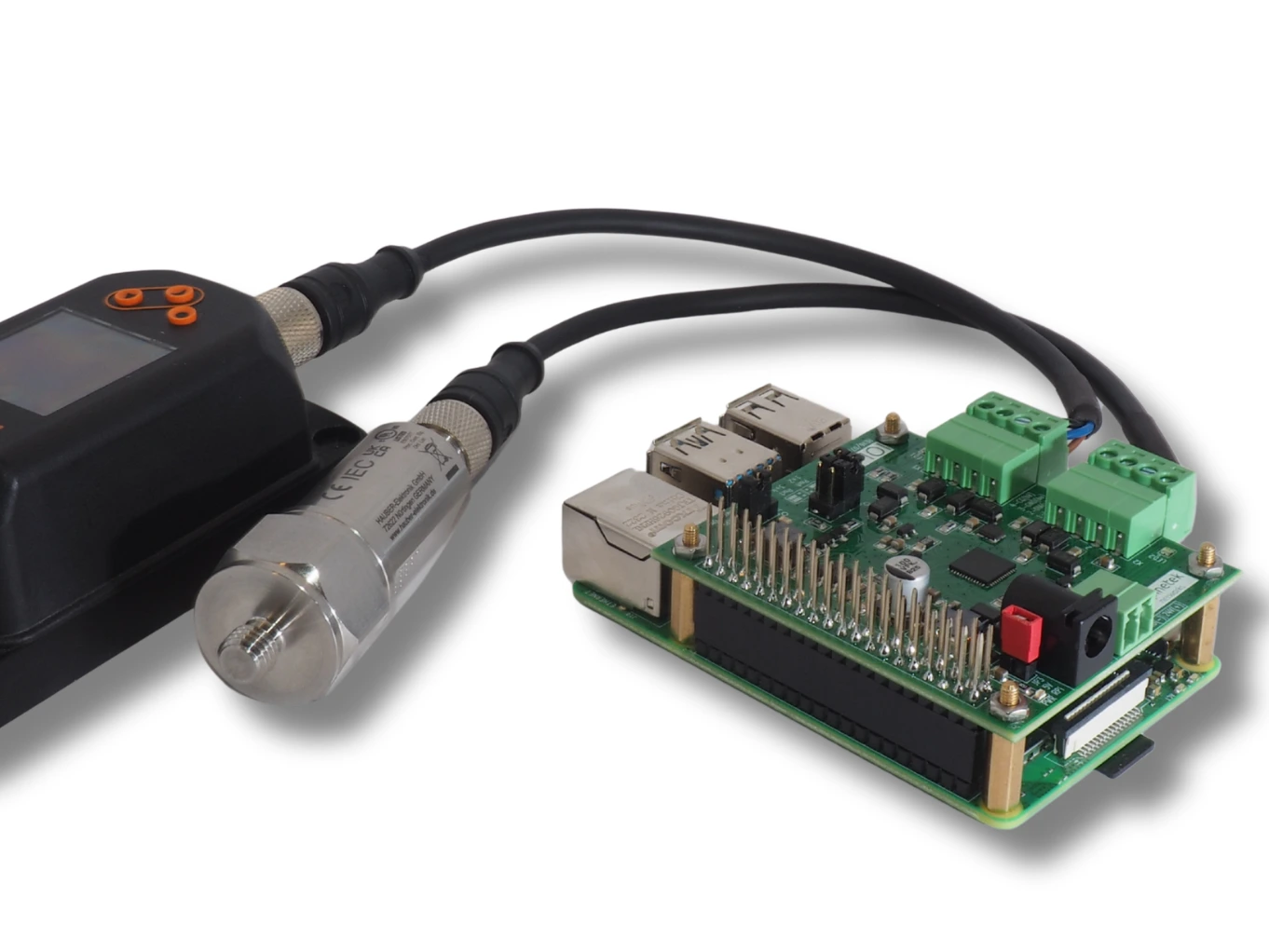

1. two IO-Link compatible master ports for connection of smart sensors and other devices
2. Powering option for Raspberry Pi up to 1800mA (equals 50% CPU load on RPi5 + 2x full load on USB2.0)
3. 2 power connection options (screw plug 2,5mm and round connector)
4. Advanced power filtering for harsh environments
5. extension for Raspberry Pi² using a 40-pin GPIO connector (generic interface for other single-board-computers also available)
6. stacking option for 2 IOL HAT modules on one Raspberry Pi (up to 4 ports in total)

Scope of delivery:

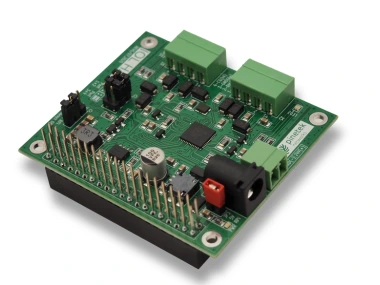

1. IOL HAT with 40-pin GPIO connector
2. 2x 4-pin connectors for 2xSDCI port (3,5mm)
3. 4x spacers with nuts
4. 1x 2-pin connector for 24Volt connection (3,5mm)
