STDC14 J-Link/J-Flash SWD Adapter (w/ VCP)

Sold by Pseudotronics

This adapter board connects a J-Link or J-Flash to ST's 14 pin debug connector.

In stock

Volume Pricing
QtyPrice Per Unit
Wishlist
📦 Ships from: United States
♥ Sign in to contact seller X Facebook Reddit Bluesky Mastodon

Details

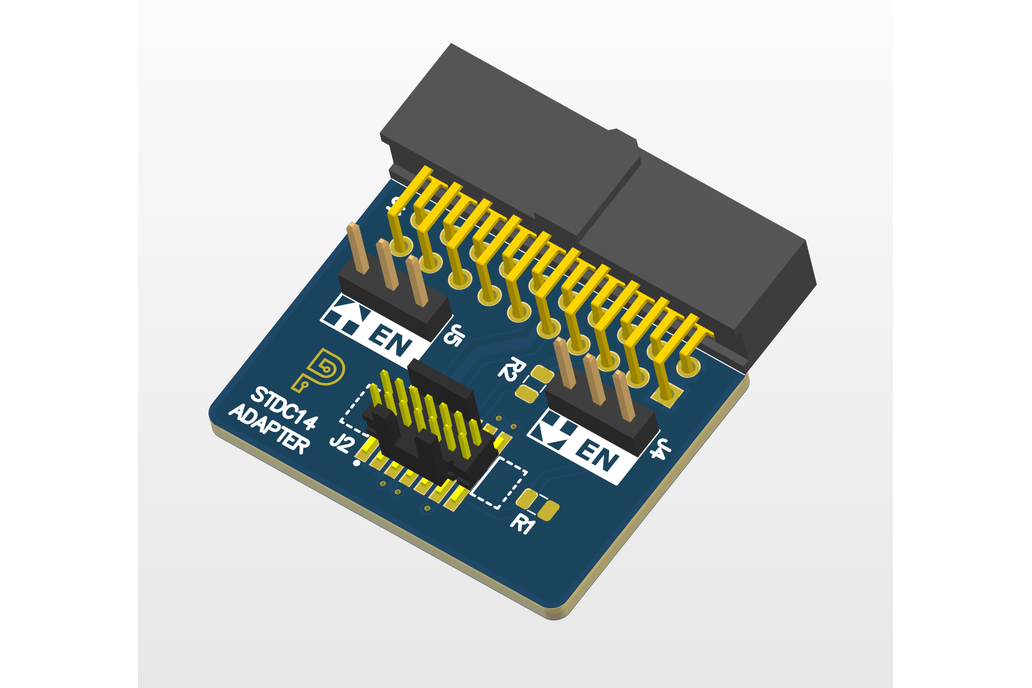

  1. This board adapts from the J-Link / J-Flash debug connector (ARM 20) to the ST-Microelectronics 14 pin debug connector (STDC14)

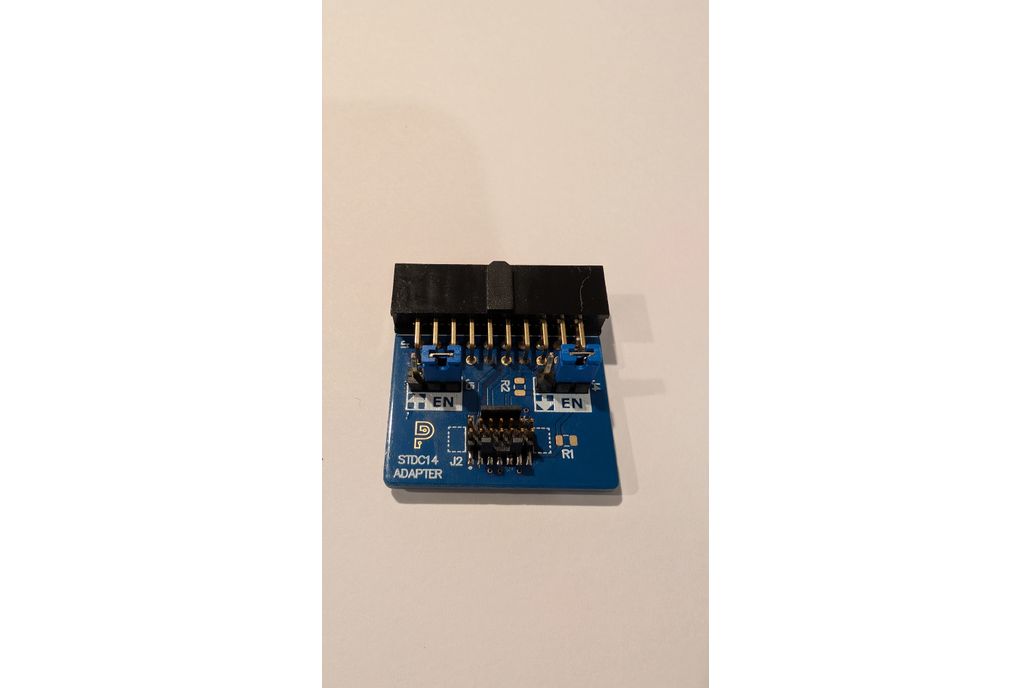

  2. The board features jumpers to enable/disable the use of the J-Link's Virtual COM Port (VCP).
  3. Use of the VCP disables JTAG debugging and can only therefore be used with SWD.

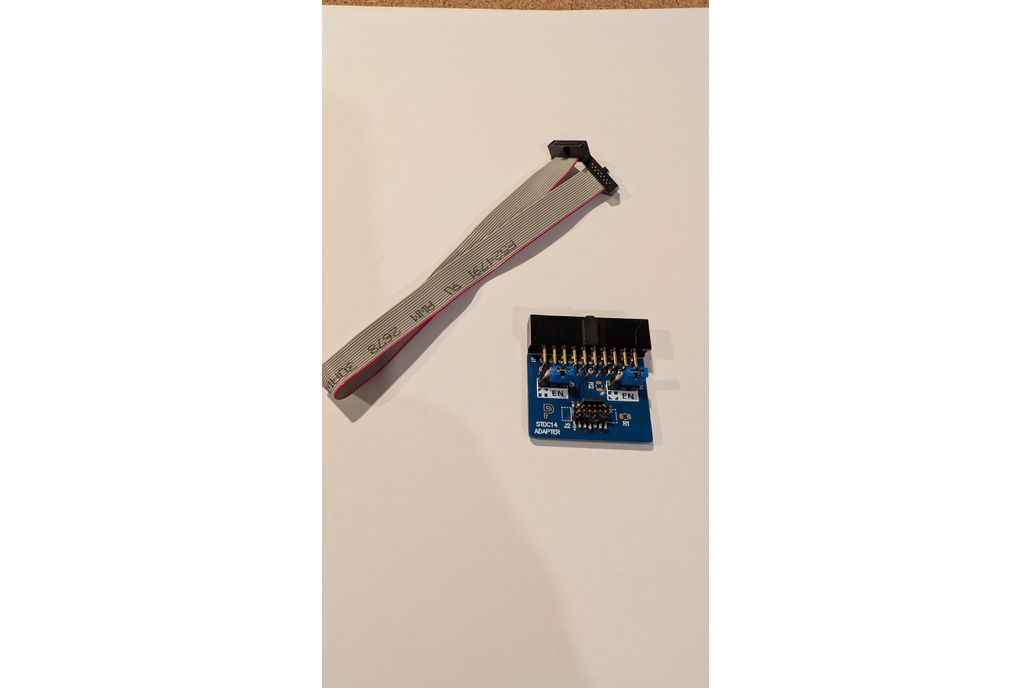

Includes

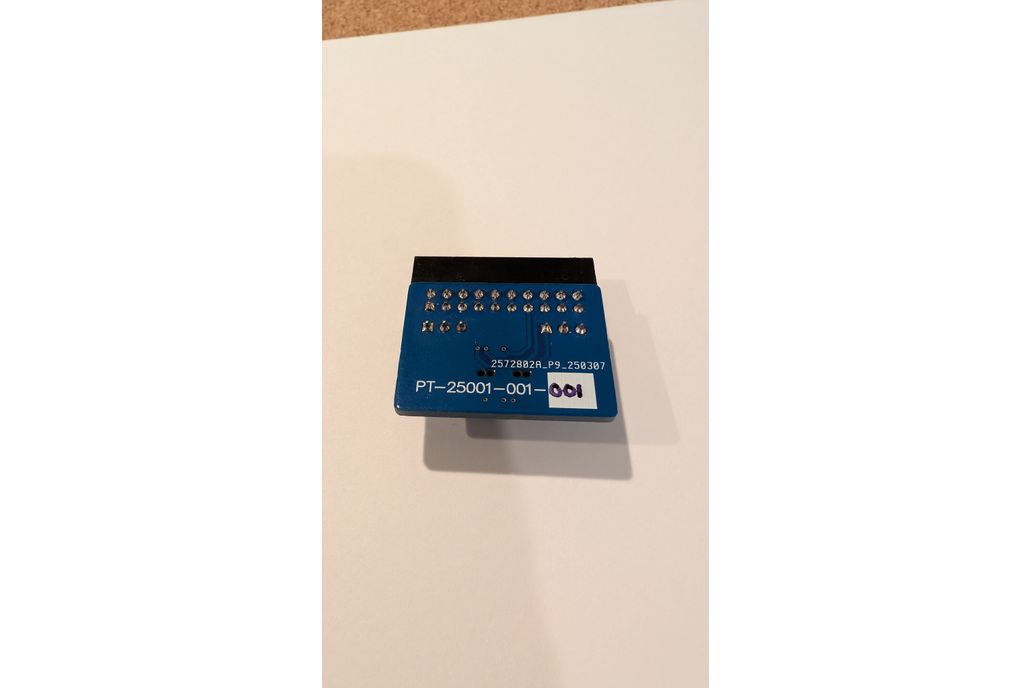

  1. (x1) PT-25001-001 (fully assembled)

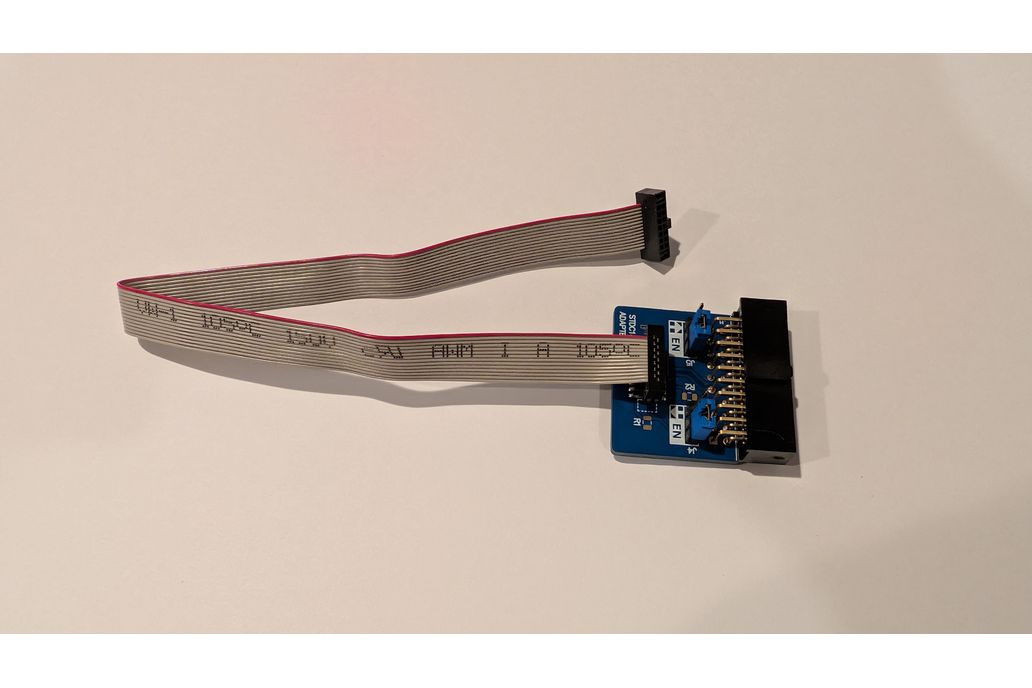

  2. (x1) 20cm 1.27mm pitch 14 pin cable
  3. (x2) 2.54mm Jumpers
Weight: 28 g
📄 Documentation: https://github.com/pseudotronics/PT-25001 ↗
