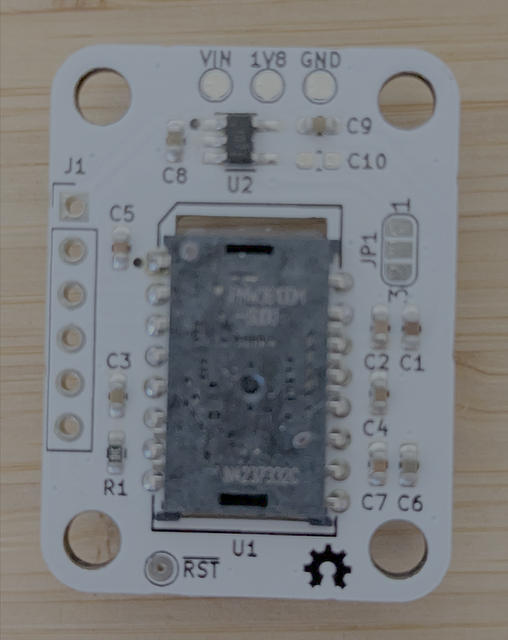

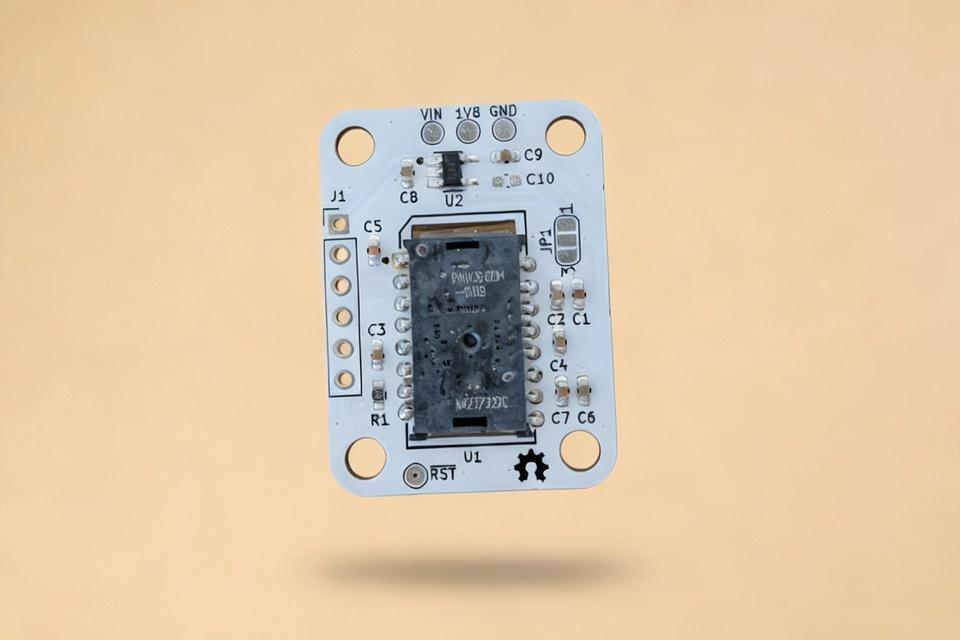

PMW3610 Breakout Board

What is it?

A ready-to-use motion tracking breakout board that's perfect for building custom computer mice, trackballs, or adding motion sensing to any project. It uses the PMW3610 sensor (the energy-efficient cousin of sensors found in gaming mice) with all the tricky electronics already handled.

Documentation & Examples

This breakout board is used in my ergonomic keyboard build - you can use it as a reference when integrating the PMW3610 into your own projects.

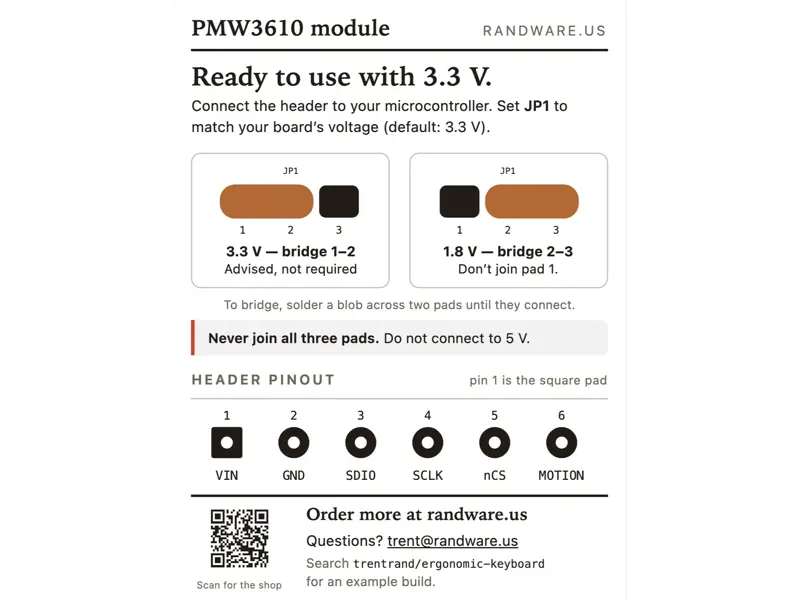

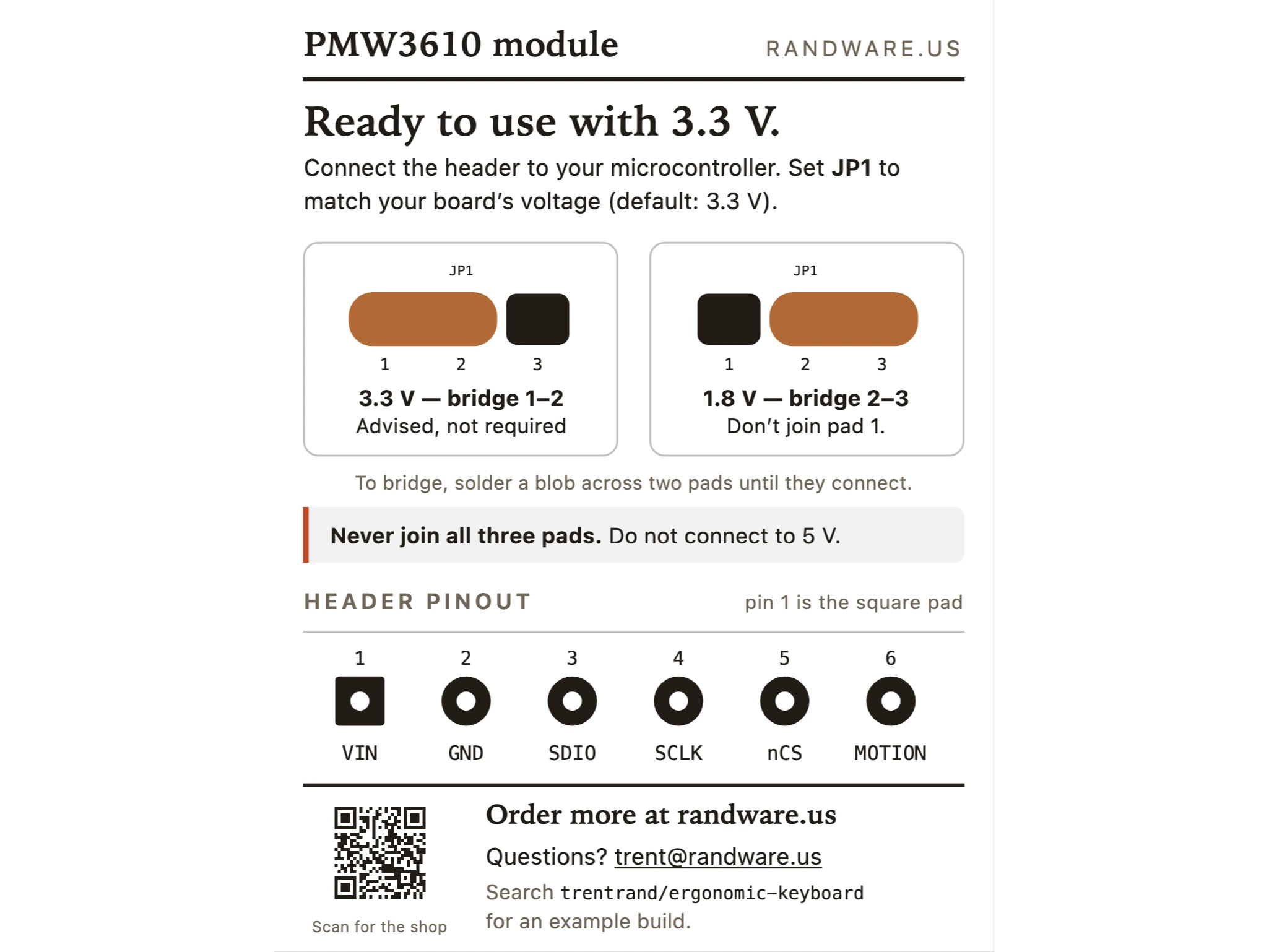

1. PMW3610 Wiring Diagram - Pin connections and setup guide
2. Complete Project Repository - Working ZMK firmware and build instructions

Why did you make it?

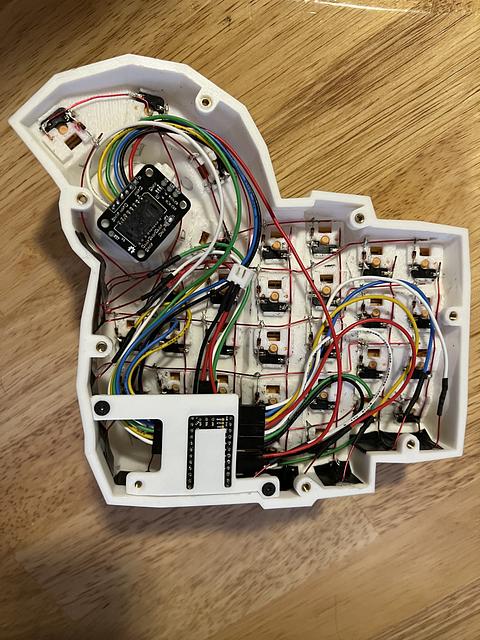

I built a custom keyboard with integrated trackball, but couldn't find an optical sensor for sale that fit my requirements. I needed support in ZMK, and low energy requirement since my keyboard was wireless. This PMW3610 fit the requirements!

Whether you're crafting a unique trackball keyboard, building a custom mouse, or adding motion sensing to a battery-powered project, you need something reliable and power-efficient. This board makes it simple to add high-quality tracking without the headaches.

What makes it special?

1. Widely supported sensor has great driver support on many platforms.
2. Super low power consumption - perfect for battery-powered projects
3. Ideal for custom mice, trackballs, and keyboard builds

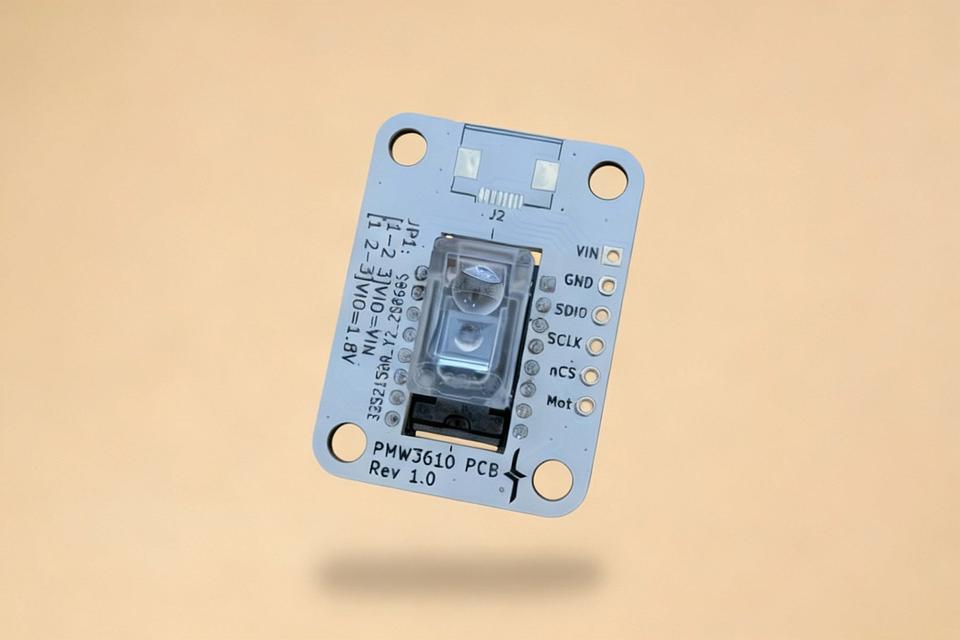

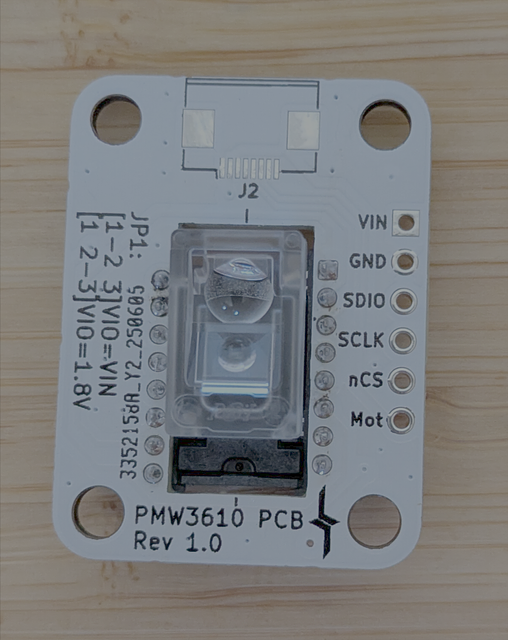

4. Clear labels on all pins - no confusing wiring diagrams needed
5. Each board is hand-tested before shipping from Arizona, United States

Specifications

1. Sensor: PMW3610DM optical motion sensor
2. Supply voltage: 3.3V
3. Current consumption: Ultra-low power (ideal for battery projects)
4. Communication: SPI interface
5. Motion detection: Up to 1000 CPI

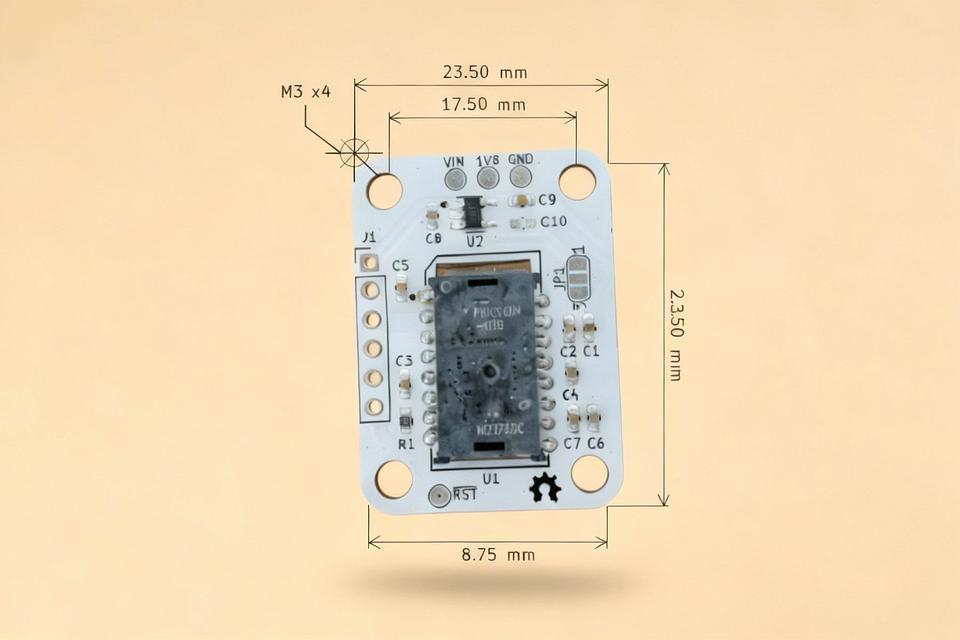

6. Board dimensions: 23.5mm x 31.5mm
