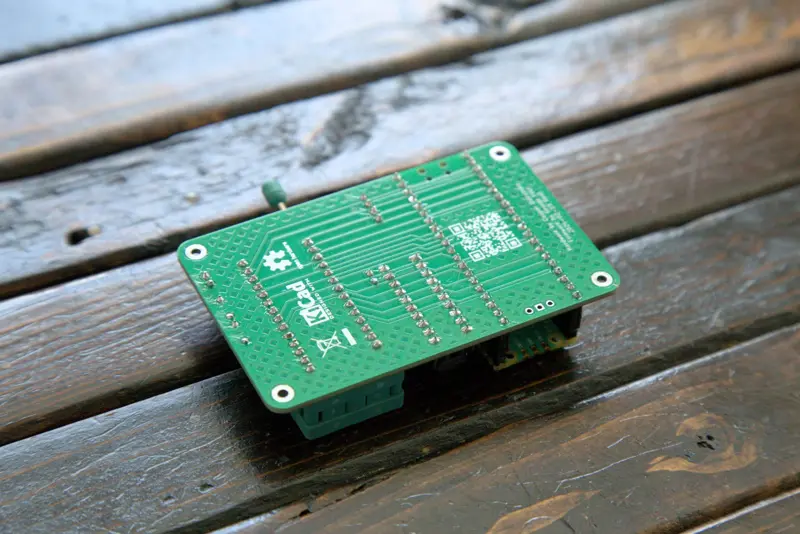

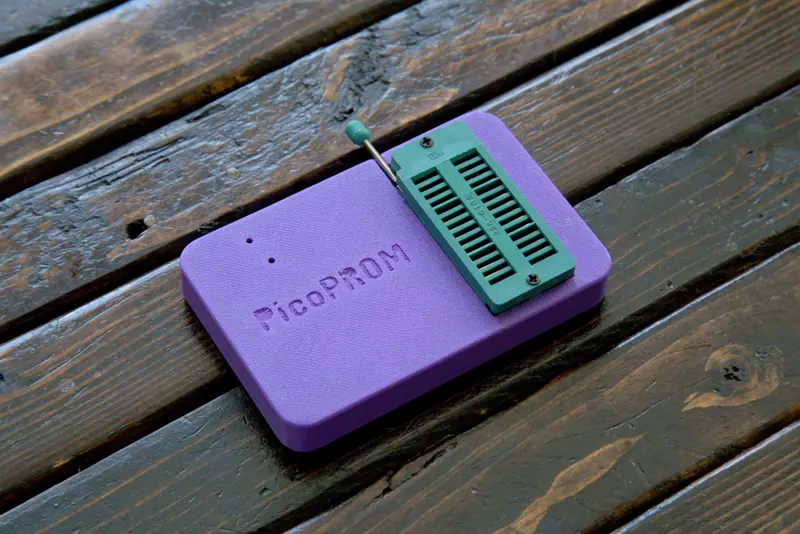

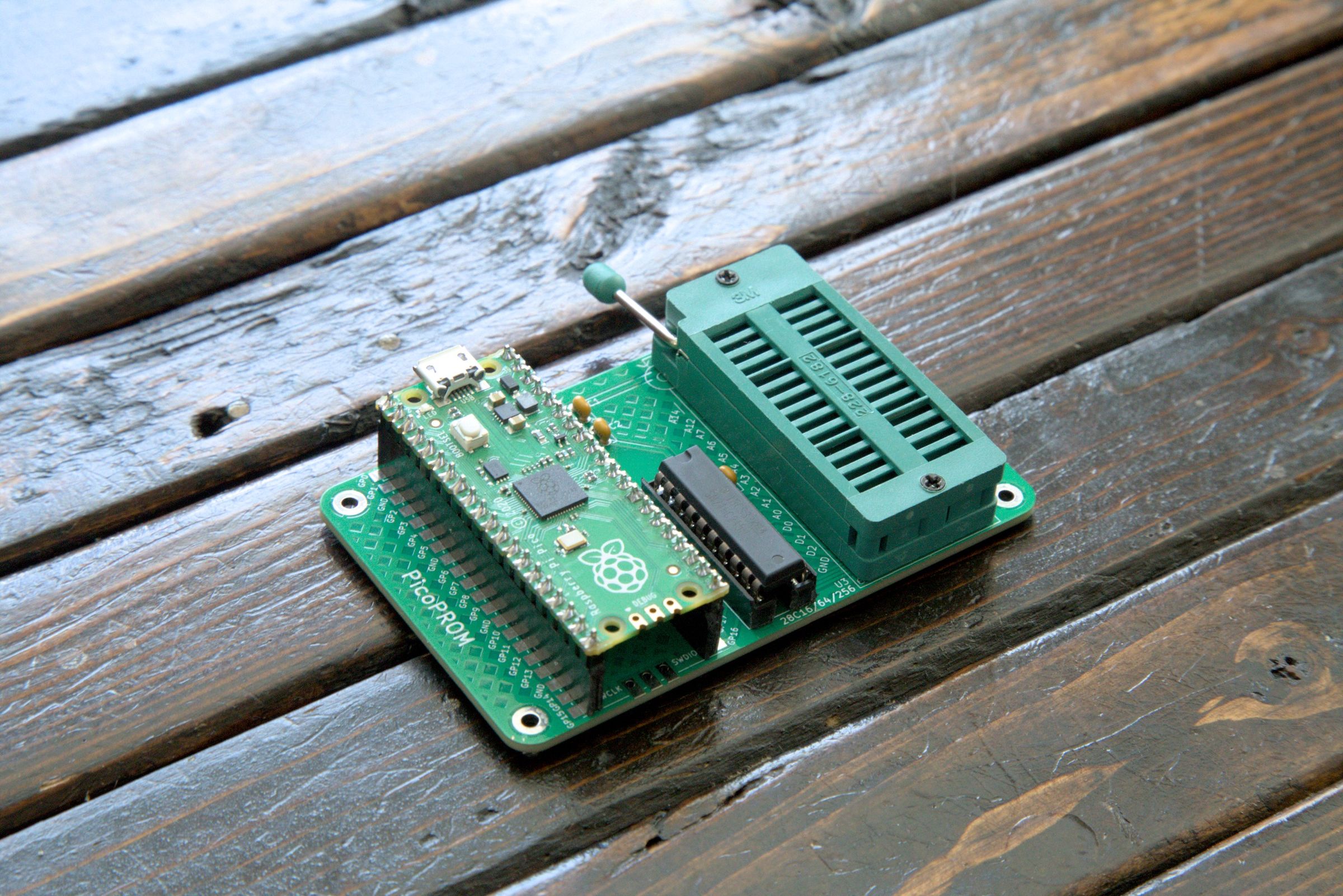

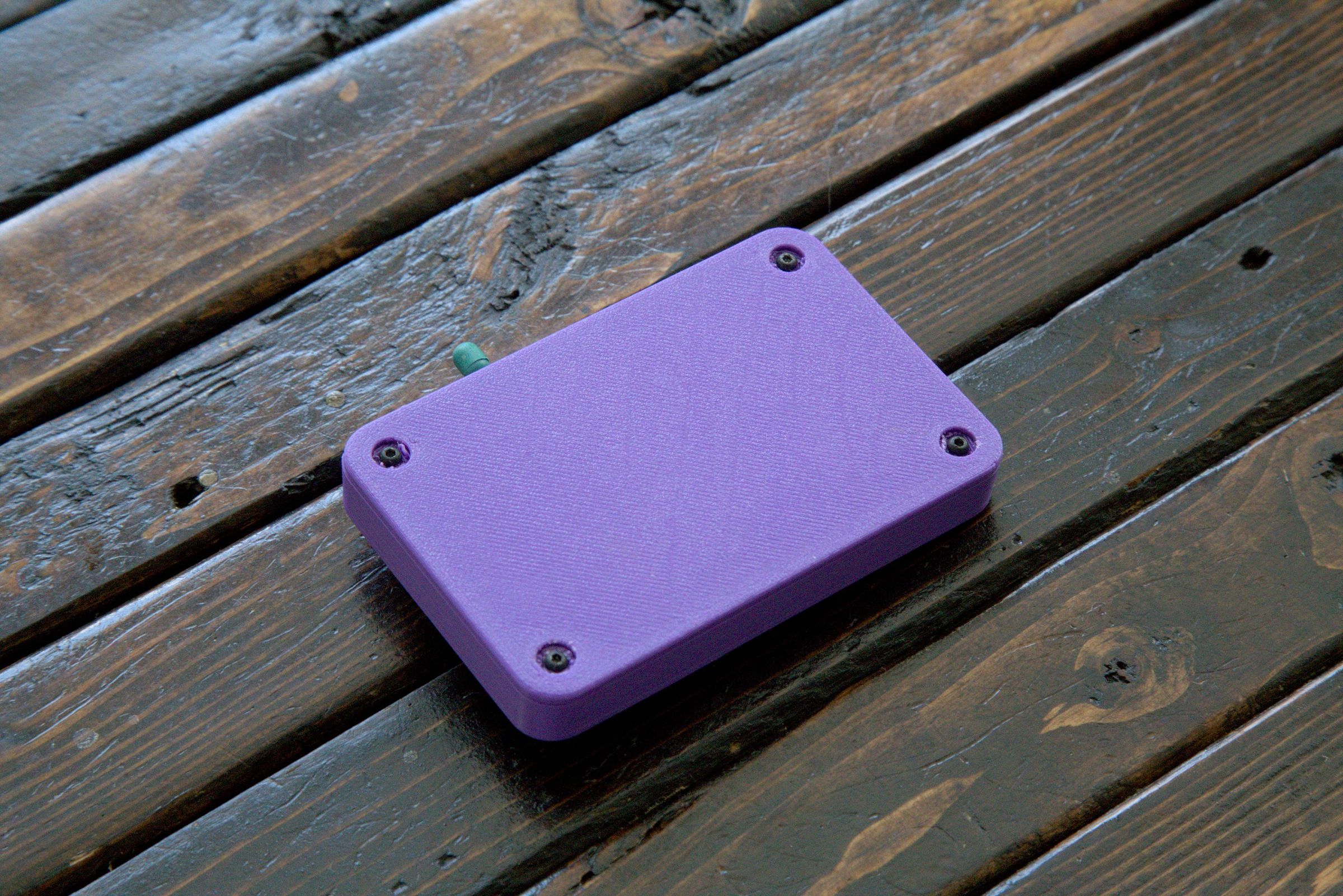

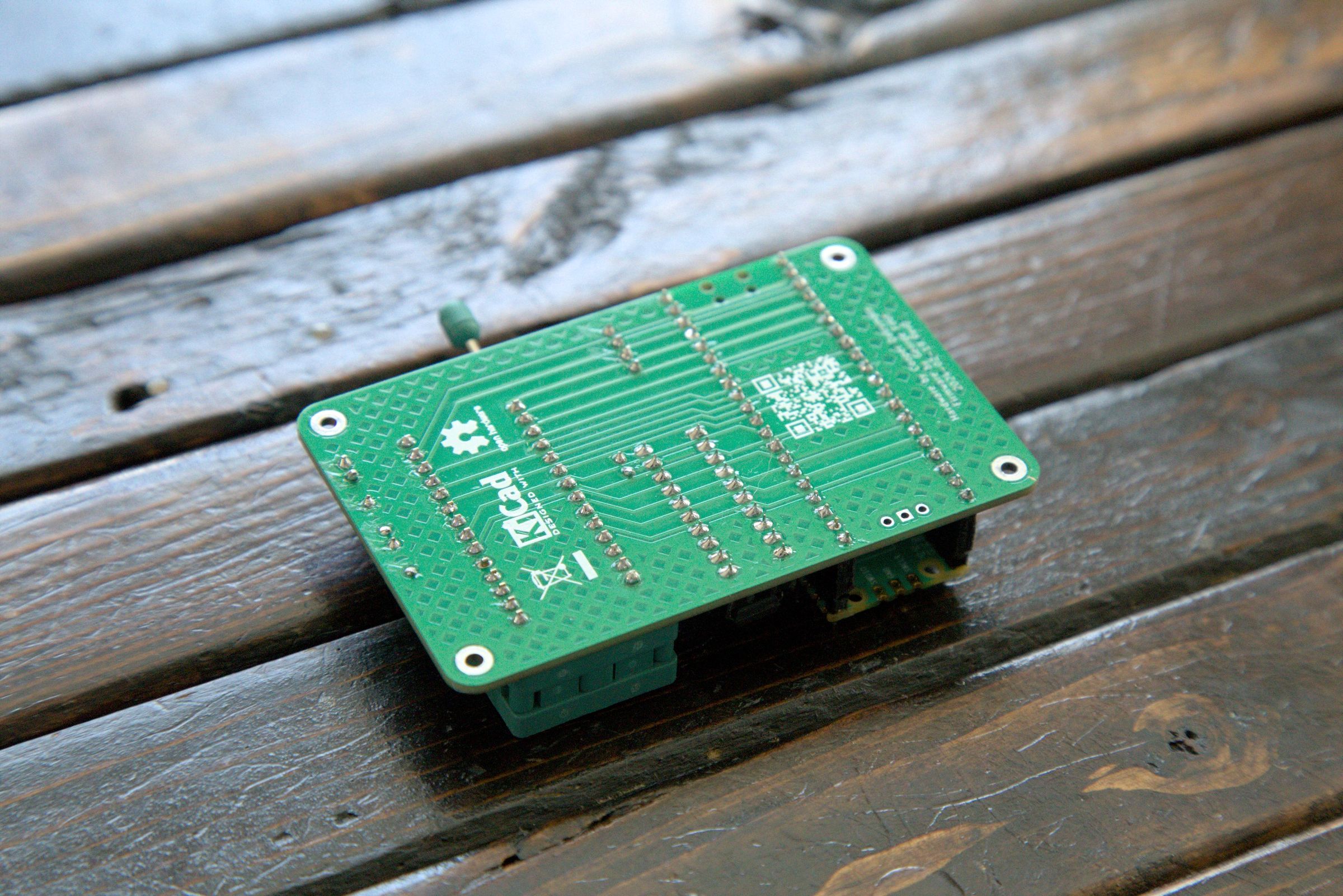

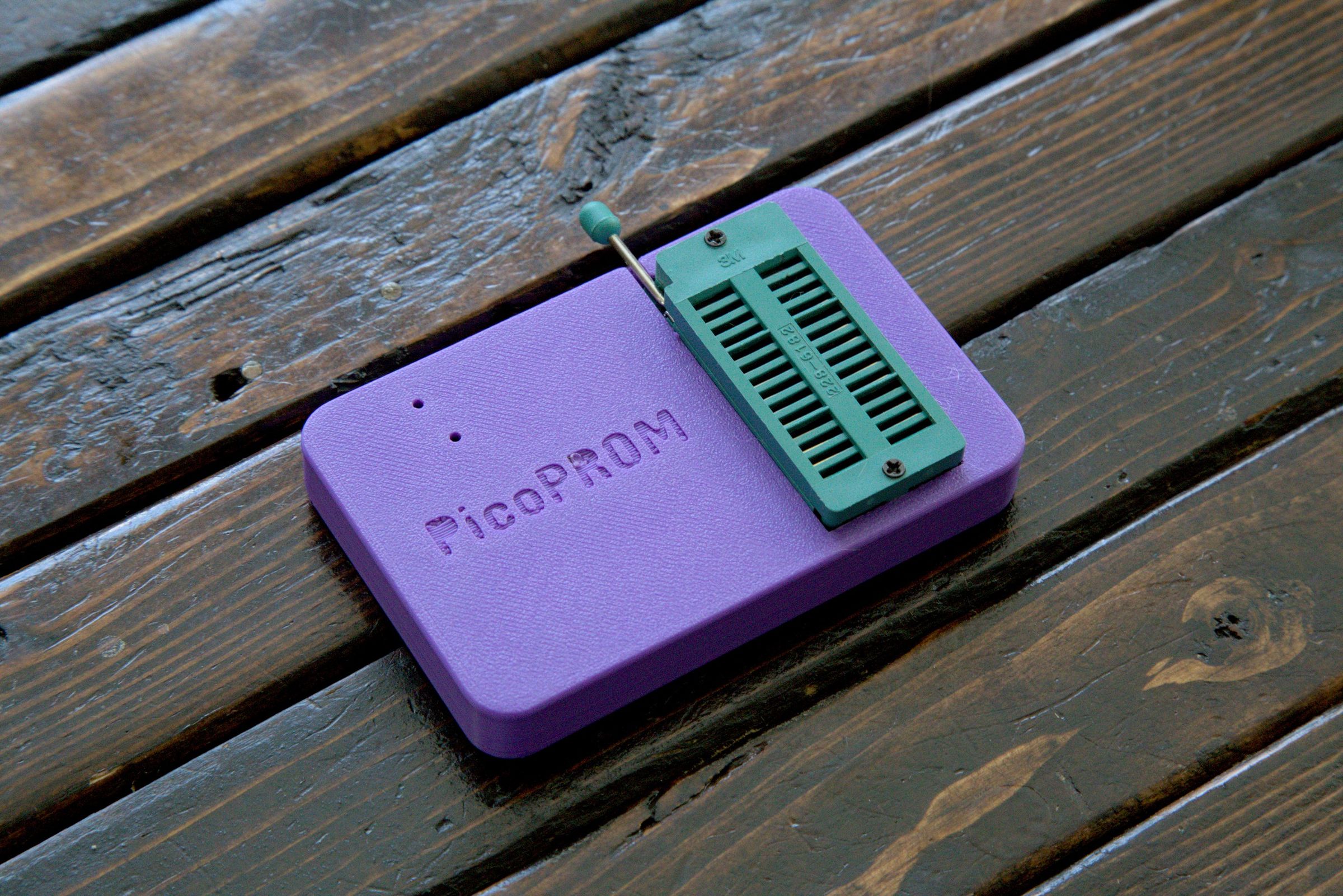

PicoPROM

Description

Writes ROM images to parallel-interface EEPROMs via XMODEM file transfer over USB.

This hardware is based on the specifications and firmware created by George Foot on GitHub under the terms of unlicense. The hardware specifications have been modified to support write verification using a bus transceiver.

If you purchase PicoPROM as a kit, a comprehensive video build guide is available here: https://www.youtube.com/watch?v=9rVCr0TWH18.

Notes

USB-C Power Issues (2026-01-02)

I've discovered that some of the USB-C Raspberry Pi Pico clone boards that I've been using may have issues with their CC resistors which caused the device not to be powered correctly when using a USB 3.x cable (typically, USB-C to C). If you encounter this issue, try using a USB 2.x USB-C cable (typically USB-A to C) instead which doesn't have this problem.

Updates

2026-04-10 - International Shipping

Unfortunately, the costs and headaches of shipping outside the US has gotten much worse in recent months due to international events and policies. Rather than continuing to raise my shipping rates and still occasionally taking losses, I've decided to forgo international shipping altogether until the situation improves. To my international customers, I'm really sorry. 😿 My designs are all open hardware, so I recommend looking into ordering PCBs and parts from a reputable manufacturer such as JLCPCB or PCBWay.

2026-02-04

I've added 20 kits to the stock. This revision of the PicoPROM should remain available for the foreseeable future. Thank you for your patience!

2026-01-25

Just finished preparing a restock of 10 kits! I'll have even more ready in a few weeks.

2026-01-06

Thank you all for your continued interest in this project! I've been out of stock for a long while now, but I've just put in all the necessary orders for a restock. I'm hoping to have a good batch of PicoPROMs available within a month or so depending on shipping times.

2024-04-15

The last of the parts have arrived and been processed. Stock is back up! Contact me if you have any questions.

2024-04-10

I've added a few items to the stock, but I am still waiting on more parts to arrive to fill it out more. If you aren't able to get one in this run, more will be available very soon!

2024-03-25

Another batch of these boards is on their way. Expect a restock around mid-April or sooner. If you would like to be notified when these are available, please sign up for the waitlist to know exactly when I am able to restock. Thank you for your patience!
