M2Slim
Sold by Seakip Studio · in Console Mods
Full size M.2 SATA SSD mod for the 70K Slim. Kit includes the adapter board, 3D printed jigs for cutting the metal shielding and plastic shell as well as the screws and mounting insert for the board.
Out of stock
Volume Pricing
| Qty | Price Per Unit |
|---|---|
Wishlist it and we'll notify you when it's back in stock.
The M2Slim kit allows the installation of an M.2 SATA SSD adapter into a cutout created in the DVD drive bay of an SCPH-700XX model PS2 Slim. 3D printed jigs for accurate drilling and cutting are provided as well as drawings for using CNC milling service if desired.
DISCLAIMER: M2Slim is only compatible with SCPH-700XX model PS2s. Installing this mod requires micro soldering and cutting into the shell.
WIP Build instructions are available at https://installguide.m2slim.net/

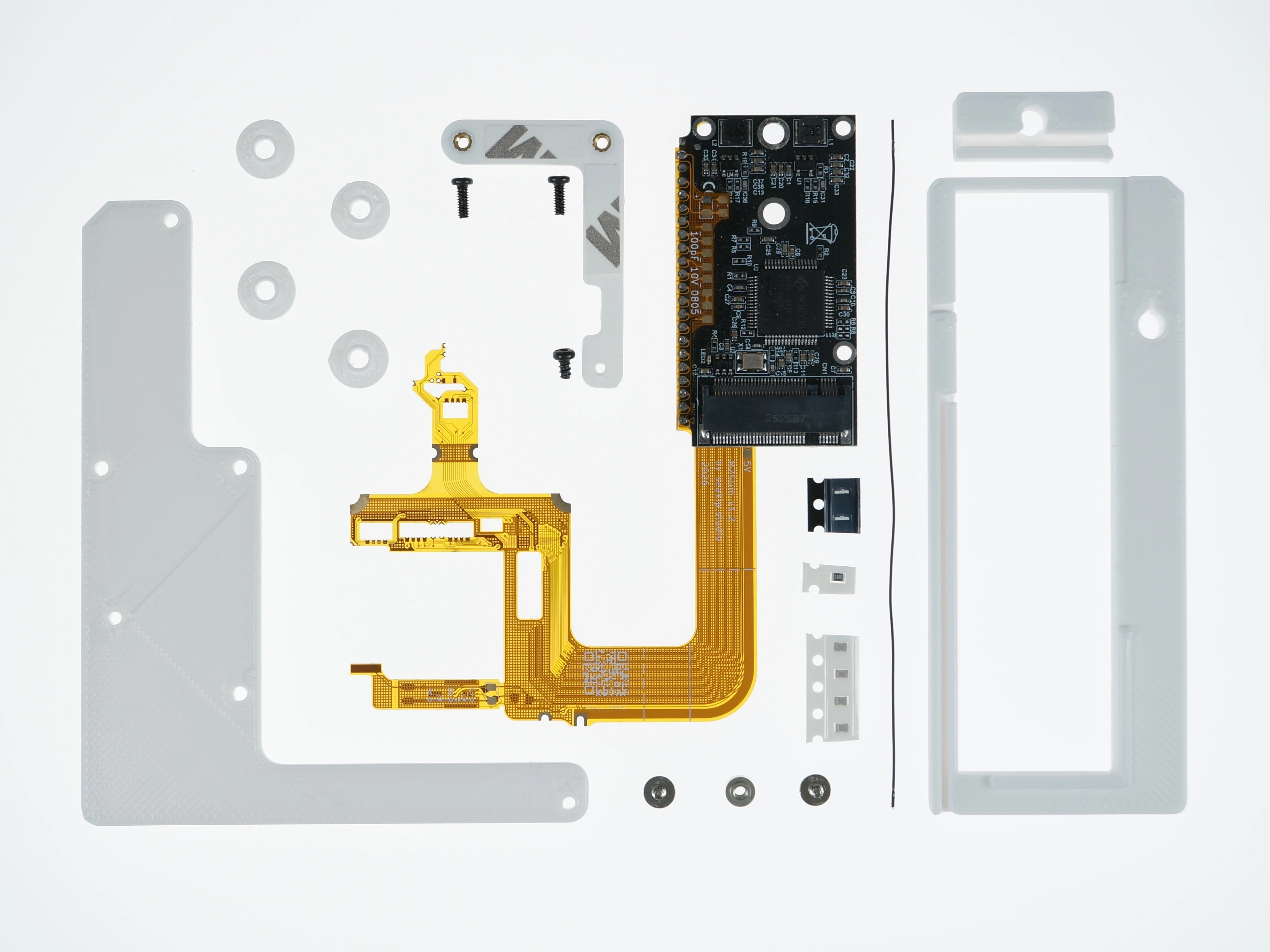

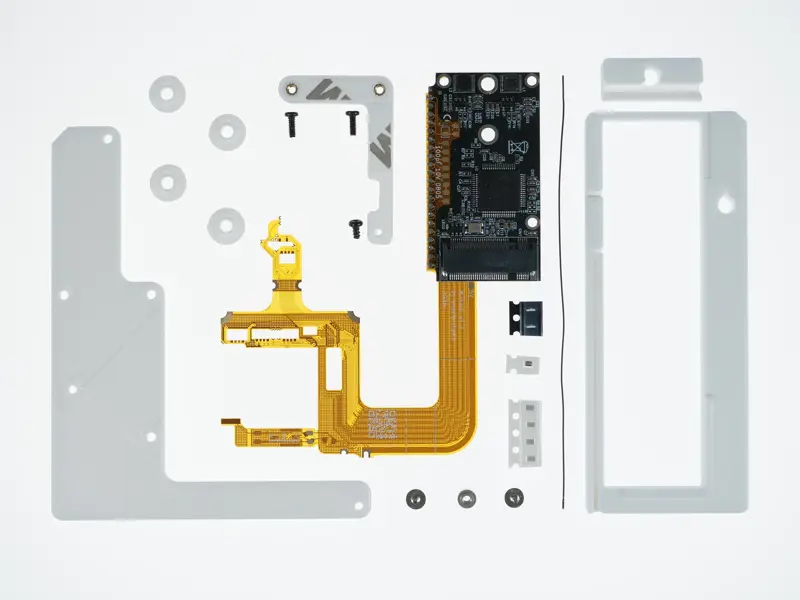

Kit Includes: 1x M2Slim Adapter, 1x mounting drill jig, 1x mounting bracket and screws, 1x shell cut jig + insert, 4x DVD drive spacers, 1x set of M.2 stand off and screws, 2x activity LEDs, resistor and kynar wire, 4x Optional 100pF capacitors.
Features:
- JM20330 chip provides LBA-48 addressing (>128GB storage) and UDMA 6*.
- Full size 2280 B-key M.2 SATA support
- M.2 slot is easy to access inside the DVD drive and preserves the external appearance of the console.
- DVD drive remains functional†\

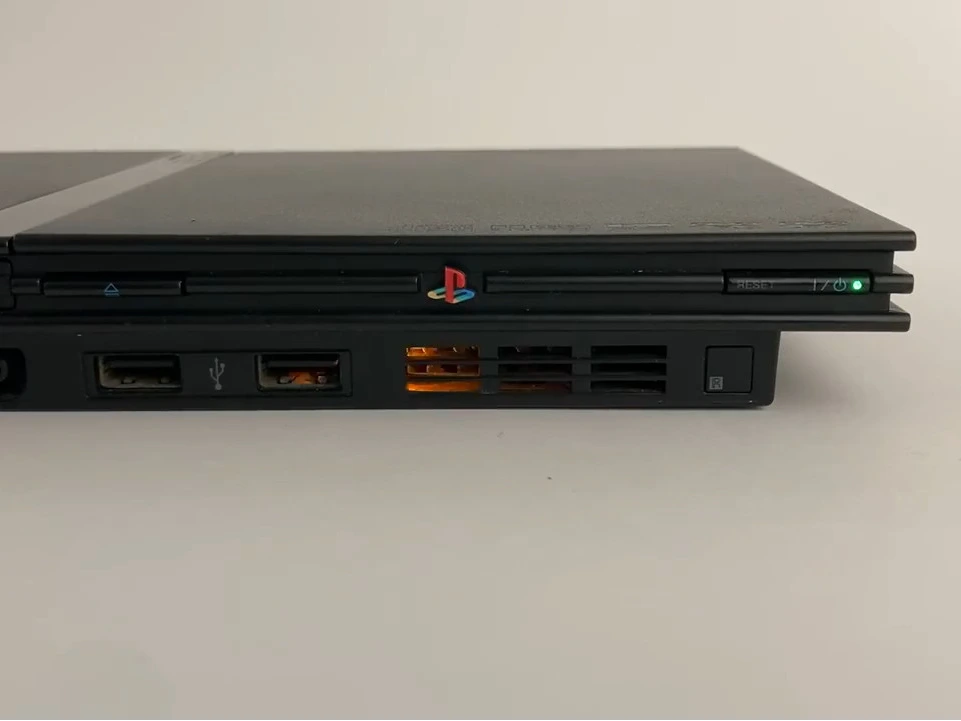

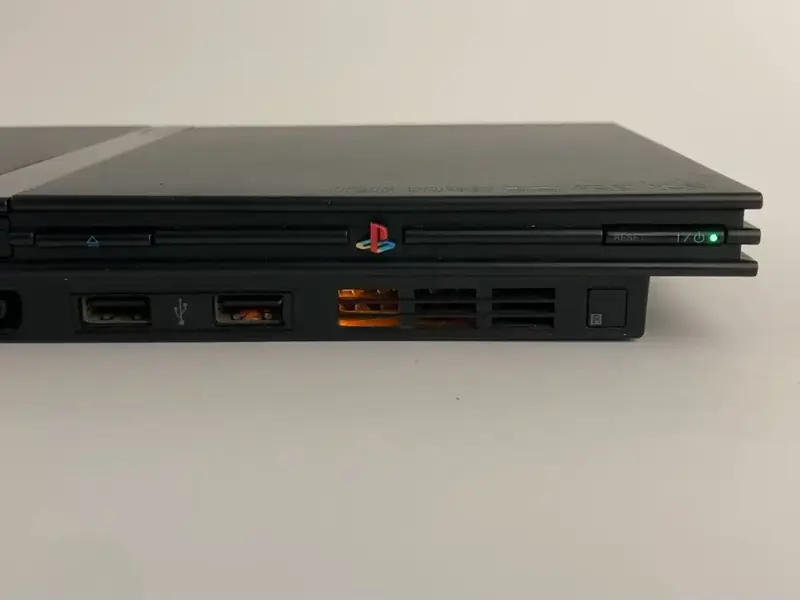

- Activity LED inspired by the Phat
- Compatible with PSBBN (requires FMCB)
- Compatible with PixelFX Retro GEM HDMI kit
- Optional 100pF capacitors included
* PS2 IDE hardware is bottlenecked to ~80MB/s in benchmarks and ~20MB/s in real world use.
† SSD height can vary. Always check clearance before inserting a disk with an SSD.
SSD compatibility - SATA SSDs are generally reliable but this list will be updated if any issues are discovered.
Tested working drives:
- Silicon Power A55 512GB
- SanDisk x400 128GB
