Multichannel USB to I2S UAC2 interface York

What is it?

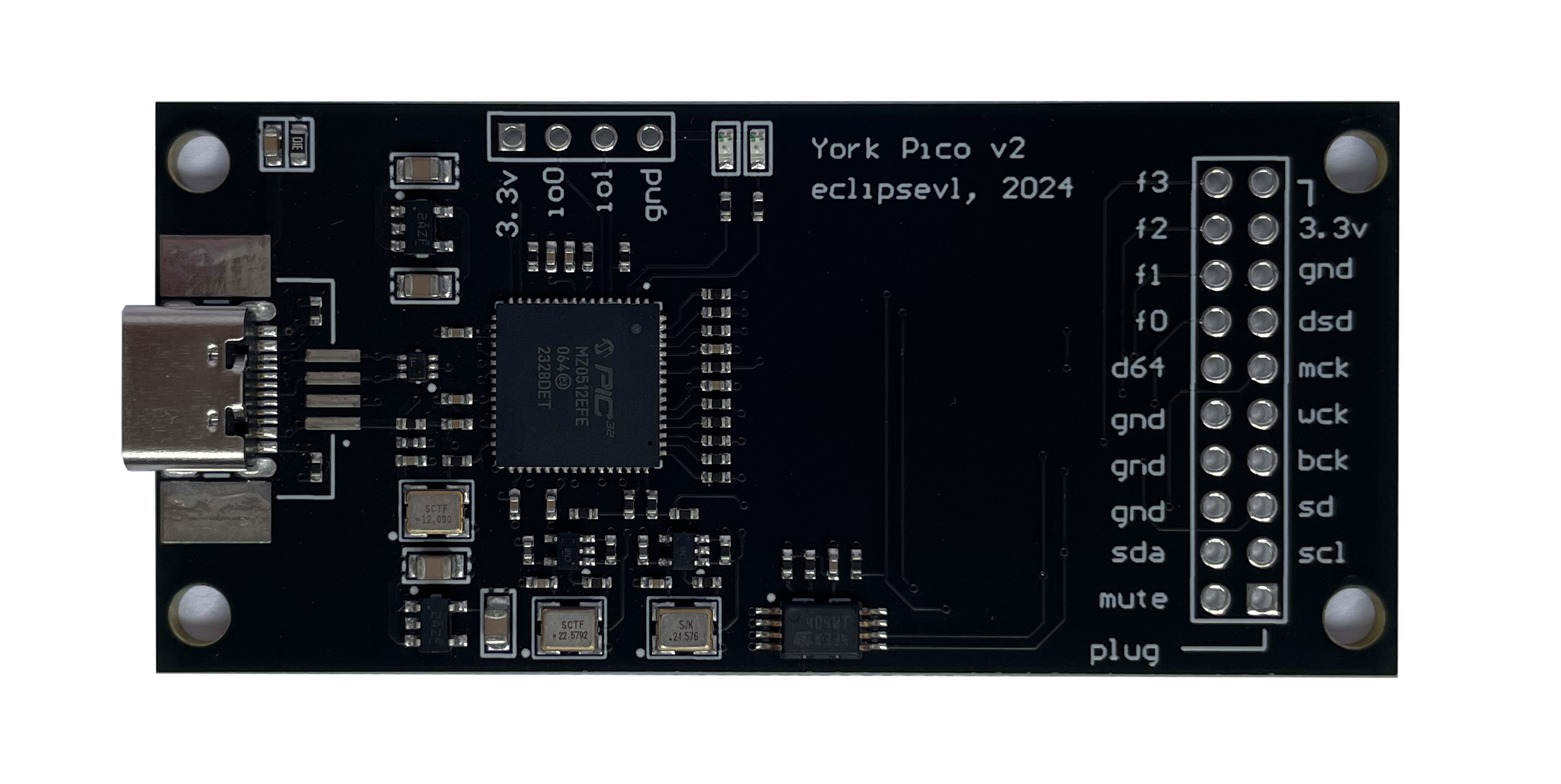

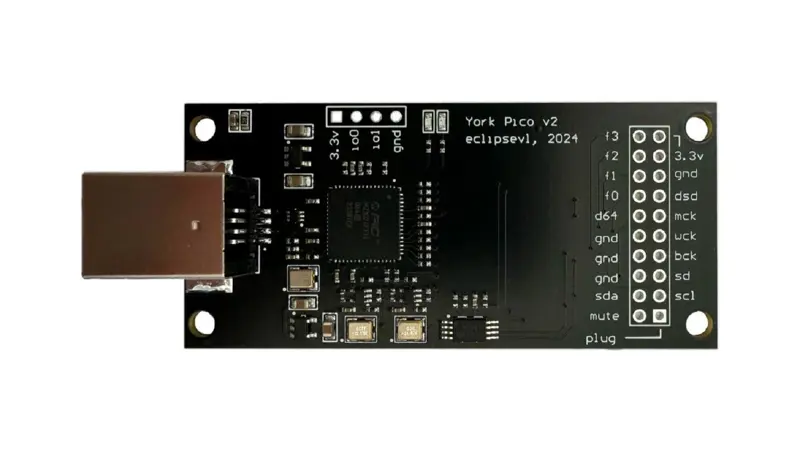

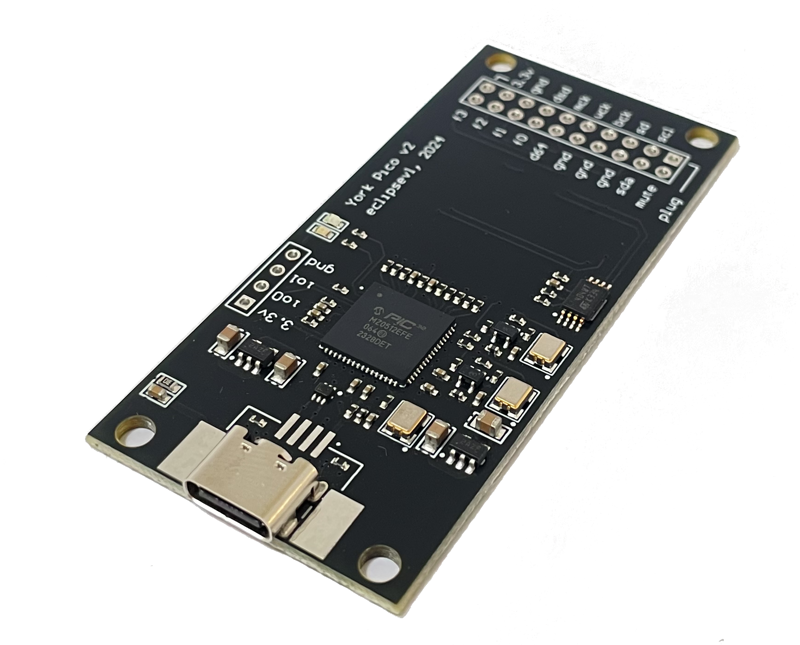

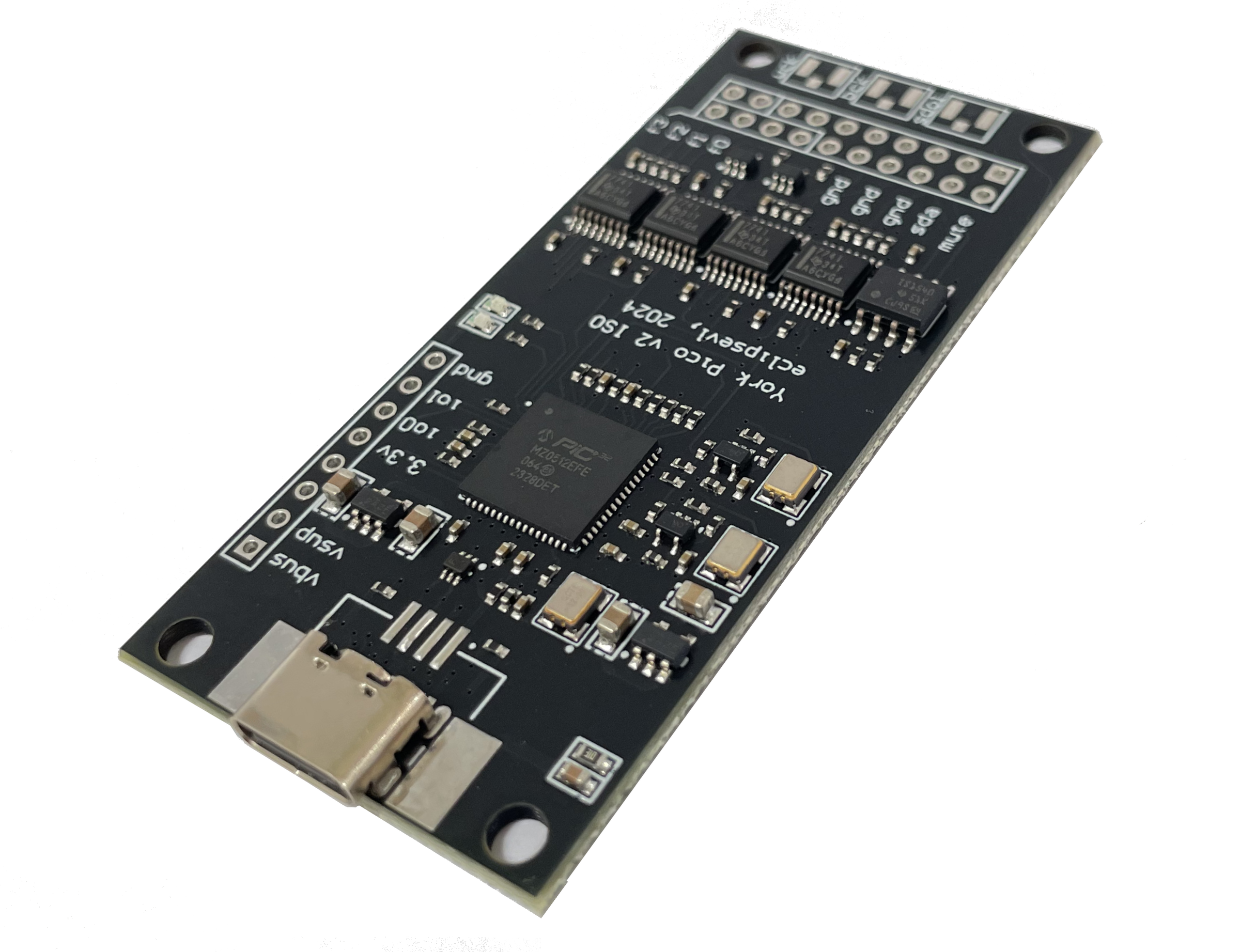

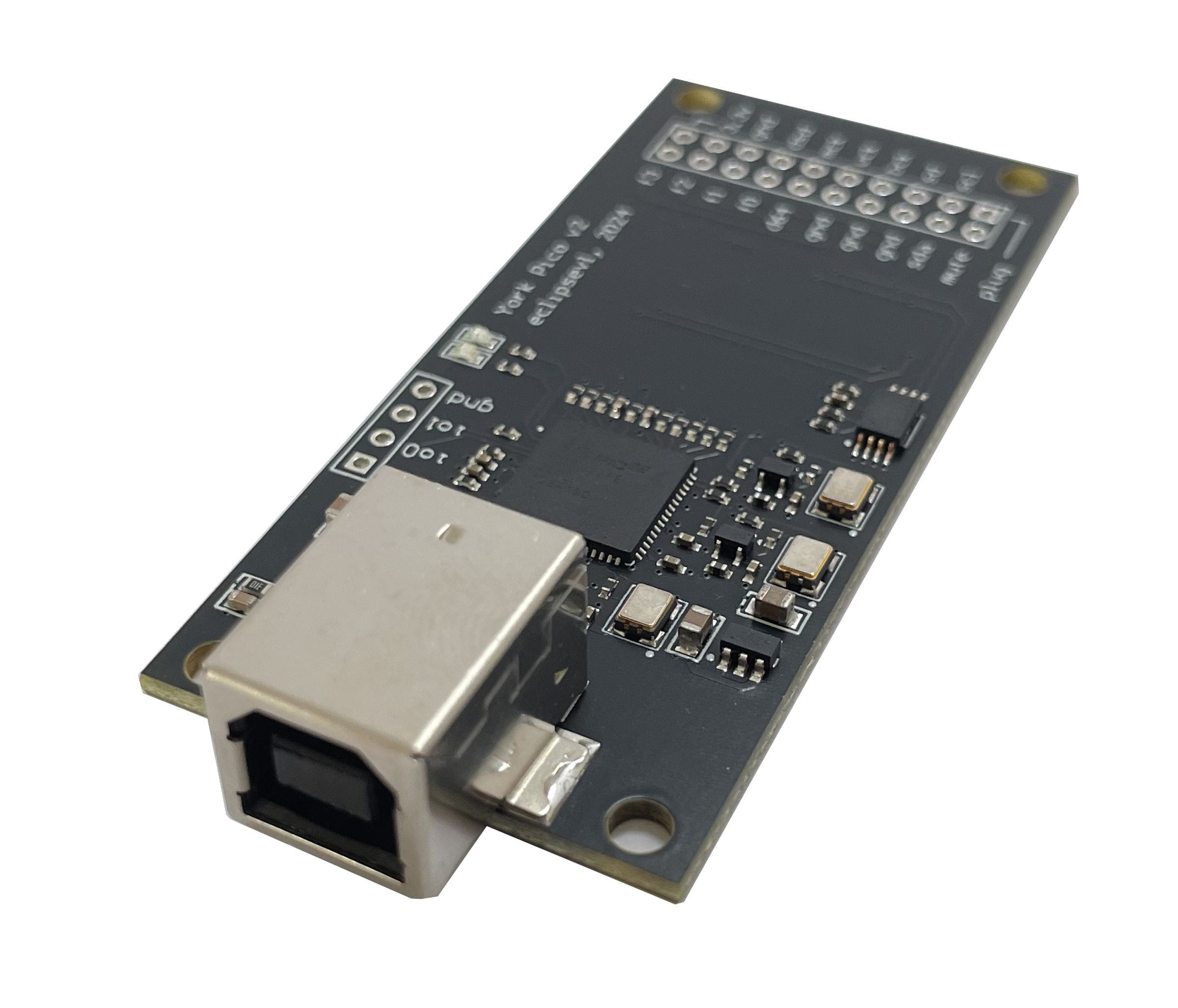

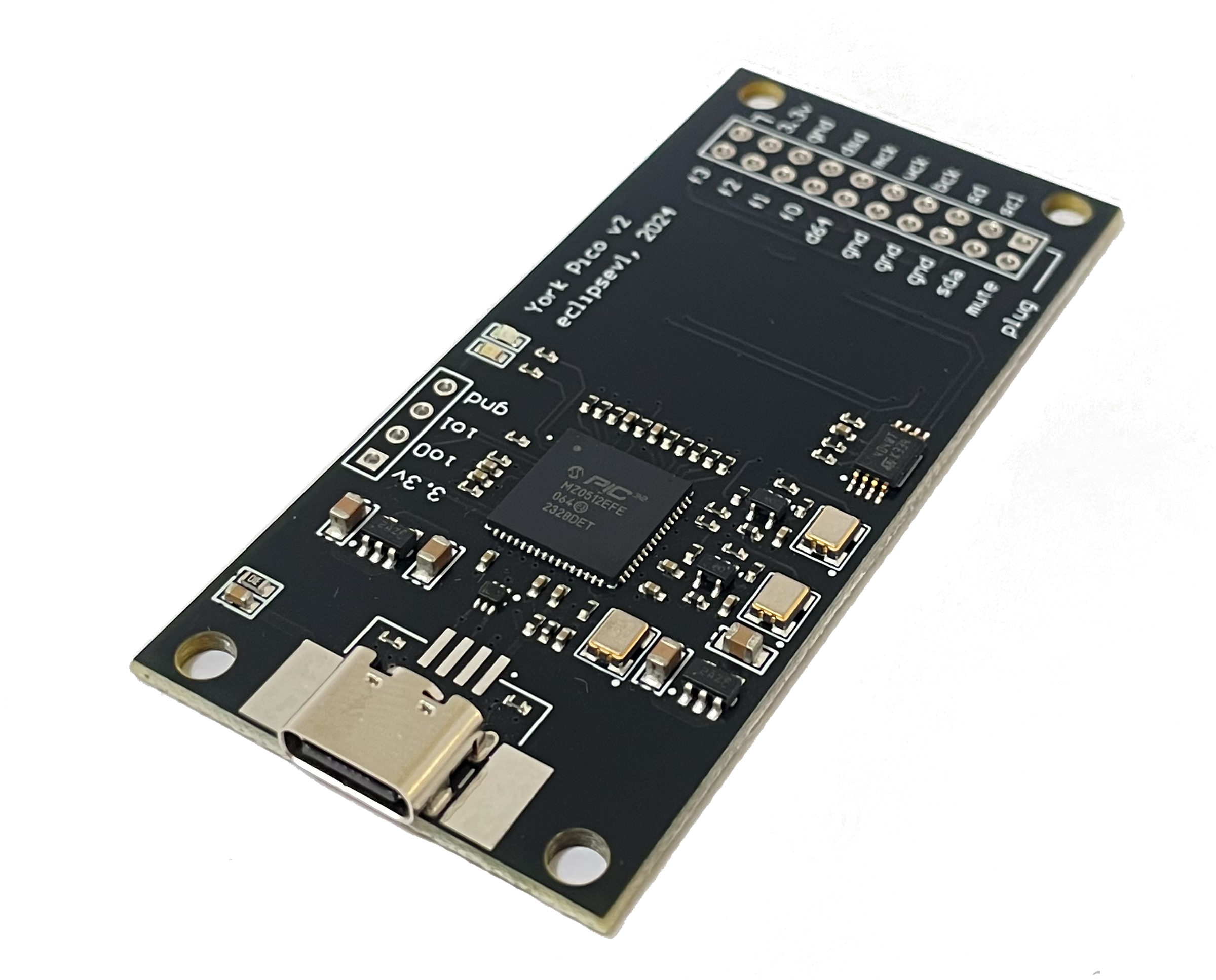

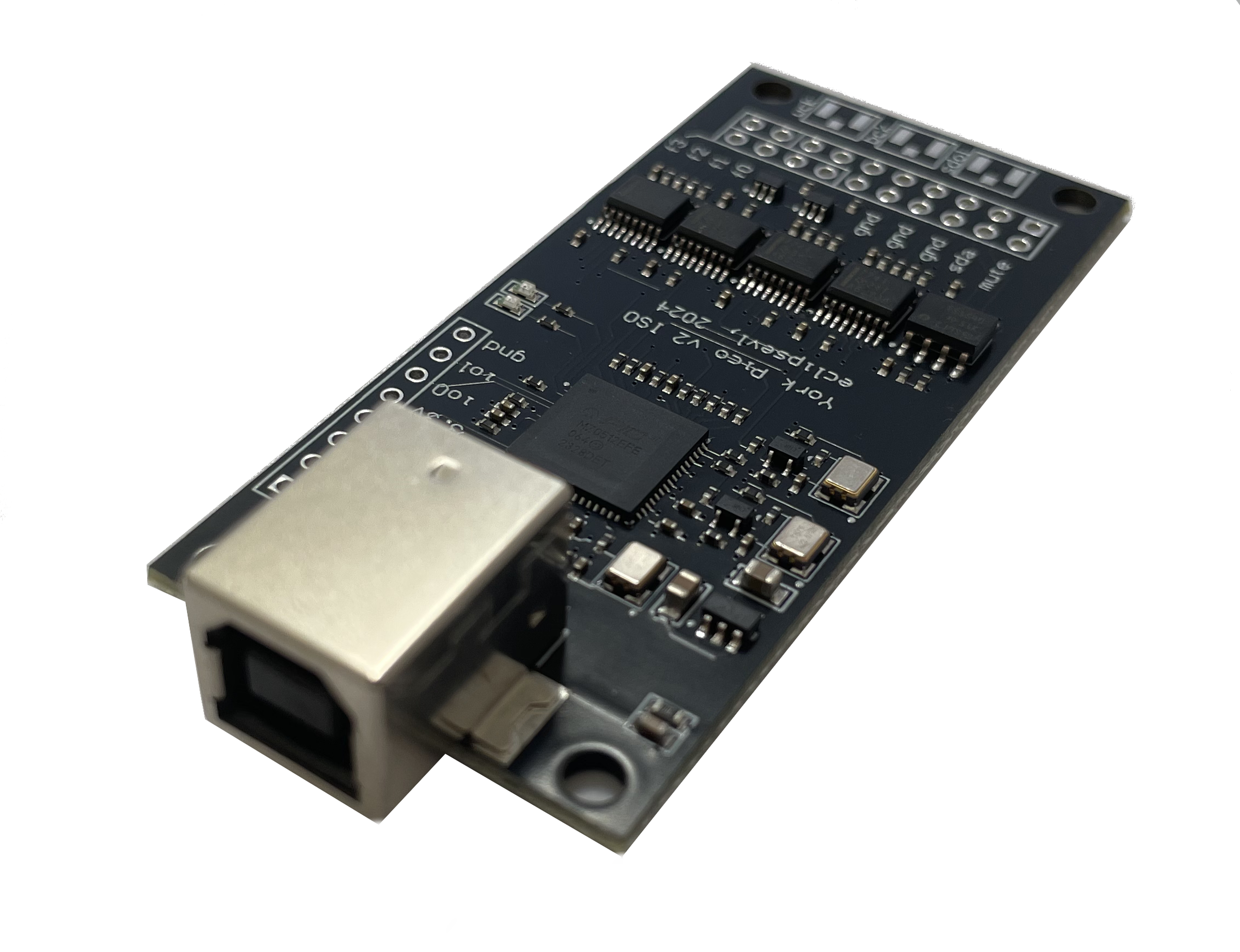

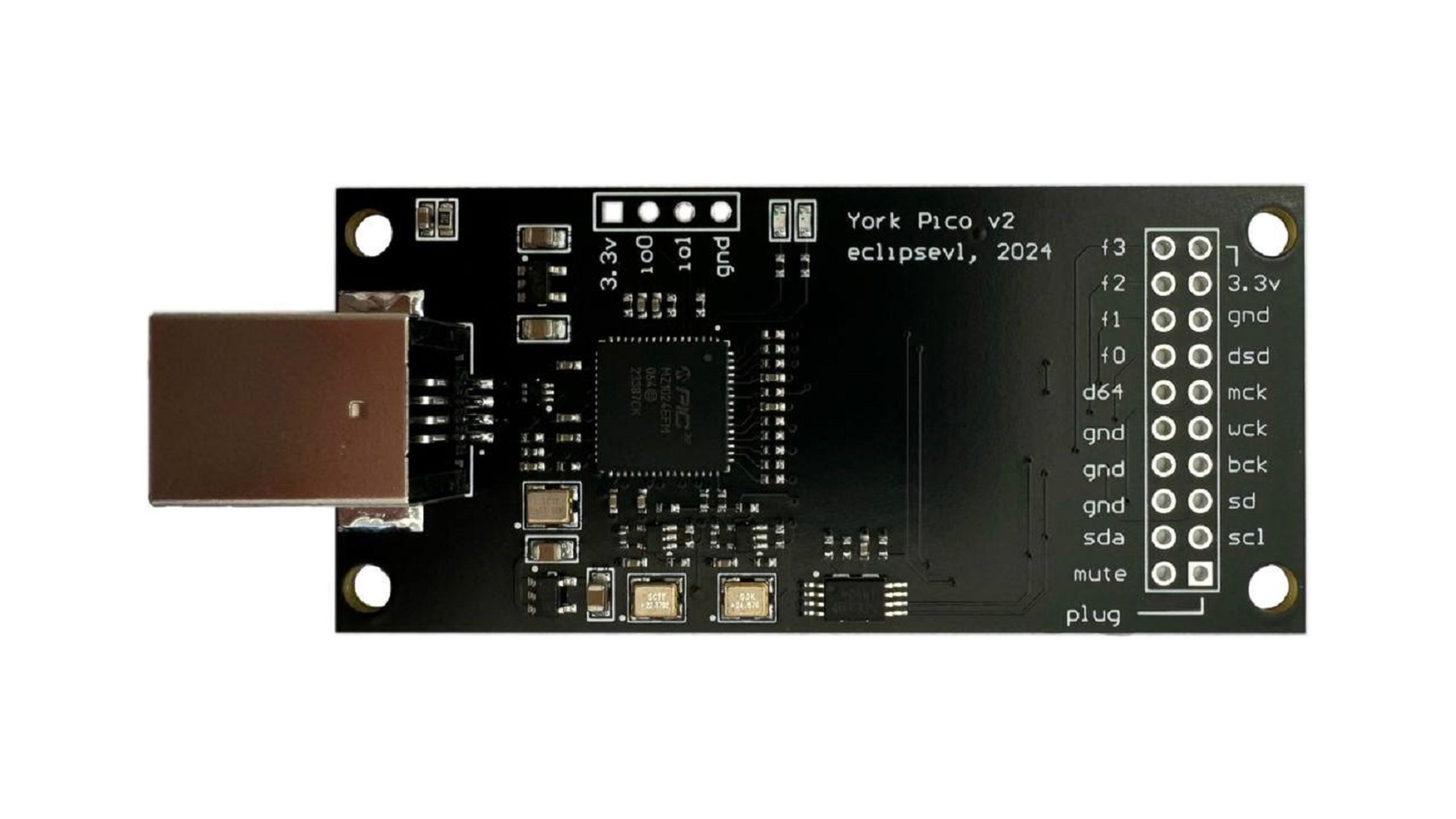

York is a versatile USB interface module for I2S/TDM audio input/output and user device control from PC thru I2C/GPIO API. The device is fully software configurable with the help of a cross platform config tool. Supports sampling rates up to 384kHz and I2S/TDM/PCM formats. Available in USB-C and USB-B versions. Supports integration with DSP configuration tools.

It also supports direct connection of the NOS DACs.

What makes it special?

The York USB interface module offers flexibility for use in wide range of applications than just a regular USB to I2S interface. It combines UAC2 interface for audio input and output and HID interface for user control, such as I2C transactions and GPIO control.

More information on DIYAudio:

https://www.diyaudio.com/community/threads/usb-uac2-hid-multichannel-input-output-interface-york.413504/#

Features

1. Flexible Configuration: Device settings and firmware updates can be managed through a dedicated PC utility.
2. HID Interface: Service information and device configuration.
3. Optional Serial Interface (virtual COM port)
4. Multiple Audio Output Options: Supports I2S, S/PDIF, TDM and interfaces for NOS DACs (e.g., AD1862, PCM63, TDA1541 etc).
5. Various Clocking Options: Includes module oscillators, external clock (slave mode), and internal PLL clocking.
6. I2C Integration with DSP: Allows simultaneous audio input/output and DSP programming, like ADAU1452/67
7. No drivers required for Windows 10/11, Linux, MacOS, Android, iOS.
8. Bootloader: Enables easy and fail safe firmware update.

Audio Interface Capabilities

1. Input: Up to 8 channels, up to 192kHz (384kHz with external clocking).
2. Output: Up to 8 channels, up to 192kHz (384kHz with external clocking).

More details about the possible configurations are listed in the data sheet

Device is based on PIC32MZ MIPS MCU with integrated High-Speed USB PHY. It has DSP extension instruction set enabling optional on-board DSP features.

Module is equipped with low noise 22.5792 and 24.576MHz audio clocks for 44.1 and 48kHz grids which are used to clock MCUs audio interface. The oscillators are powered by dedicated low noise LDO. External clocking option is supported with frequencies of 256/512/1024fs (where fs = 44.1/48kHz).

All device parameters can be accessed with a cross-platform configuration tool
