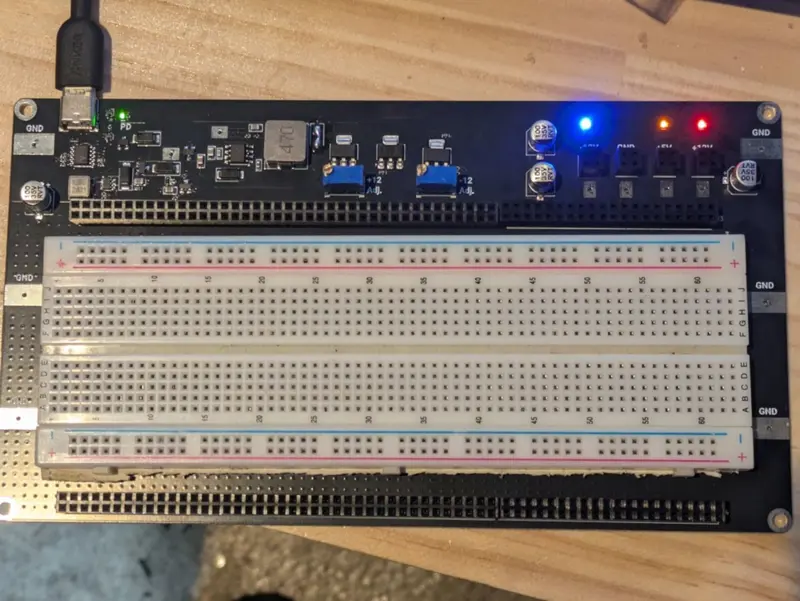

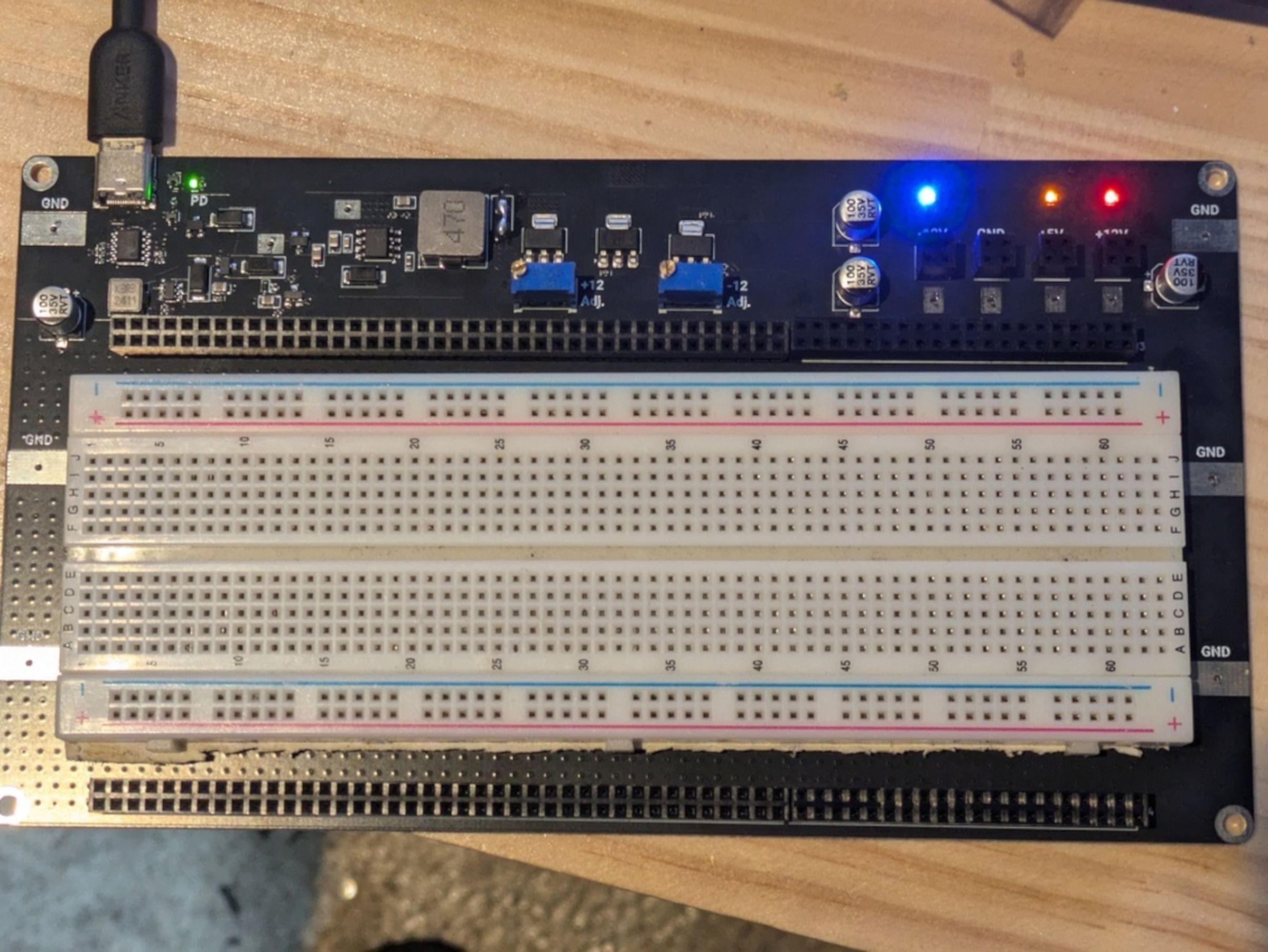

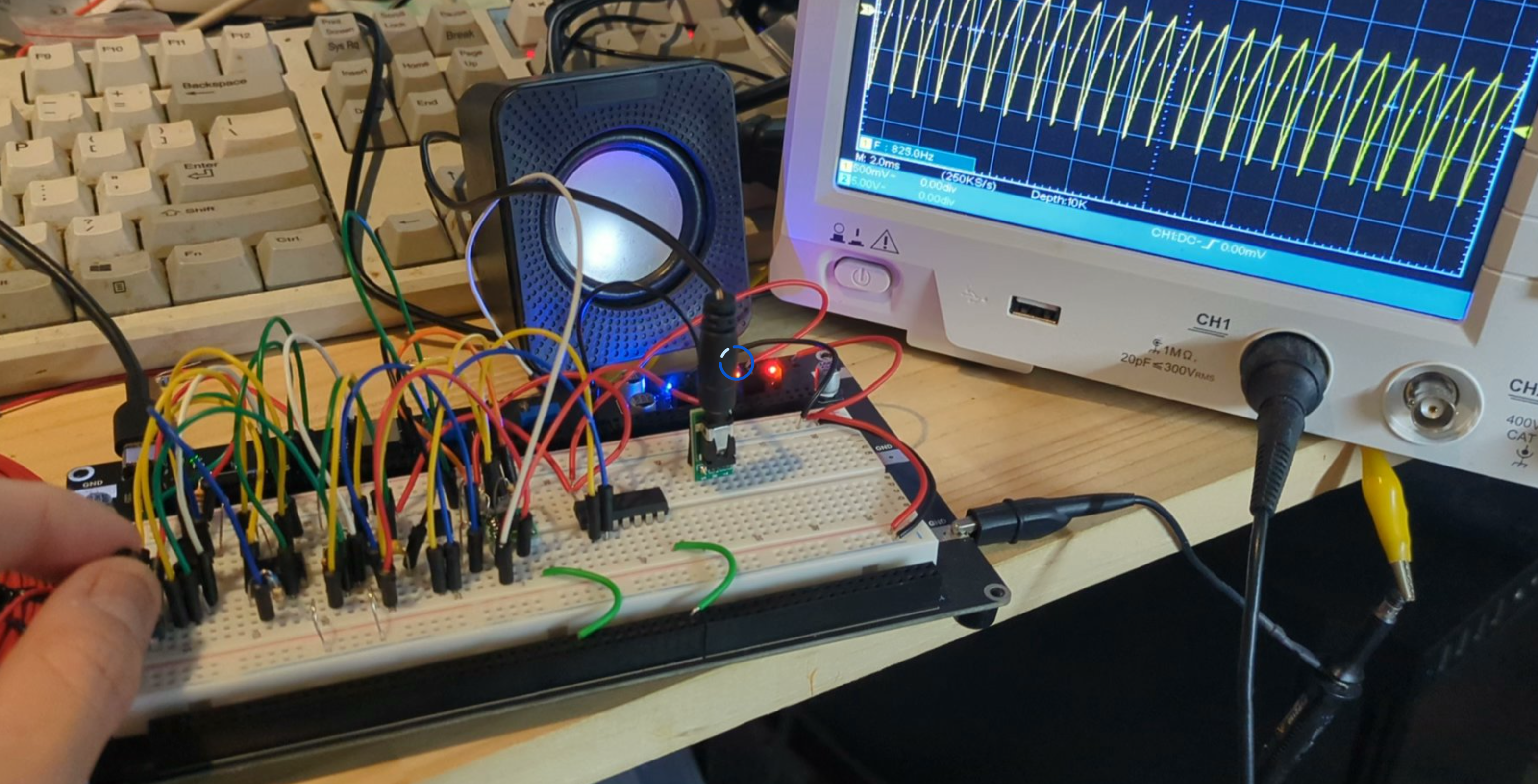

Breadboard Base for Analog Circuit Kit

Features

1. USB PD supported. Use 15V if the PD power source if available
2. Connecting to non-PD adapter/PCs, internal DC-DC can supply 15V(with a limited power which USB port can supply)
3. Confirmed working with M2 Macbook Air and Chuwi Freebook(meaning you can use this board with normal USB type-C port on your PC)
4. Each rail can source at maximum: +12V 1.5A, -12V 1.5A, +5V 1A (depending on the condition, Adapter you use)
5. Has 15V(unregulated) and -15V(unregulated) test point for the convinience of advanced users..

Kit Contents

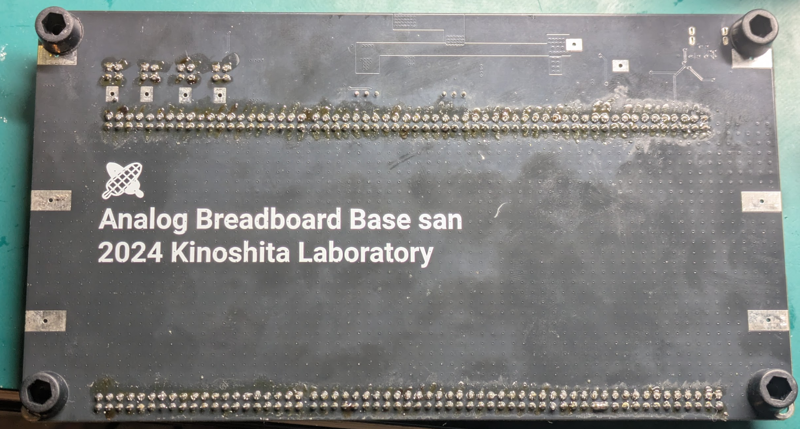

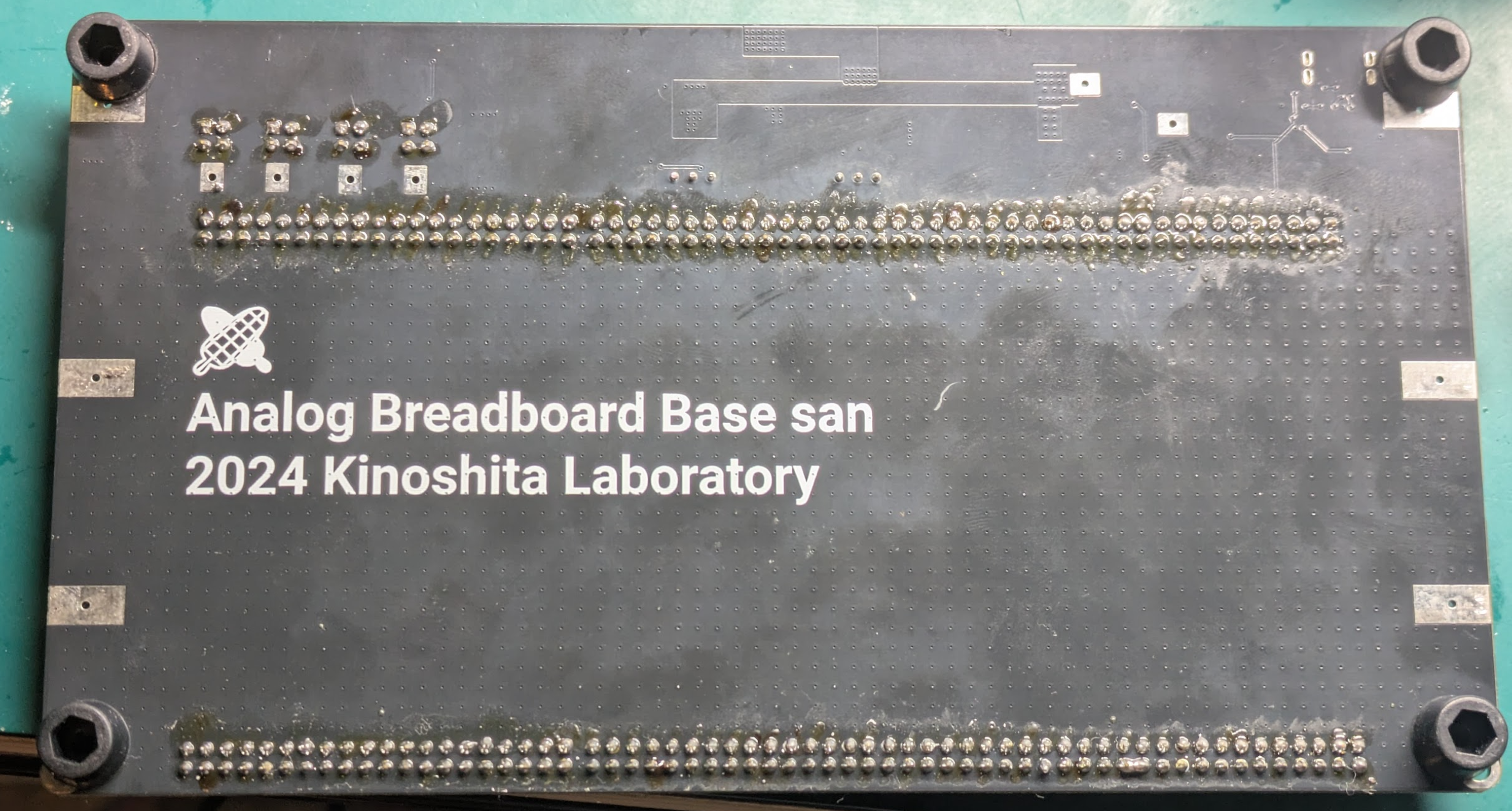

1. Pre-assembled circuit board
2. 2x2 pin socket connector(4 pcs.)
3. 2x40 pin socket connector(2 pcs.)
4. 2x20 pin socket connector(2 pcs.)

N.B. Kit does not contain Breadboard. Please prepare your own!

What you will need

1. USB Type-C Adapter(PD 15V supported) or PC/Mac with USB Type-C
2. 2mm flat head screwdriver
3. Multimeter
4. Breadboard

How to assemble

1. Solder the included connectors to the appropriate places on the circuit board.
2. Connect USB Type-C adapter to the PCB and adjust both +12 and -12 potentiometer with screwdriver.
