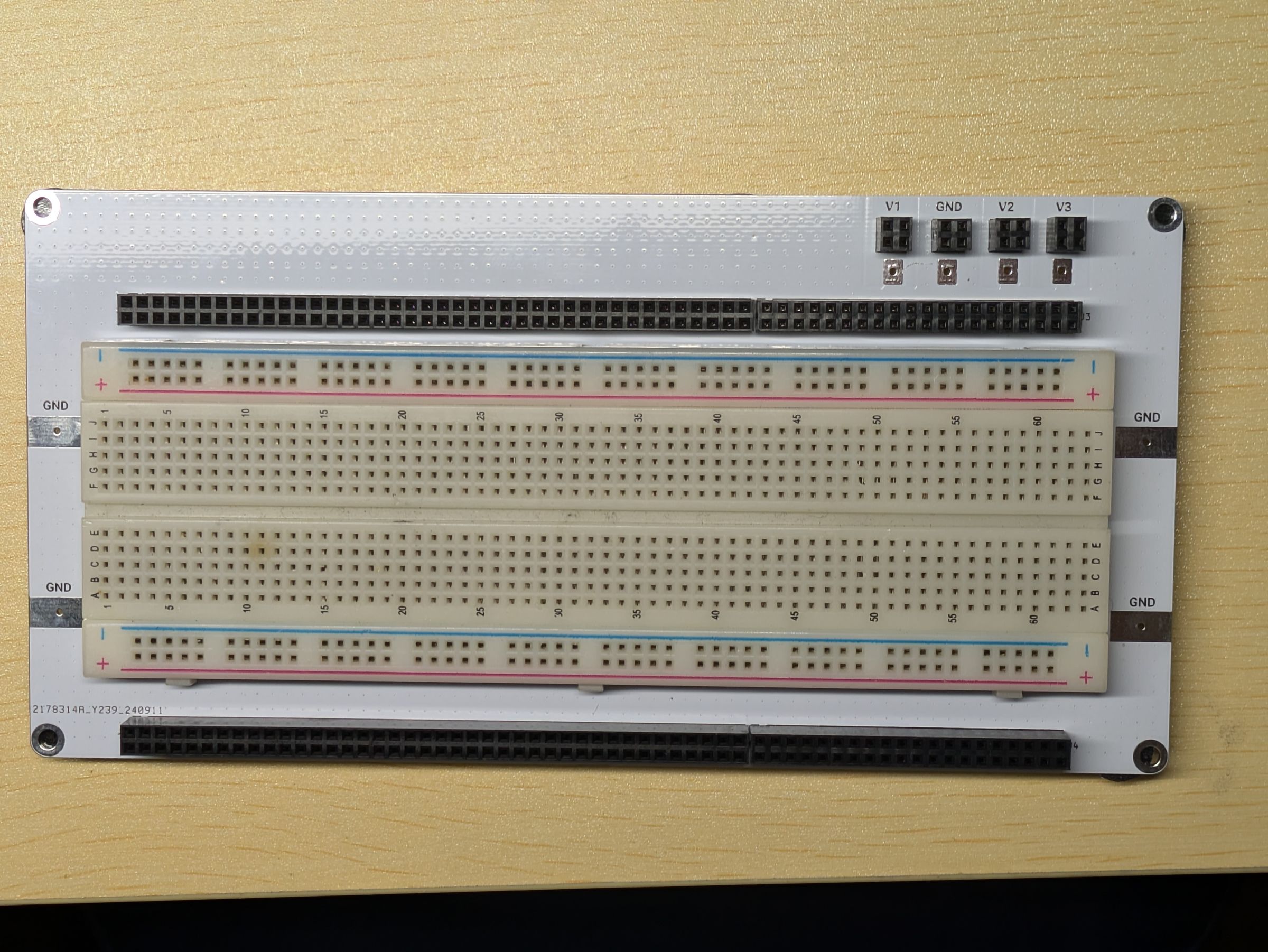

GND Enhanced Breadboard Base Kit
Sold by Kinoshita Laboratory · in Dev Boards
Powerless version of Analog Breadboard Base san
Add-ons
Assembled version
Preassembled, tested product
+$20.00 per unit
10 in stock
Volume Pricing
| Qty | Price Per Unit |
|---|---|
📦 Ships from: Japan
🚚 Flat rate shipping within Japan: $10.00 (international rate may differ)
Features

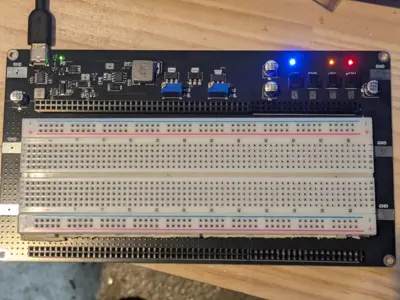

This is a power-less version of our product "Analog Breadboard Base san"
You can use it to extend above kit.

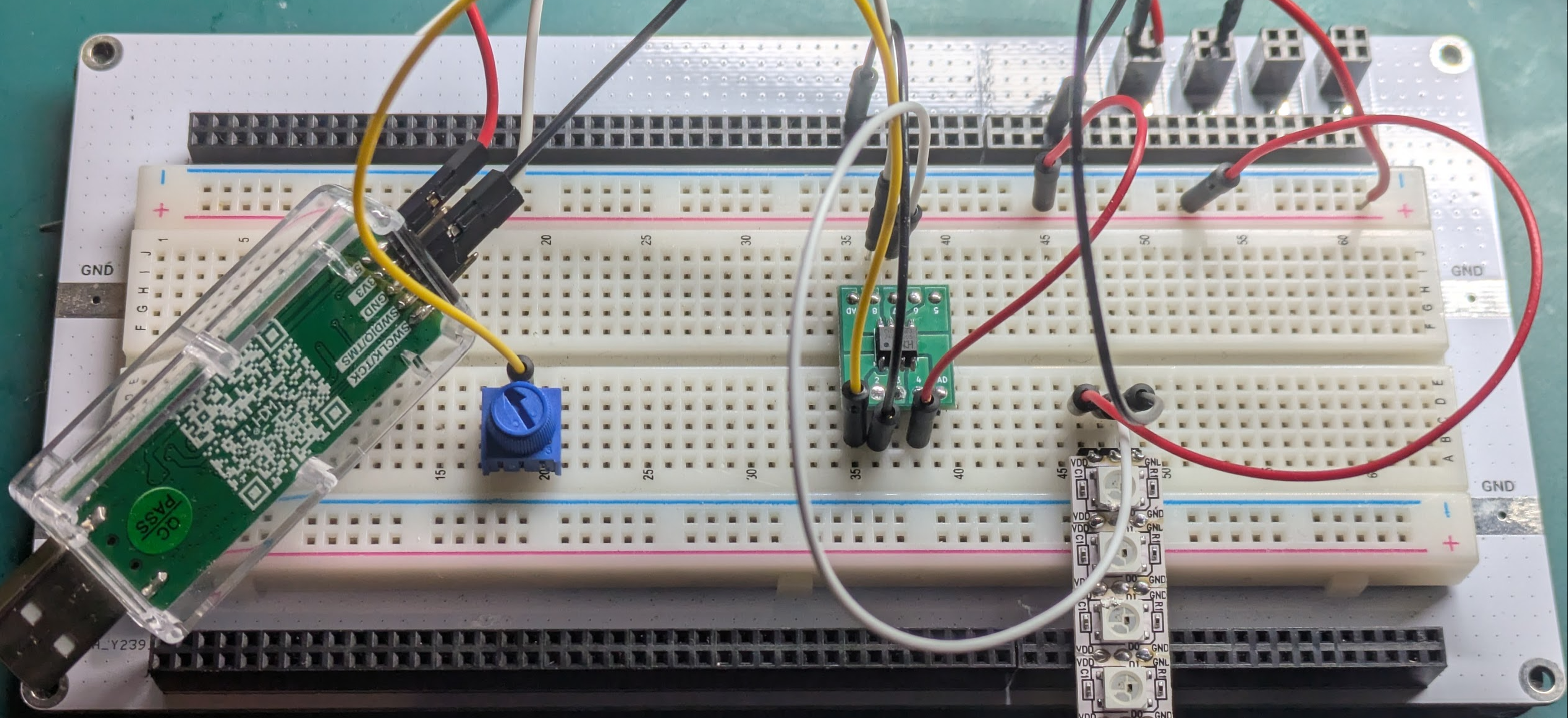

Alternatively, by only using this breadboard base to obtain some improvements such as:
- Reducing noise
- Easy to assemble with a lot of GNDs
- GND Pads for Oscilloscope etc.
Kit Contents
- Print circuit board
- 2x2 pin socket connector(4 pcs.)
- 2x40 pin socket connector(2 pcs.)
- 2x20 pin socket connector(2 pcs.)
How to assemble

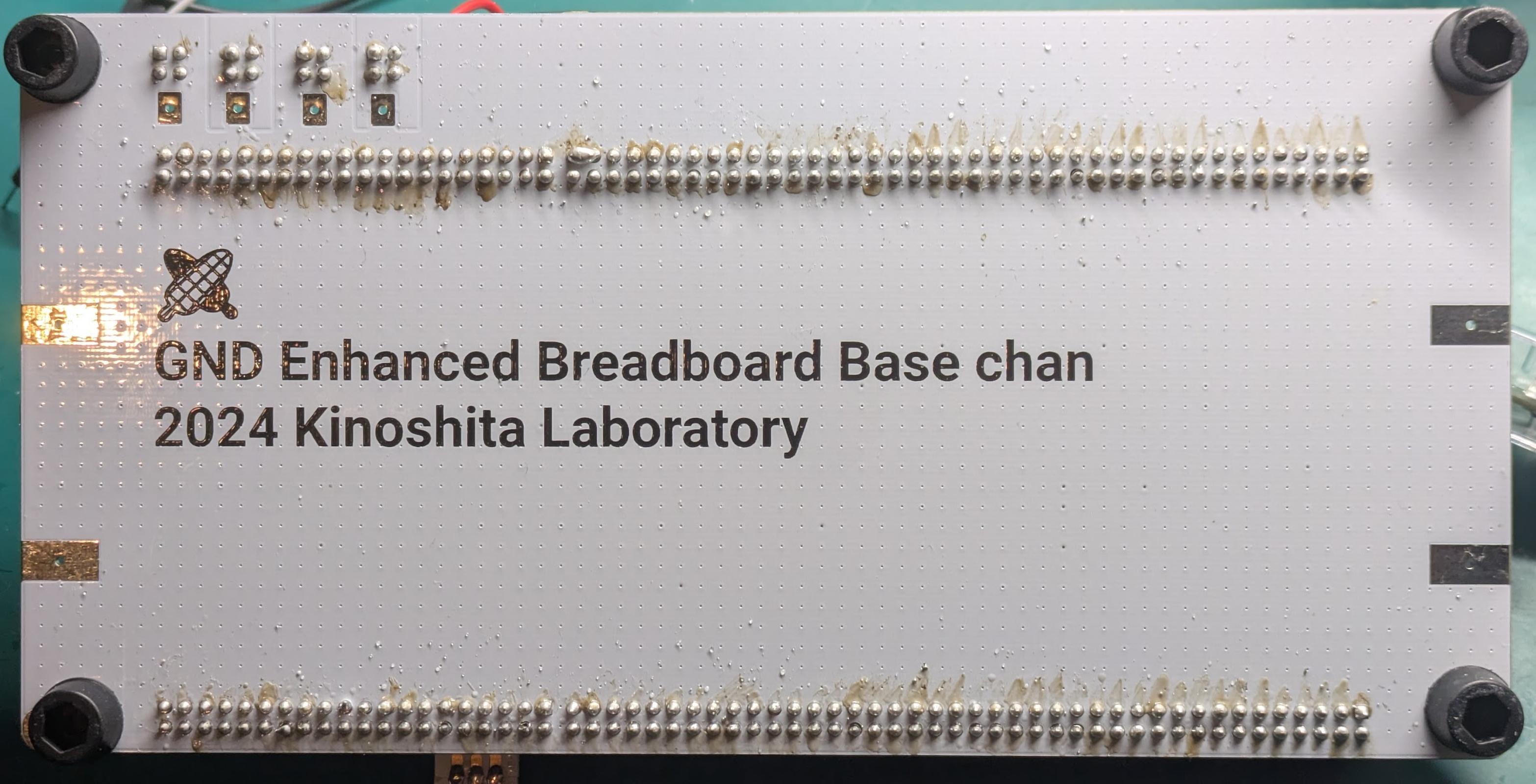

- Solder the included connectors to the appropriate places on the circuit board.
HS Code:
8543.70
📄 Documentation:
https://github.com/kinoshita-lab/analog_breadboard_base_san ↗
🔗 Attribution / Original Work:
https://github.com/kinoshita-lab/analog_breadboard_base_san ↗
