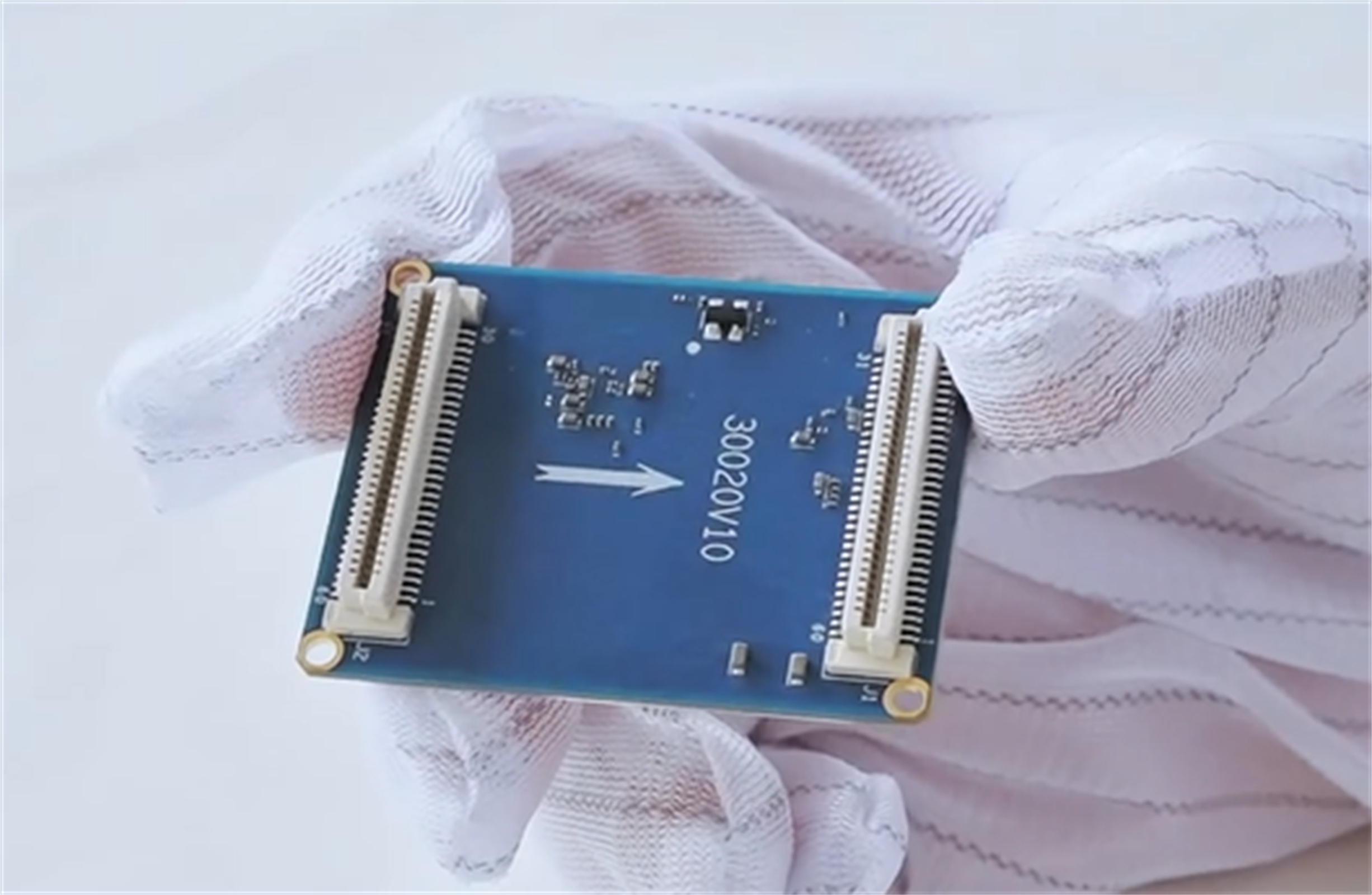

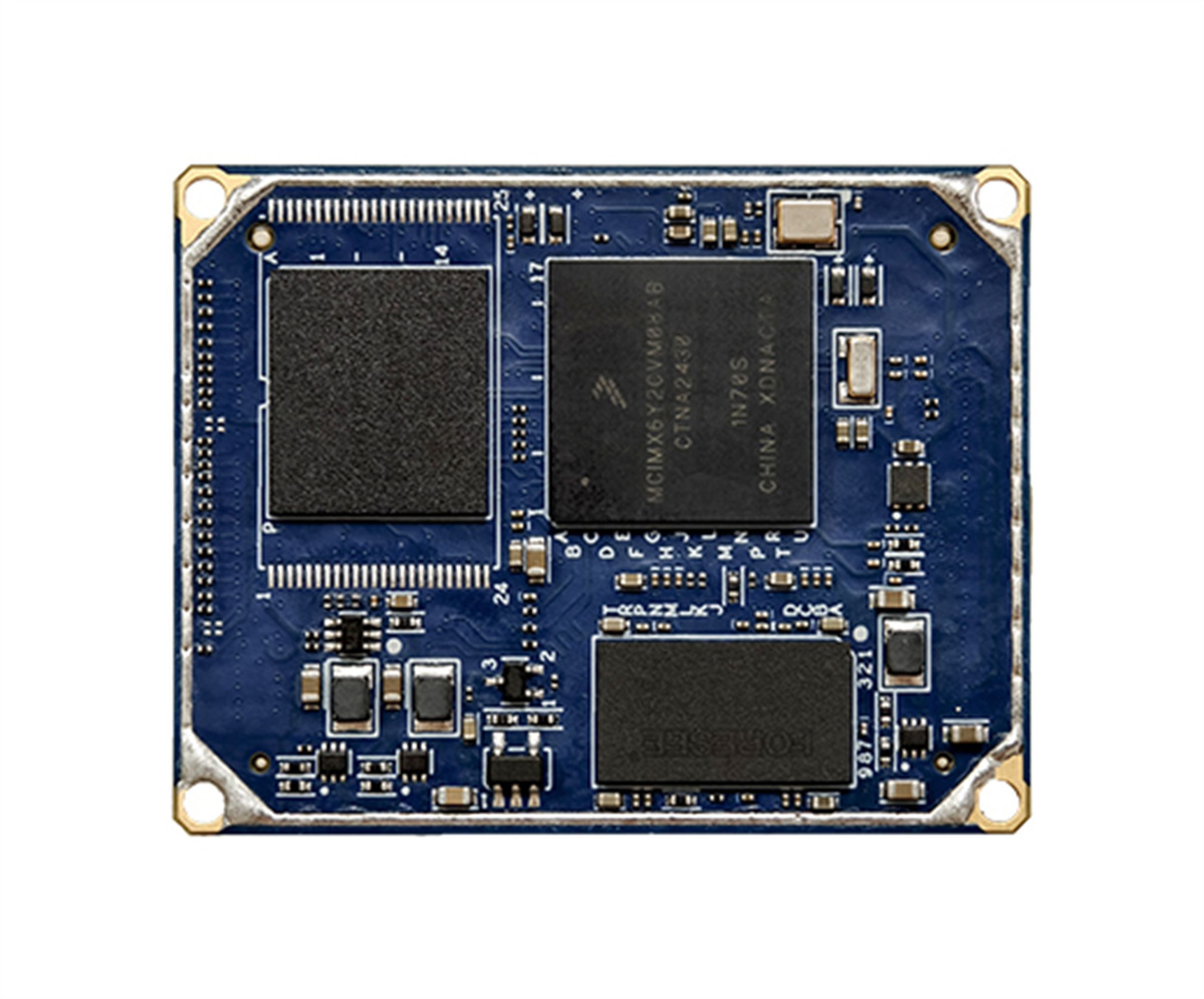

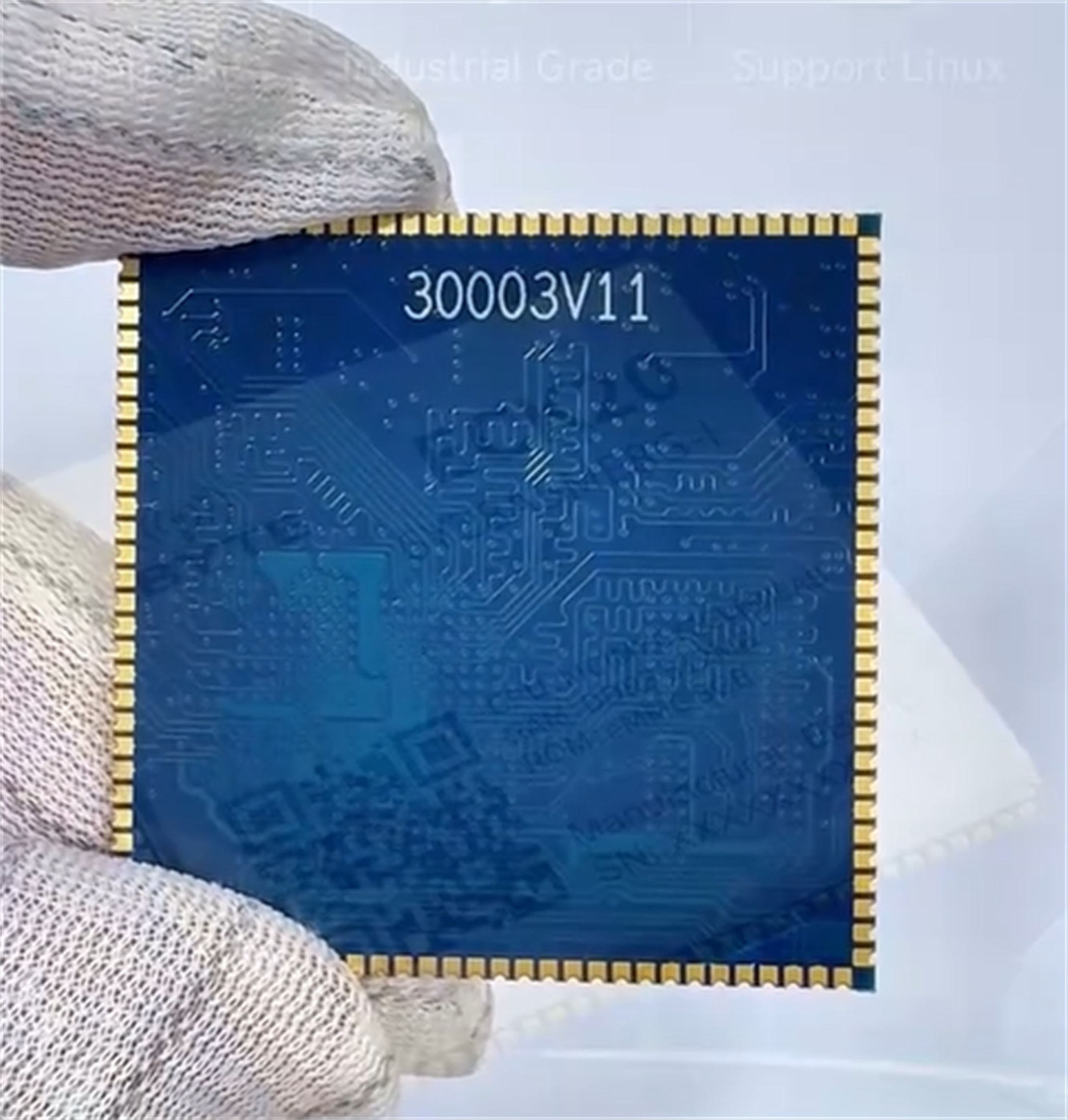

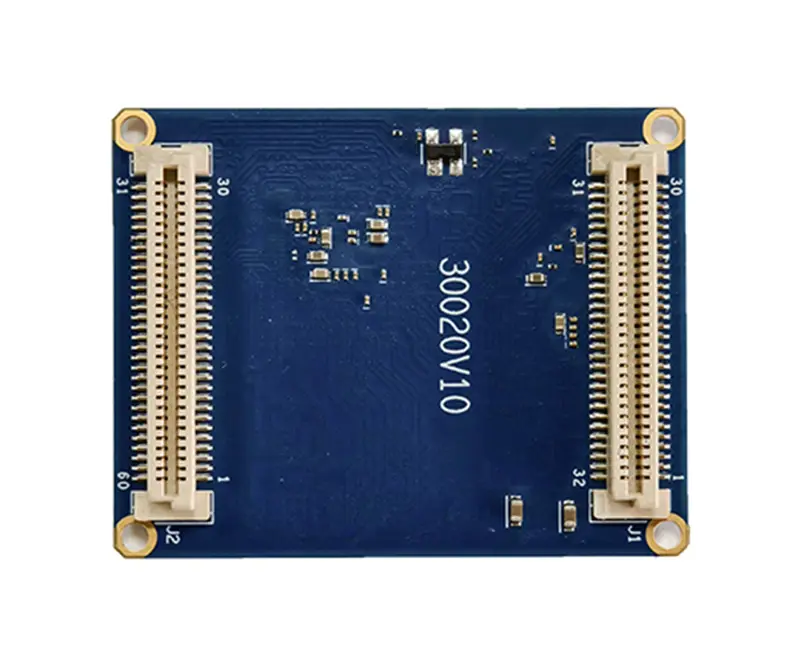

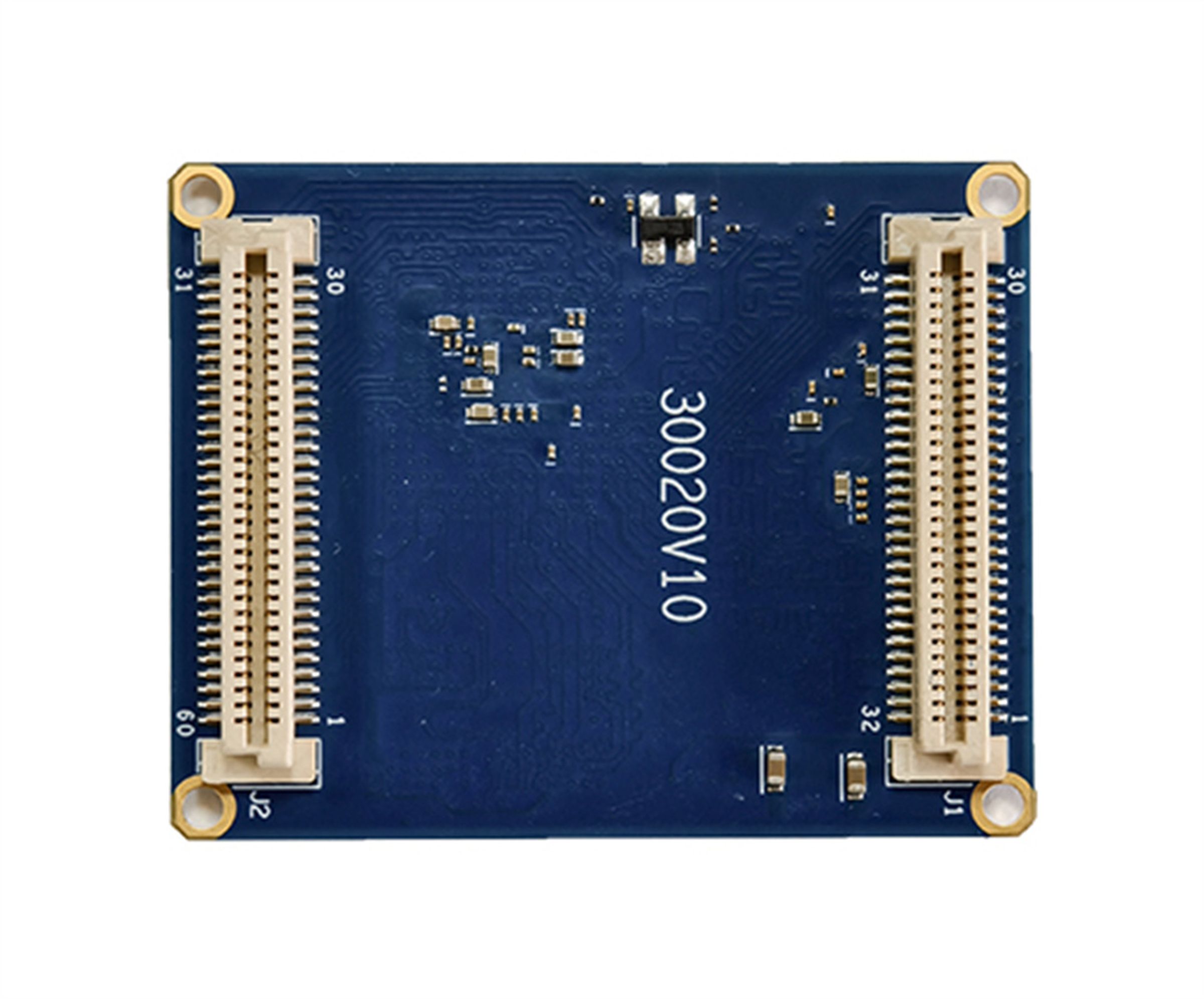

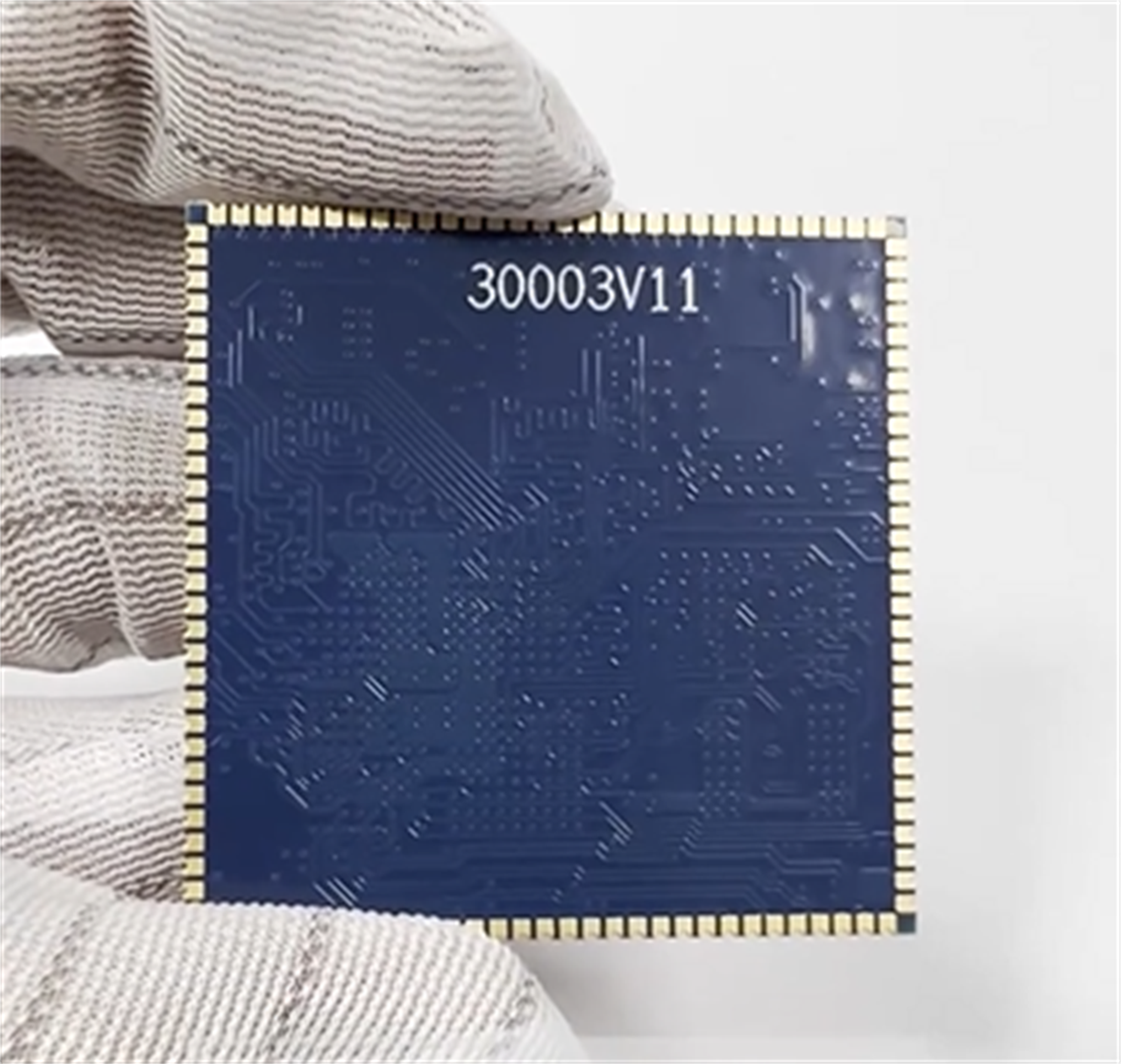

The EBYTE ECK20 series are embedded core boards based on the NXP i.MX6ULL processor (Cortex-A7, up to 792MHz). The ECK20-6Y28C series uses a 120-pin BTB connector, while the ECK20-6Y28A series uses a 120-pin stamp-hole package. Both series offer optional 256/512MB DDR3L RAM and 512MB NAND Flash or 8GB eMMC storage, supporting a wealth of I/O resources like LCD, Ethernet, USB, UART, and CAN. They are ideal for industrial control, HMI, and IoT applications.
| Model | RAM | Storage | Interface | Temp. Range | Size (mm) | Power Supply |
| :--- | :--- | :--- | :--- | :--- | :--- | :--- |
| ECK20-6Y28C5E8-I | 512MB DDR3L | 8GB eMMC | 120-pin BTB | -40℃ ~ +85℃ | 46×36×6.8 | DC +5V ±10% |
| ECK20-6Y28C5E8-C | 512MB DDR3L | 8GB eMMC | 120-pin BTB | 0℃ ~ +70℃ | 46×36×6.8 | DC +5V ±10% |

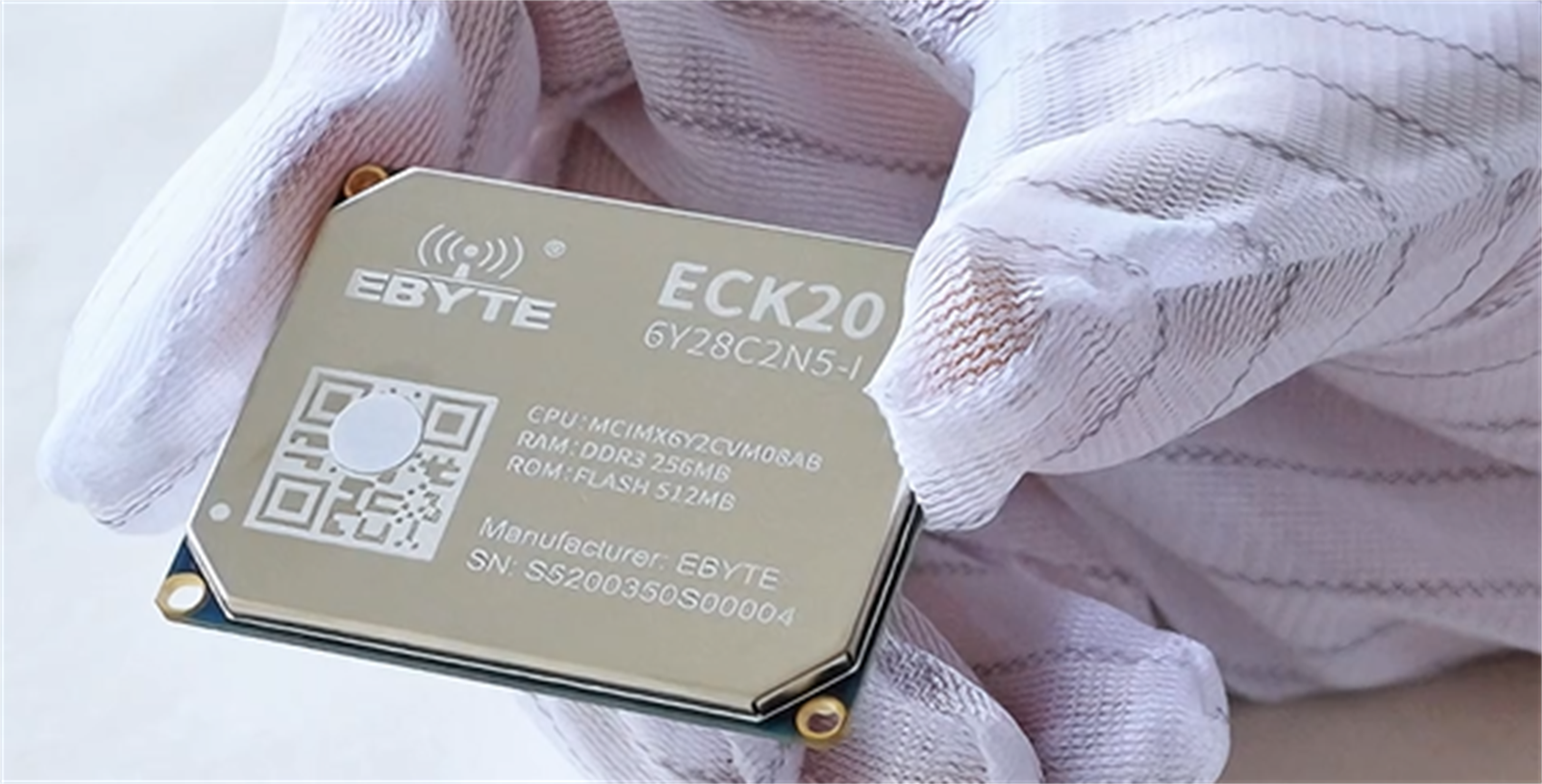

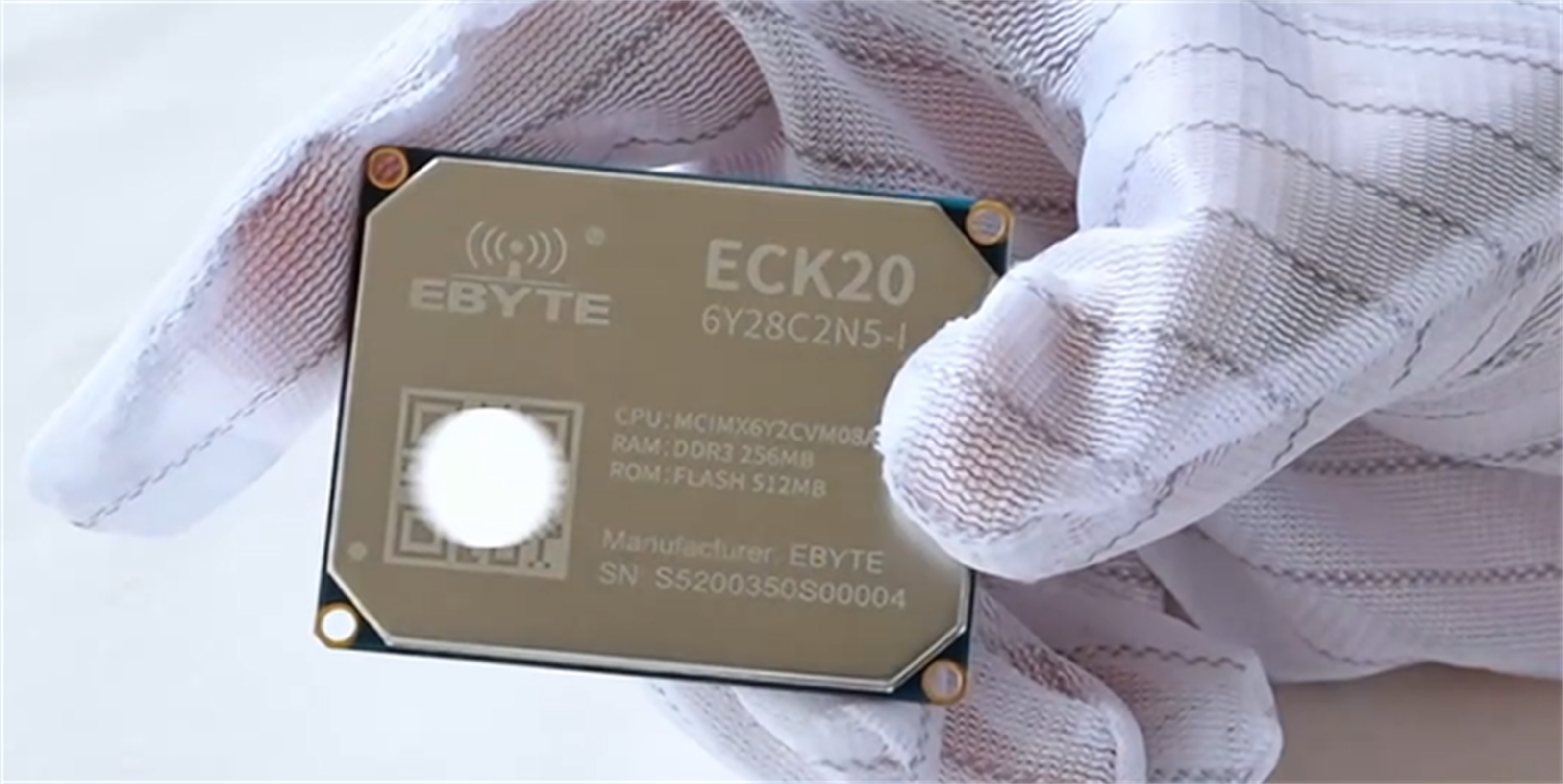

| ECK20-6Y28C2N5-I | 256MB DDR3L | 512MB NAND | 120-pin BTB | -40℃ ~ +85℃ | 46×36×6.8 | DC +5V ±10% |

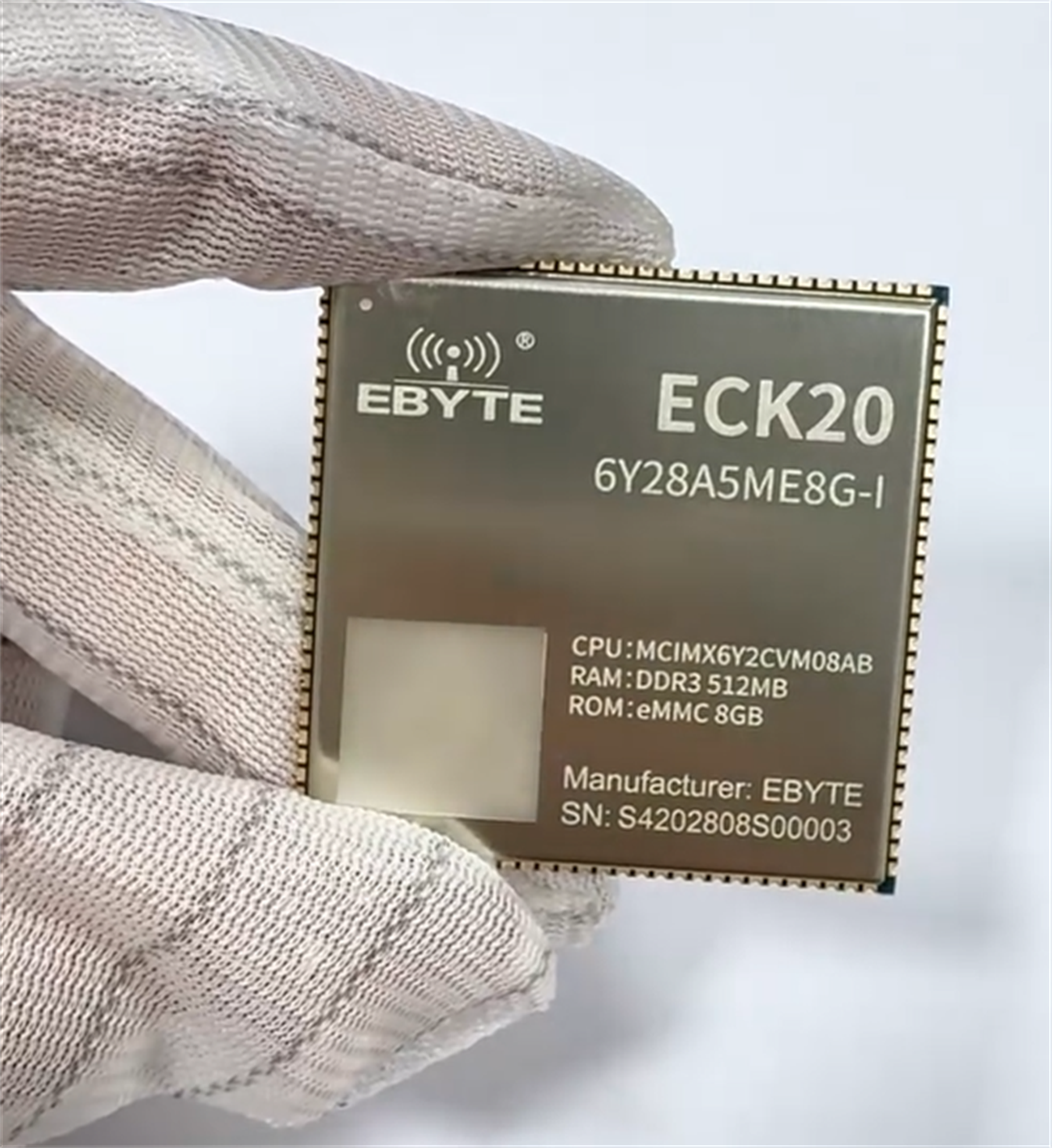

| ECK20-6Y28A5ME8G-I | 512MB DDR3L | 8GB eMMC | 120-pin Stamp Hole | -40℃ ~ +85℃ | 38×38×3 | DC +5V ±10% |
| ECK20-6Y28A5ME8G-C | 512MB DDR3L | 8GB eMMC | 120-pin Stamp Hole | 0℃ ~ +70℃ | 38×38×3 | DC +5V ±10% |

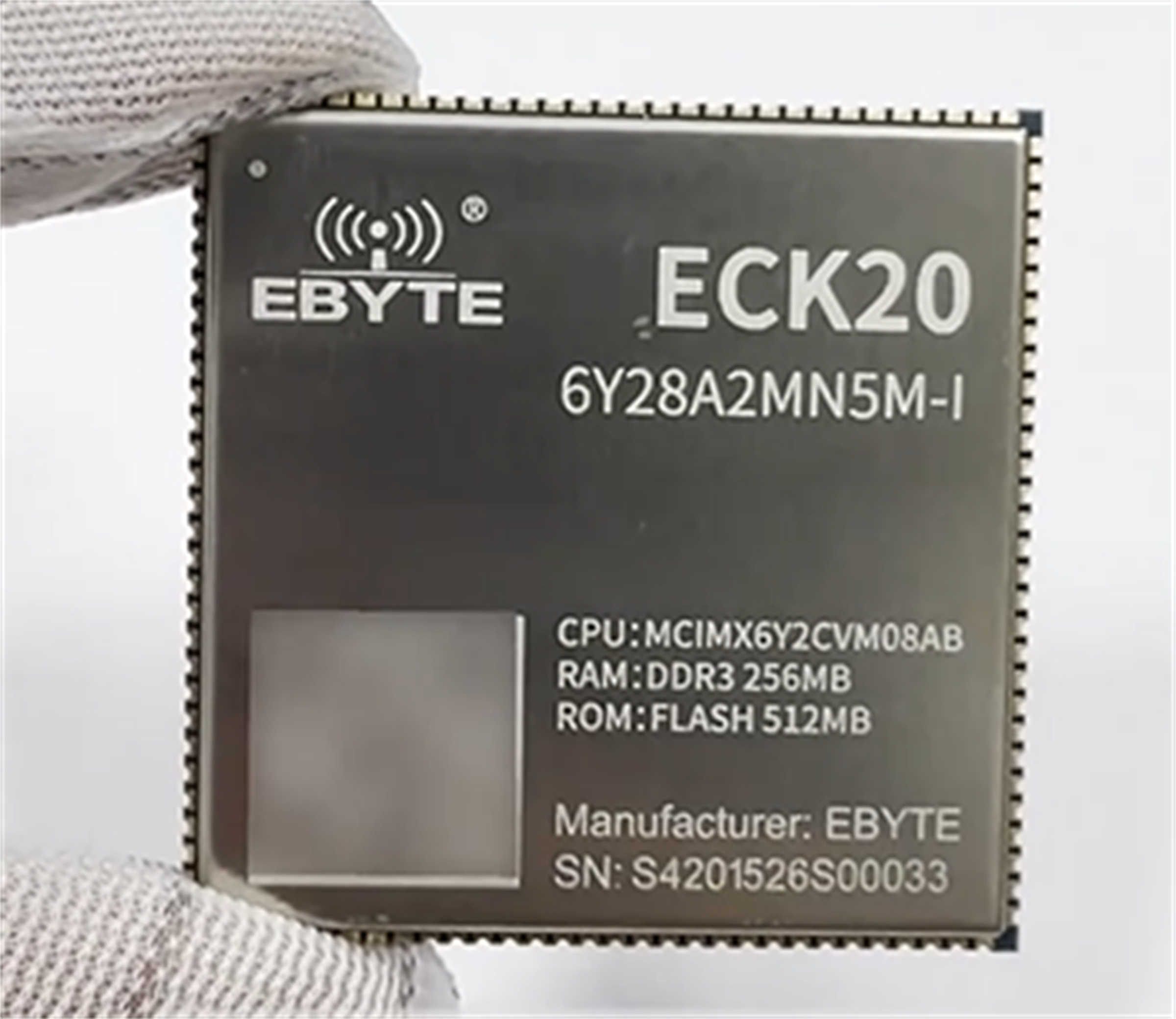

| ECK20-6Y28A2MN5M-I | 256MB DDR3L | 512MB NAND | 120-pin Stamp Hole | -40℃ ~ +85℃ | 38×38×3 | DC +5V ±10% |
