ECK10 Series NXP STM32MP1 Collection

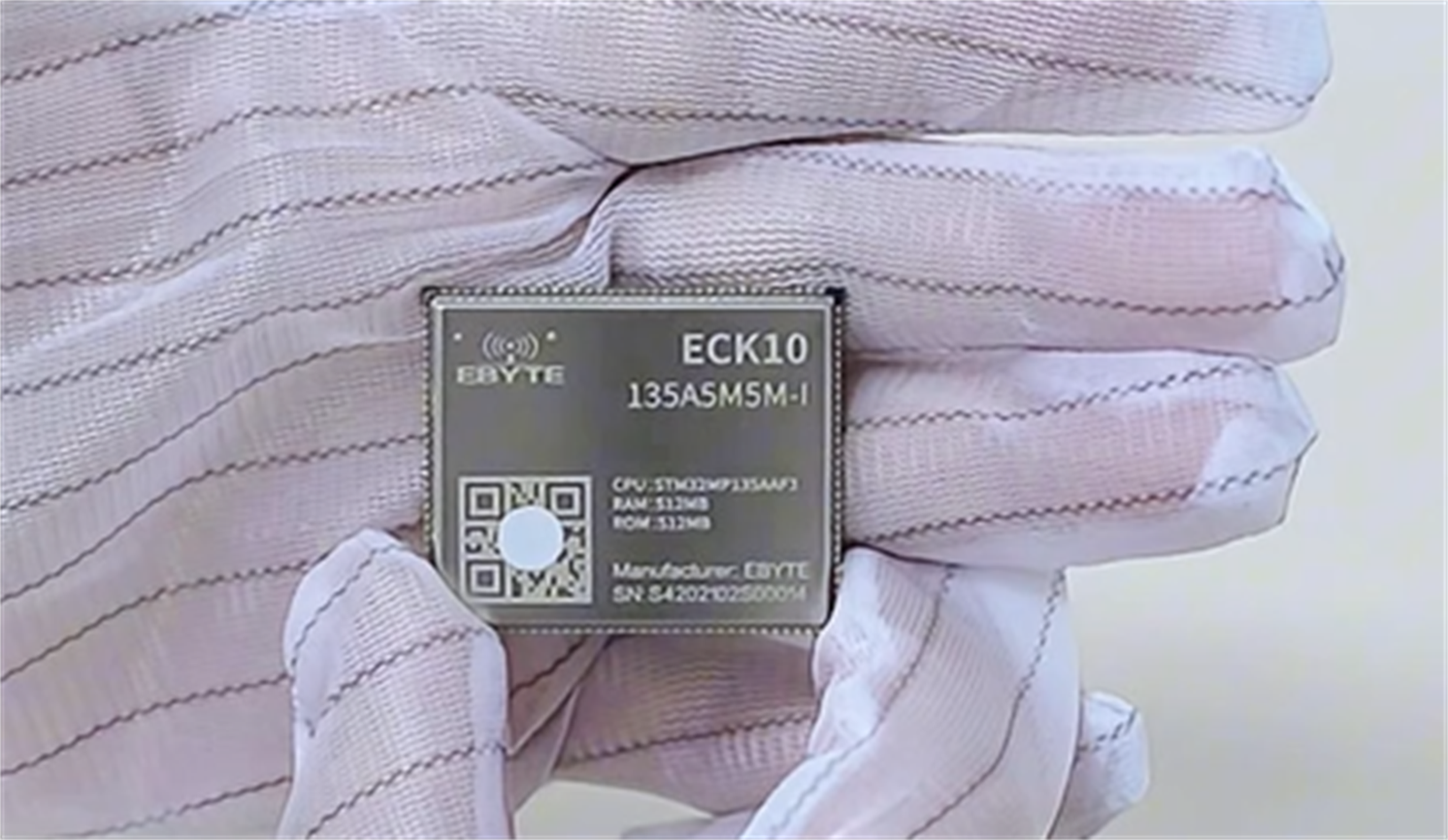

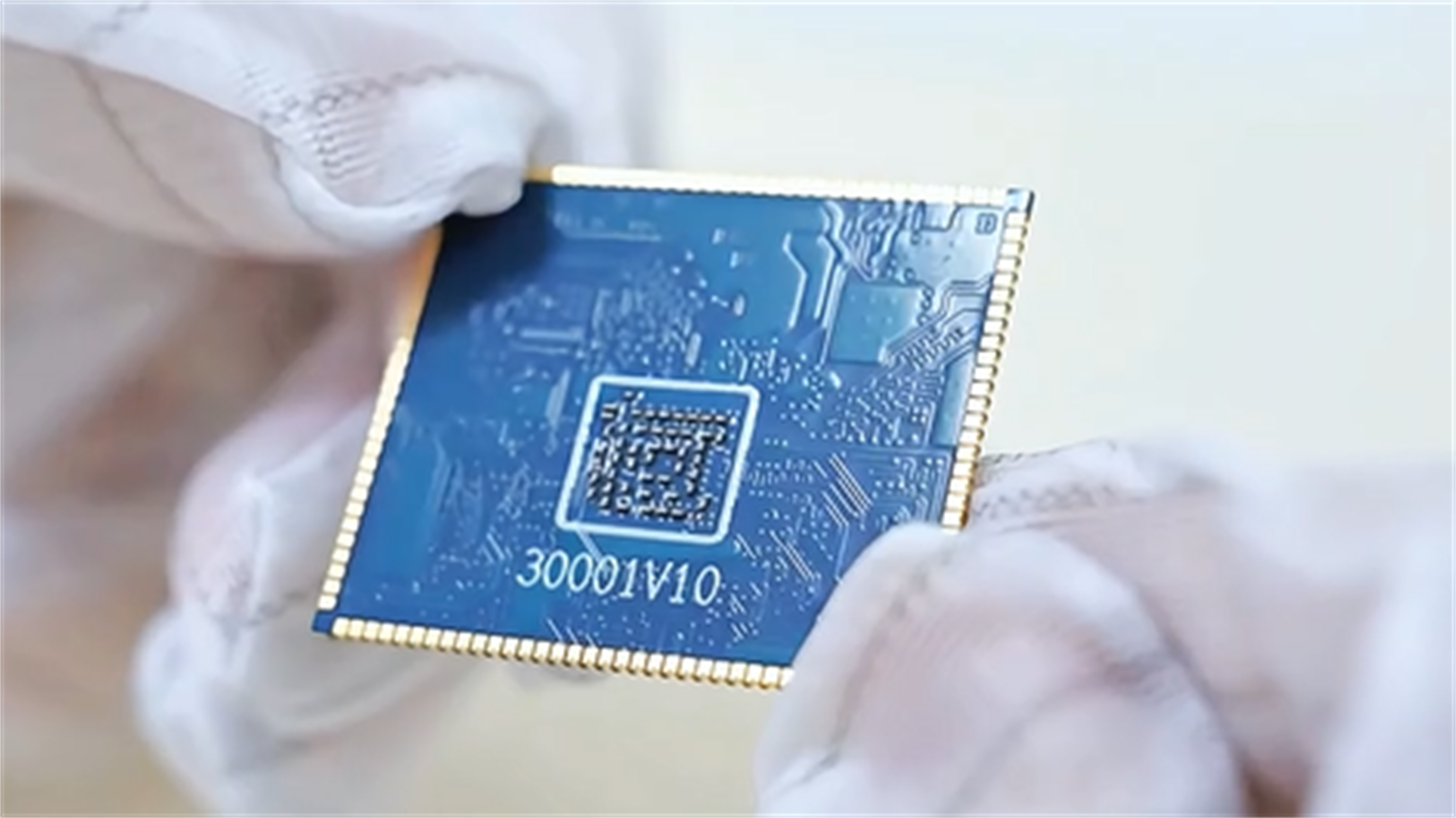

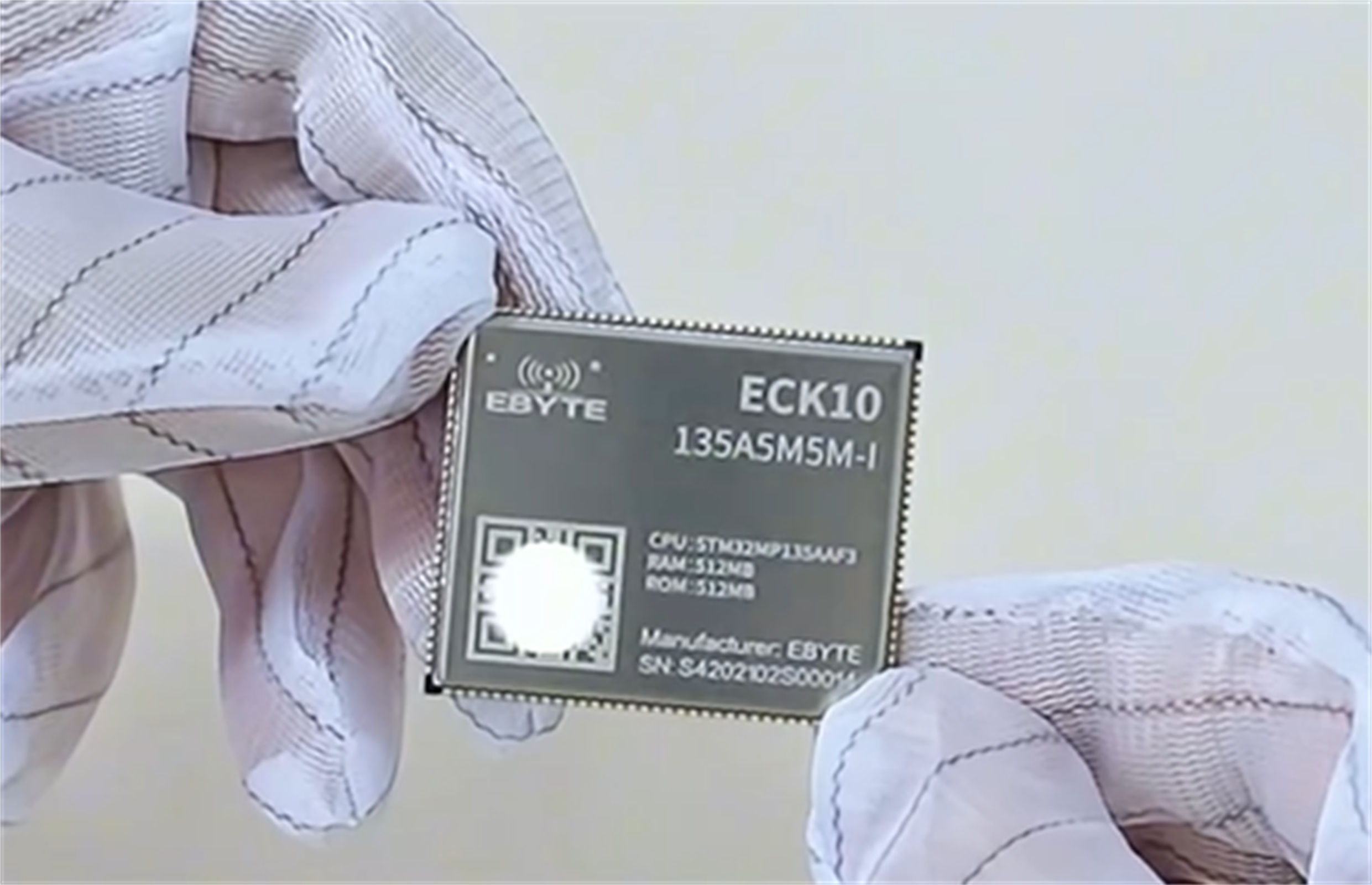

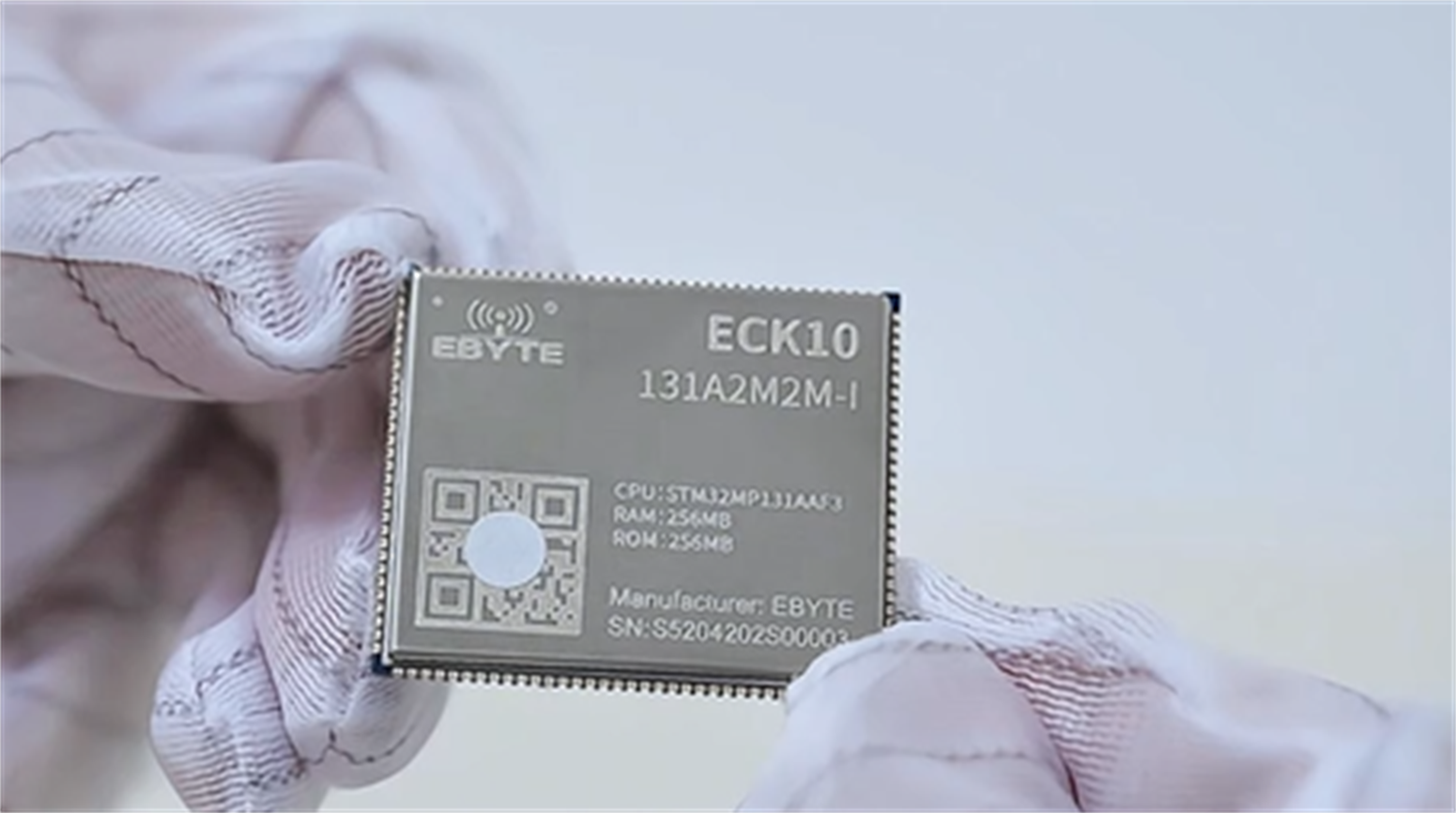

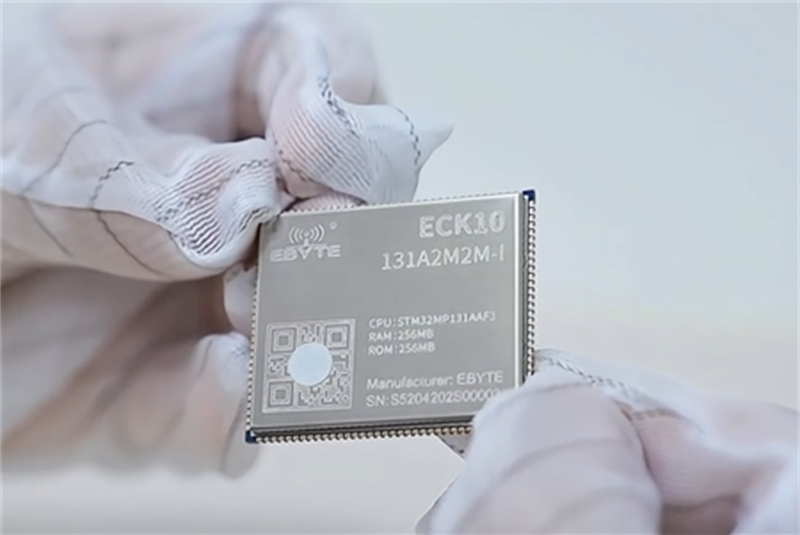

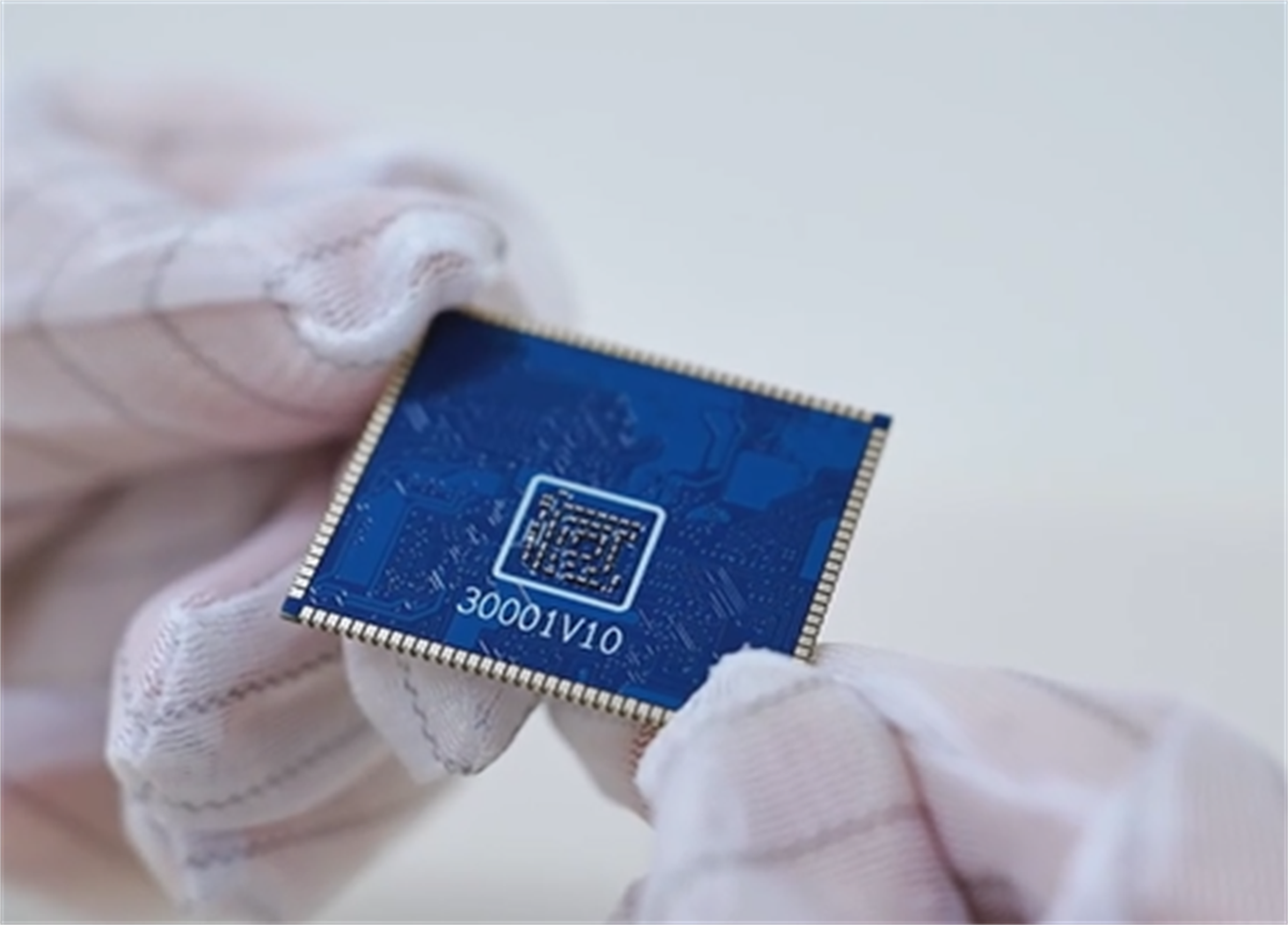

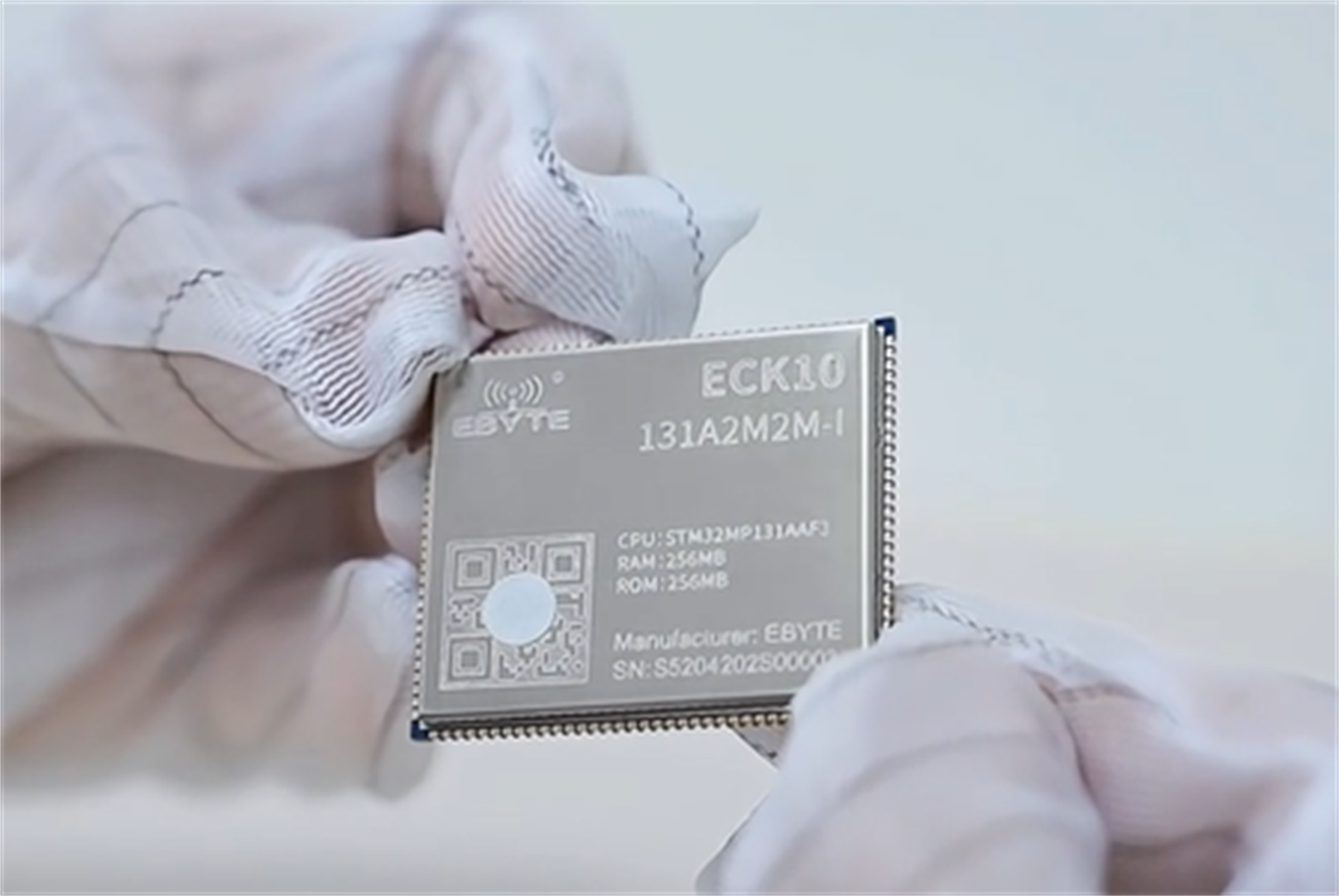

The EBYTE ECK10 series are embedded core boards based on the STMicroelectronics STM32MP13 processor family. The ECK10-13xA series (131A2M2M-I and 135A5M5M-I) feature a 128-pin stamp-hole package, an Arm Cortex-A7 core at 650MHz, on-board DDR3L and NAND Flash, and an integrated Gigabit Ethernet PHY, ideal for cost-effective industrial applications. The ECK10-135D series (135D5E8-C and 135D2-C) adopt a 204-pin DDR3 gold finger interface, a faster 1GHz Cortex-A7 core, and optional eMMC storage, offering richer I/O resources for high-performance scenarios.

| Parameter | ECK10-131A2M2M-I | ECK10-135A5M5M-I | ECK10-135D5E8-C | ECK10-135D2-C |

| :-------- | :-----------: | :-----------: | :-----------: | :-----------: |

| Processor | STM32MP131AAF3 | STM32MP135AAF3 | STM32MP135DAF3 | STM32MP135DAF3 |

| Core / Freq. | Cortex-A7, 650MHz | Cortex-A7, 650MHz | Cortex-A7, 1GHz | Cortex-A7, 1GHz |

| RAM | 256MB DDR3L | 512MB DDR3L | 512MB DDR3L | 256MB DDR3L |

| Storage | 256MB NAND | 512MB NAND | 8GB eMMC | External TF Card |

| Interface | 128-pin Stamp Hole | 128-pin Stamp Hole | 204-pin Gold Finger | 204-pin Gold Finger |

| Temp. Range | -40℃ ~ +85℃ | -40℃ ~ +85℃ | 0℃ ~ +70℃ | 0℃ ~ +70℃ |

| Size (mm) | 38 × 32 × 3.1 | 38 × 32 × 3.1 | 67.6 × 30 × 4.5 | 67.6 × 30 × 4.5 |

| Ethernet | 1× GbE (PHY on board) | 1× GbE (PHY on board) | 2× RGMII (PHY on baseboard) | 2× RGMII (PHY on baseboard) |

| Supply Voltage | DC +5V ±10% | DC +5V ±10% | DC +5V ±10% | DC +5V ±10% |
