AT89LP Chip Copier/Duplicator ISP Programmer

Ordering from the USA? Please send me a message.

Chip Copier/Standalone ISP Programmer for ATMEL/Microchip AT89LP Devices

Copy, Program, and Duplicate AT89LP Microcontrollers without a Computer

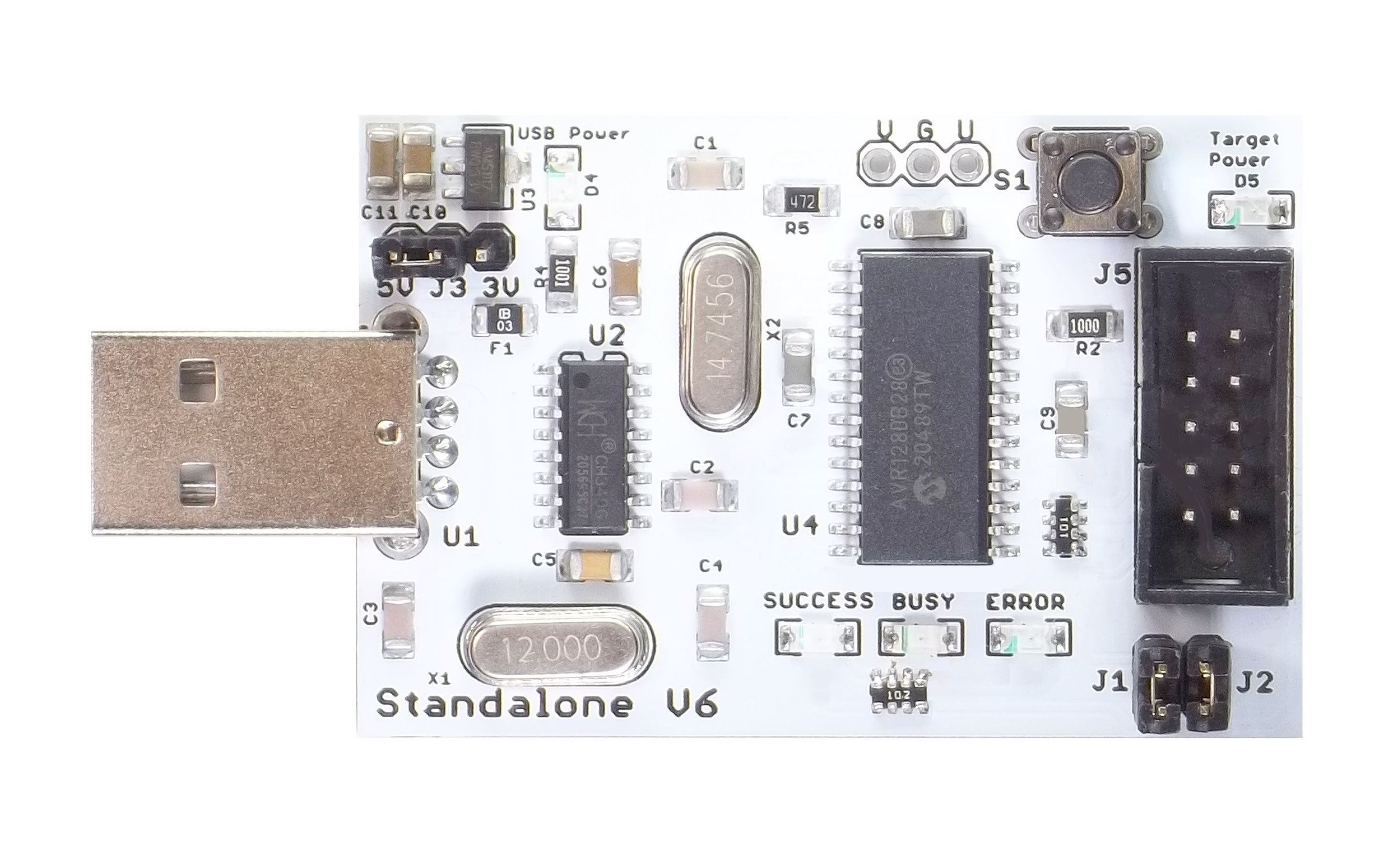

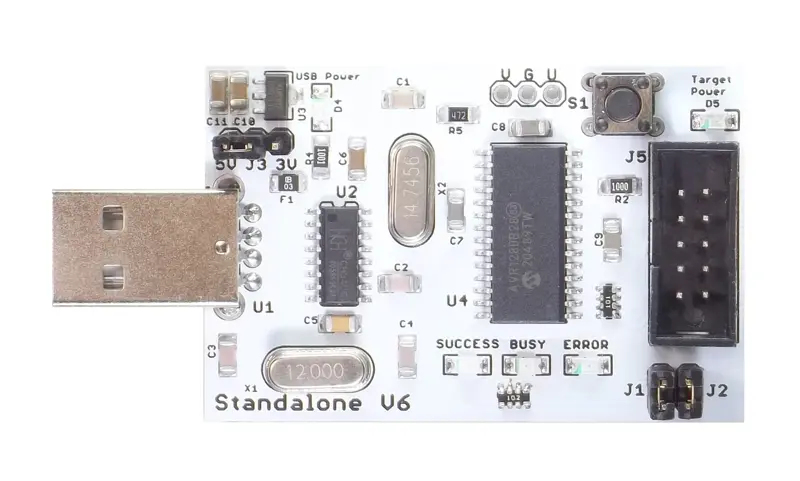

The AT89LP Chip Copier is a standalone ISP programmer designed for reading, copying, and programming Atmel/Microchip AT89LP series microcontrollers.

With a newly redesigned circuit board and improved firmware, this latest version programs up to 25 times faster than previous versions, with speeds up to 4 MHz.

Use it as a completely standalone copier/programmer in the field, or connect it to a USB port to view programming messages during operation.

Features

1. Standalone operation — no computer required after setup
2. Reads and copies AT89LP devices
3. Programs AT89LP devices in seconds
4. High-speed SPI programming up to 4 MHz
5. USB connection available for monitoring operation
6. Stores copied data and configuration in non-volatile memory
7. Retains data even when powered off
8. Selectable memory copy options
9. Optional chip locking after programming
10. Ideal for production programming and field updates

Copy and Program Functions

The AT89LP Chip Copier can read and program:

1. Flash memory
2. Data memory
3. EEPROM
4. User Signature Row (including calibration bytes)
5. Fuse settings
6. Lock bits

You can select which memory areas you want to copy. If you do not want to copy EEPROM, data memory, or signature row information, simply disable those options in the configuration menu.

The programmer can also automatically secure the device by programming the lock bits after writing.

Important: If the original device has already been protected with lock bits, the contents cannot be read or copied.

Simple Two-Step Operation

Read Mode

1. Remove jumper J1 to enter read mode.

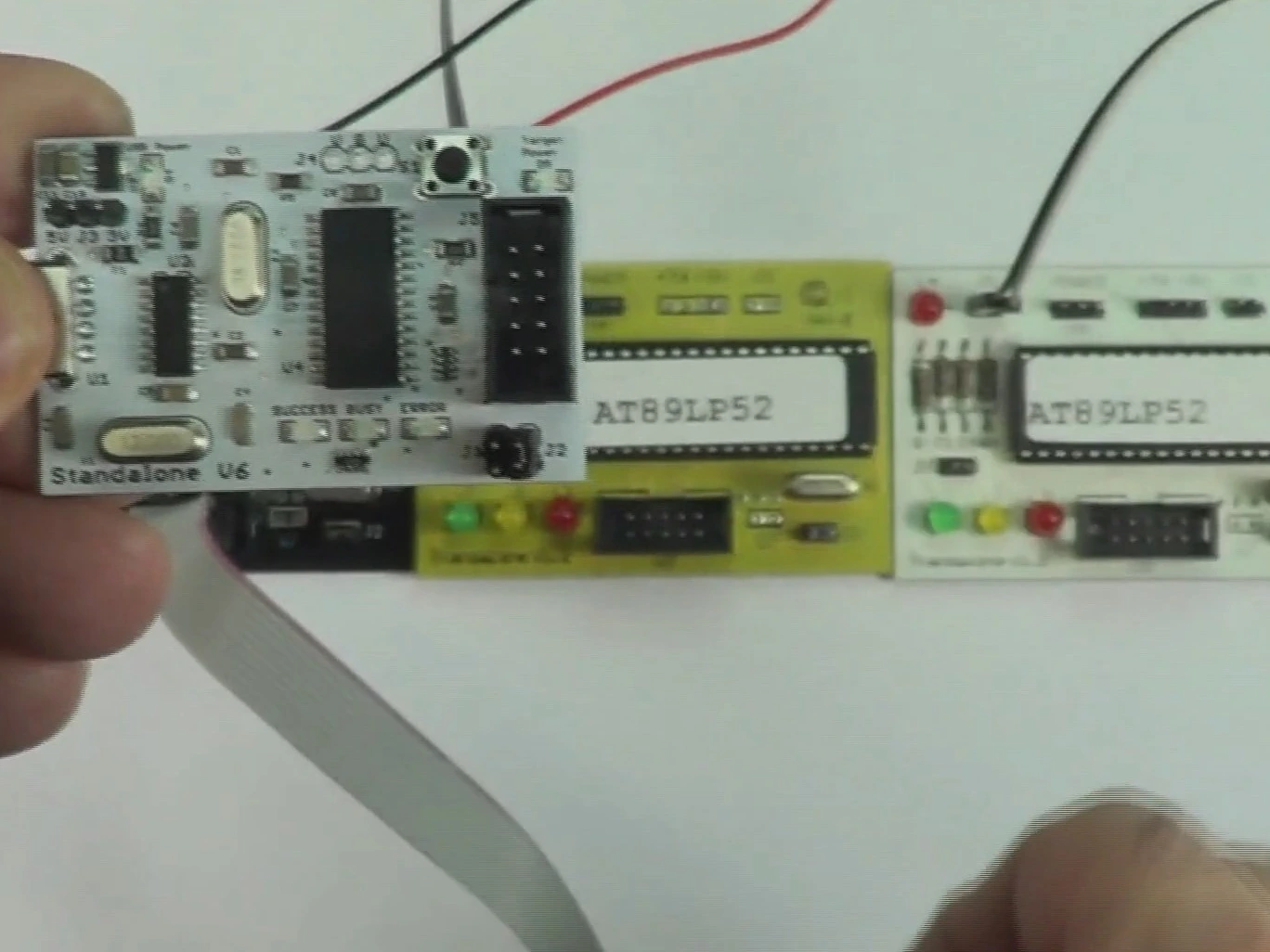

2. Connect the Chip Copier to your AT89LP ISP circuit.
3. The programmer reads the device contents and stores the data internally.

Write Mode

1. Install jumper J1 to enter programming mode.
2. Connect to a blank or replacement AT89LP device.
3. The Chip Copier writes the stored contents automatically.

The entire operation takes only seconds. Please watch the video.

Designed for Real-World Programming

The official Atmel programming tools for AT89LP devices rely on a PC parallel port. Modern computers rarely include parallel ports, and compatibility with newer operating systems can be difficult.

I work with AT89LP microcontrollers regularly and needed a reliable solution that could be used anywhere without carrying a computer, cables, and additional equipment.

The AT89LP Chip Copier was created to simplify a normally complicated programming process. Whether you are programming a few devices or hundreds, this small programmer makes the job fast and repeatable.

Perfect For:

1. Production programming
2. Manufacturing
3. Device duplication
4. Field service
5. Customer firmware updates
6. Replacing programmed devices
7. Development and testing

For bulk programming, simply power the Chip Copier from the target device or a USB power supply. Once one device is tested and ready, connect the programmer and duplicate the firmware in seconds.

Programming Interface

The AT89LP Chip Copier uses the Four-Wire SPI Programming Interface:

1. MOSI
2. MISO
3. SCK
4. RESET
5. Some devices also use SS

Easy Setup

The first setup requires a computer and a terminal program.

Configure your options once, then the AT89LP Chip Copier is ready to operate as:

1. A standalone ISP copier/programmer, or
2. A USB-connected programmer with live status messages

Your configuration and copied device data remain stored until you choose to change them.

Why Choose This Programmer?

Other aftermarket AT89LP programmers are available, but many are expensive and do not support standalone operation.

The AT89LP Chip Copier focuses on simplicity:

1. Read a working device
2. Store the contents
3. Program replacements quickly
4. No complicated configuration during daily use

Direct Technical Support

When you purchase this item, a link to the user guide will be emailed to you.

You are buying directly from the original designer, not a reseller. I provide direct technical support and will do my best to help you successfully program your AT89LP devices.

The AT89LP Chip Copier Programmer programs the following devices:

AT89LP213

AT89LP214

AT89LP216

AT89LP2052

AT89LP4052

AT89LP428

AT89LP828

AT89LP51

AT89LP52

AT89LP3240

AT89LP6440

AT89LP51RB2

AT89LP51RC2

AT89LP51IC2

AT89LP51RD2

AT89LP51ED2

AT89LP51ID2
