ATtiny UPDI High Voltage Fuse Repair Programmer

Ordering from the USA? Please send me a message.

Due to component shortages, quantities of this item are limited.

ATtiny UPDI Fuse Recovery Programmer/Standalone Brick Recovery Tool

Recover Disabled ATtiny UPDI Interfaces without the need for a computer!

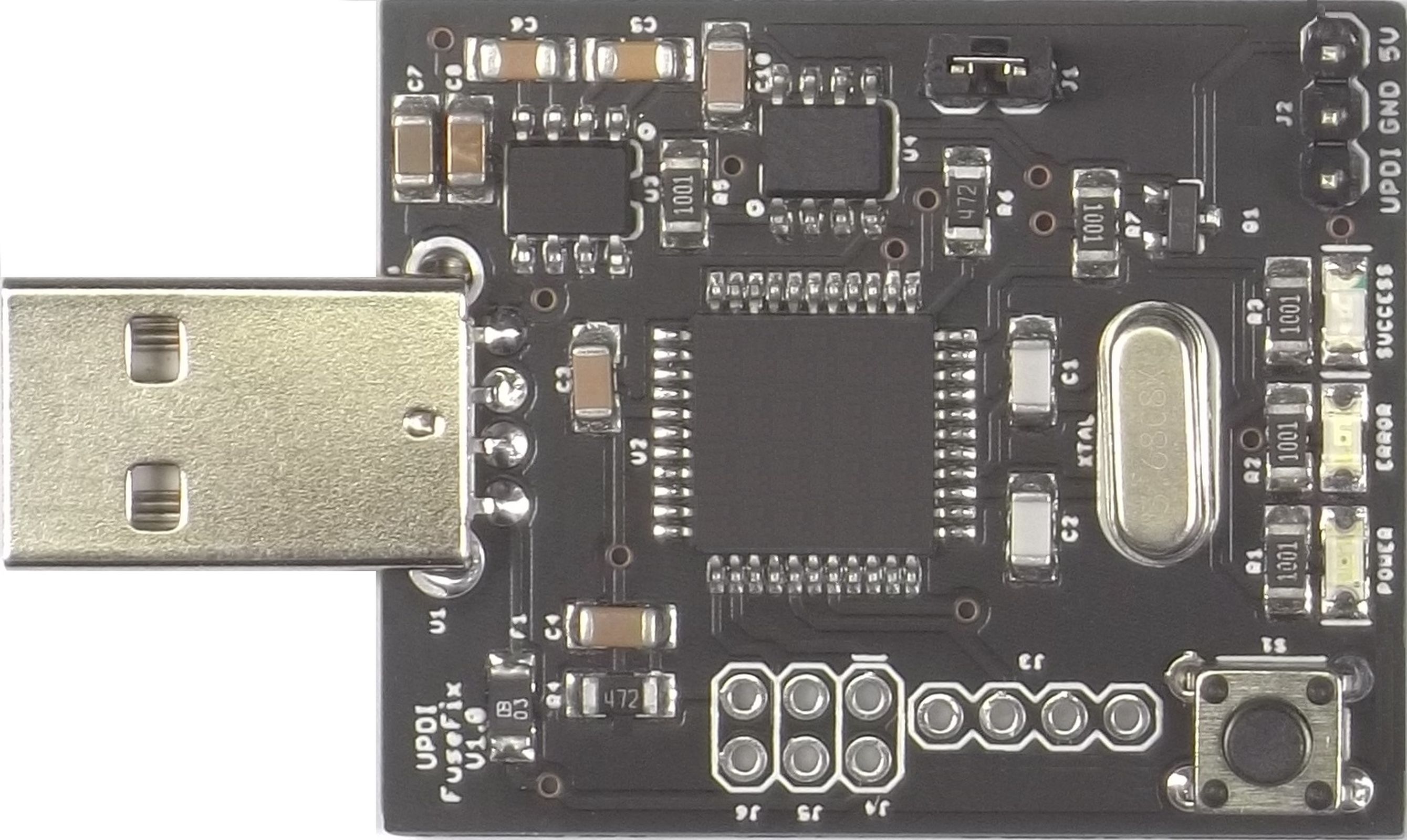

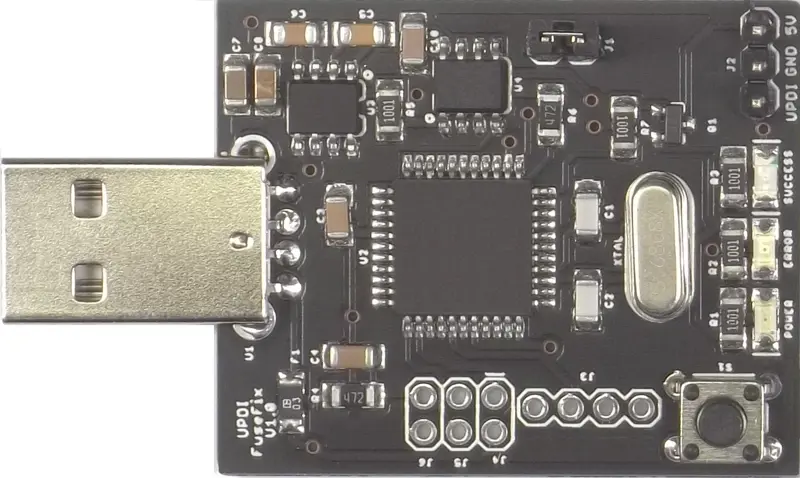

The ATtiny UPDI Recovery Programmer is a standalone tool designed to recover supported Microchip ATtiny microcontrollers when the UPDI programming interface has been accidentally disabled through incorrect fuse settings.

No PC connection is required. Simply connect the programmer to your target device, and it will automatically restore the UPDI interface and return the fuse settings to their factory defaults.

What Does It Do?

Many newer ATtiny devices use the UPDI pin for programming. Unfortunately, the UPDI pin can accidentally be configured as a normal GPIO pin through fuse programming, making the device appear "bricked" and preventing normal programming.

This programmer solves that problem by applying a controlled 12V pulse to the UPDI pin to restore UPDI communication.

Re-enabling the UPDI interface.

Restoring the device fuses to factory default settings.

Verifying the fuse programming operation.

Your device can then be programmed normally again using your regular UPDI programmer. Just watch the video here.

Features:

Standalone operation — no computer required

Designed specifically for ATtiny UPDI devices

Recovers accidentally disabled UPDI interfaces

Restores factory fuse settings

Automatic programming and verification

Simple LED status indicators

5V operation only

Fast recovery — usually completed in seconds

Easy to Use

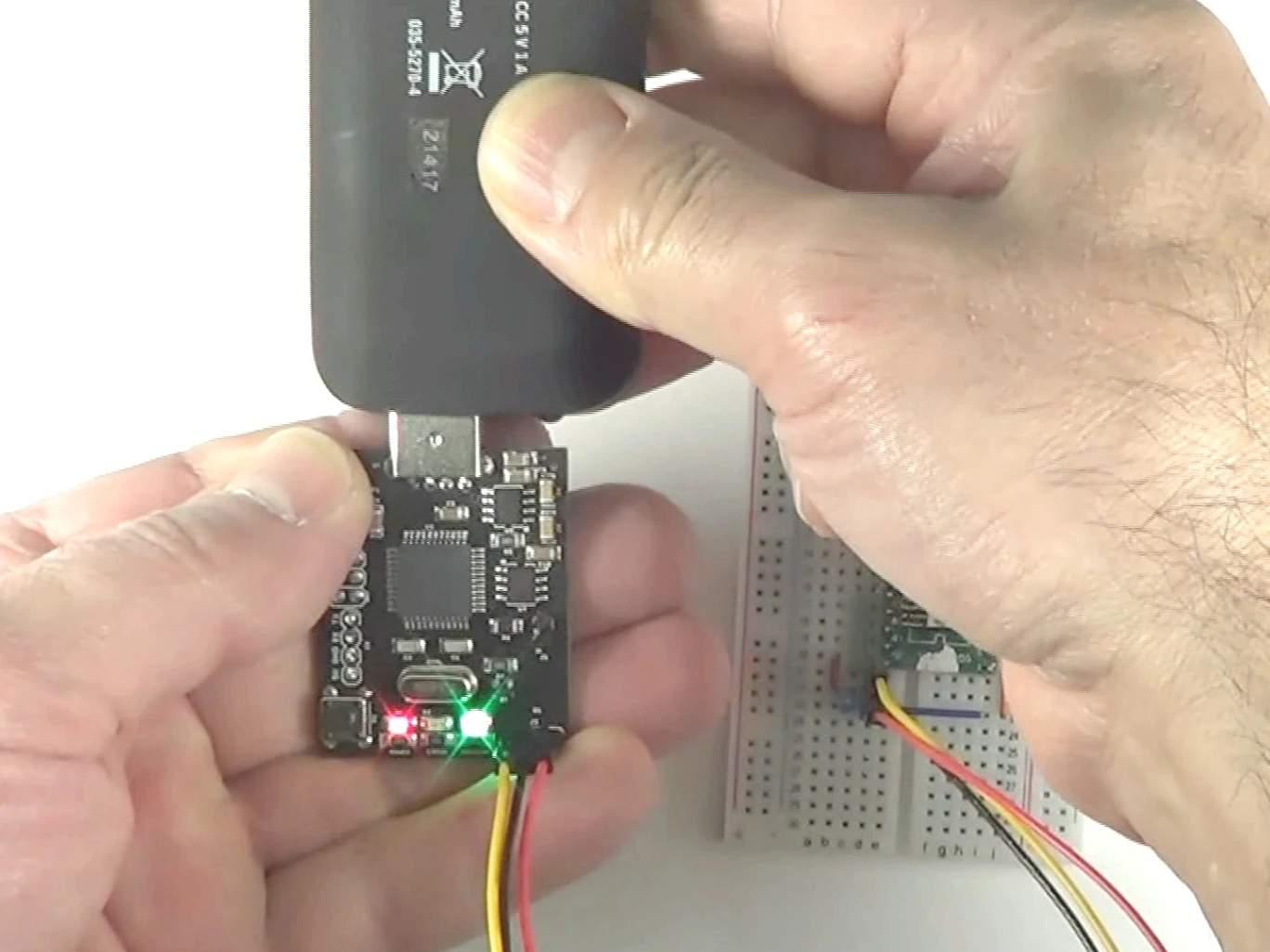

Connect the programmer to your ATtiny device.

Apply 5V power.

The programmer automatically performs the recovery process.

Check the LED status for the result.

That's it — your device is recovered and ready to program again.

Optional Read-Protect Recovery Feature

If you need to access firmware on a device where the UPDI pin was disabled, install jumper J1 to skip the erase operation.

Once the UPDI interface has been restored, you can use your normal UPDI programmer to read the device.

Note: If lock bits have already been programmed, the device contents cannot be recovered. The erase operation must remain enabled.

LED Error Codes

The programmer uses LED patterns to indicate the result of the recovery process.

Yellow LED — 2 Flashes, Device is locked

Possible causes:

This occurs only when jumper J1 is installed and the device lock bits prevent access.

Yellow LED — 3 Flashes, UPDI communication error

Possible causes:

Incorrect wiring, No device connected, Unsupported or damaged device

Yellow LED — 4 Flashes, Unsupported device

Possible causes:

The connected ATtiny device is not included in the supported device list.

Possible causes:

Yellow LED — Solid ON, Fuse verification failed

The fuse values did not verify after programming.

Green LED — Solid ON, Success!

Your ATtiny device has been successfully recovered.

Why Was This Made?

I needed a simple way to recover from a catastrophic fuse programming mistake without having to purchase expensive professional recovery equipment.

With modern chip shortages, replacing a device because the UPDI interface was accidentally disabled is frustrating and often unnecessary.

This small programmer can recover multiple "bricked" devices in just minutes and can quickly pay for itself after only a few uses.

Designed for Simplicity

The goal was simple:

No complicated, bloated, frustrating & slow windows application!

No expensive equipment

No computer required

Connect it and recover your device

This is a dedicated recovery tool for Microchip ATtiny UPDI devices.

Technical Support Included

You are purchasing directly from the original designer, not a reseller. If you have questions or need assistance, you will receive direct email support. I provide honest, quick responses and will do my best to help you successfully recover your ATtiny device.

Device List For the UPDI ATTiny Standalone Fuse Restore Programmer

ATtiny1604 ATtiny202 ATtiny804

ATtiny1606 ATtiny204 ATtiny806

ATtiny1607 ATtiny212 ATtiny807

ATtiny1614 ATtiny214 ATtiny814

ATtiny1616 ATtiny402 ATtiny816

ATtiny1617 ATtiny404 ATtiny817

ATtiny1624 ATtiny406 ATtiny824

ATtiny1626 ATtiny412 ATtiny826

ATtiny1627 ATtiny414 ATtiny827

ATtiny3216 ATtiny416

ATtiny3217 ATtiny417

ATtiny3224 ATtiny424

ATtiny3226 ATtiny426

ATtiny3227 ATtiny427
