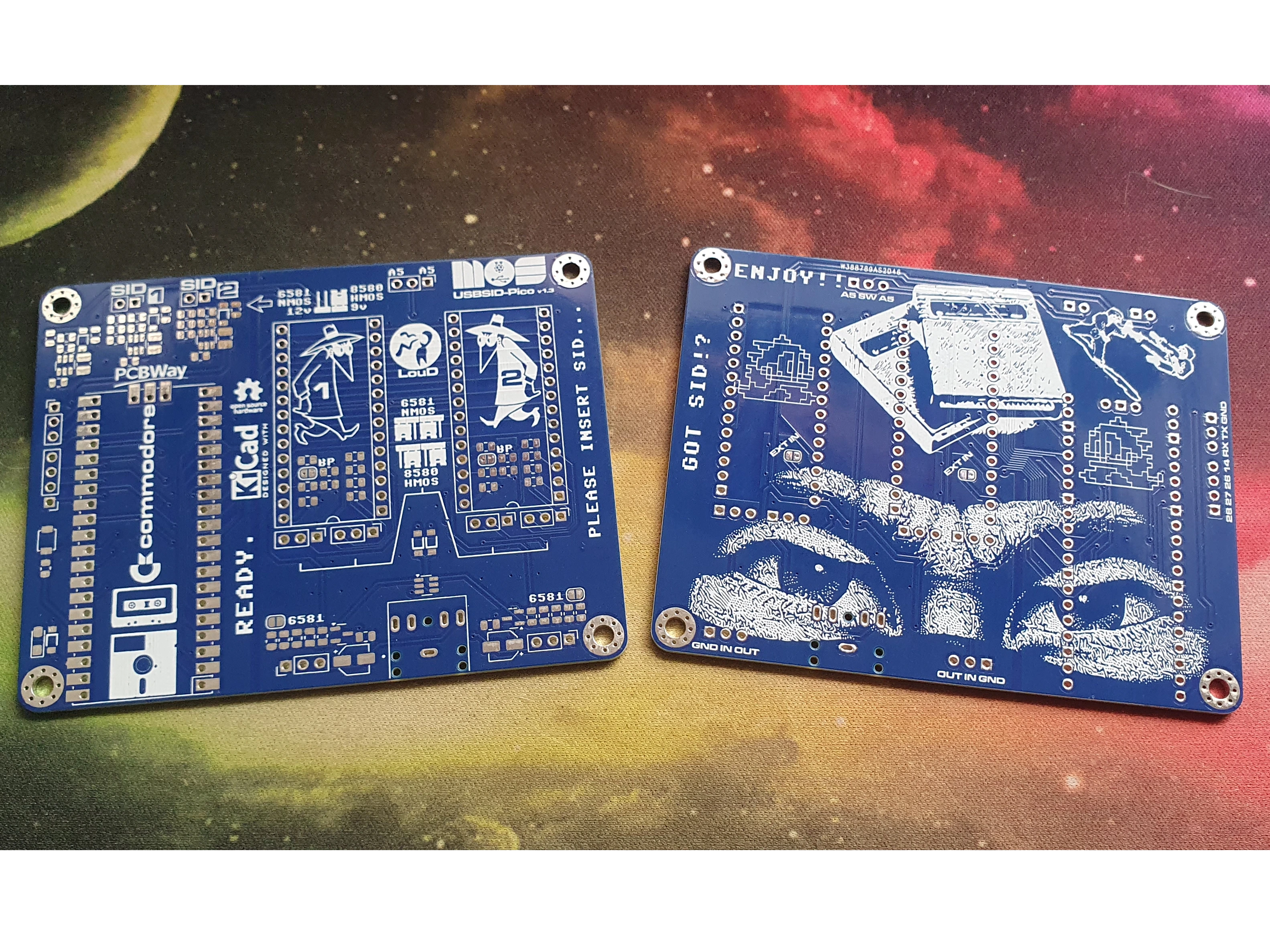

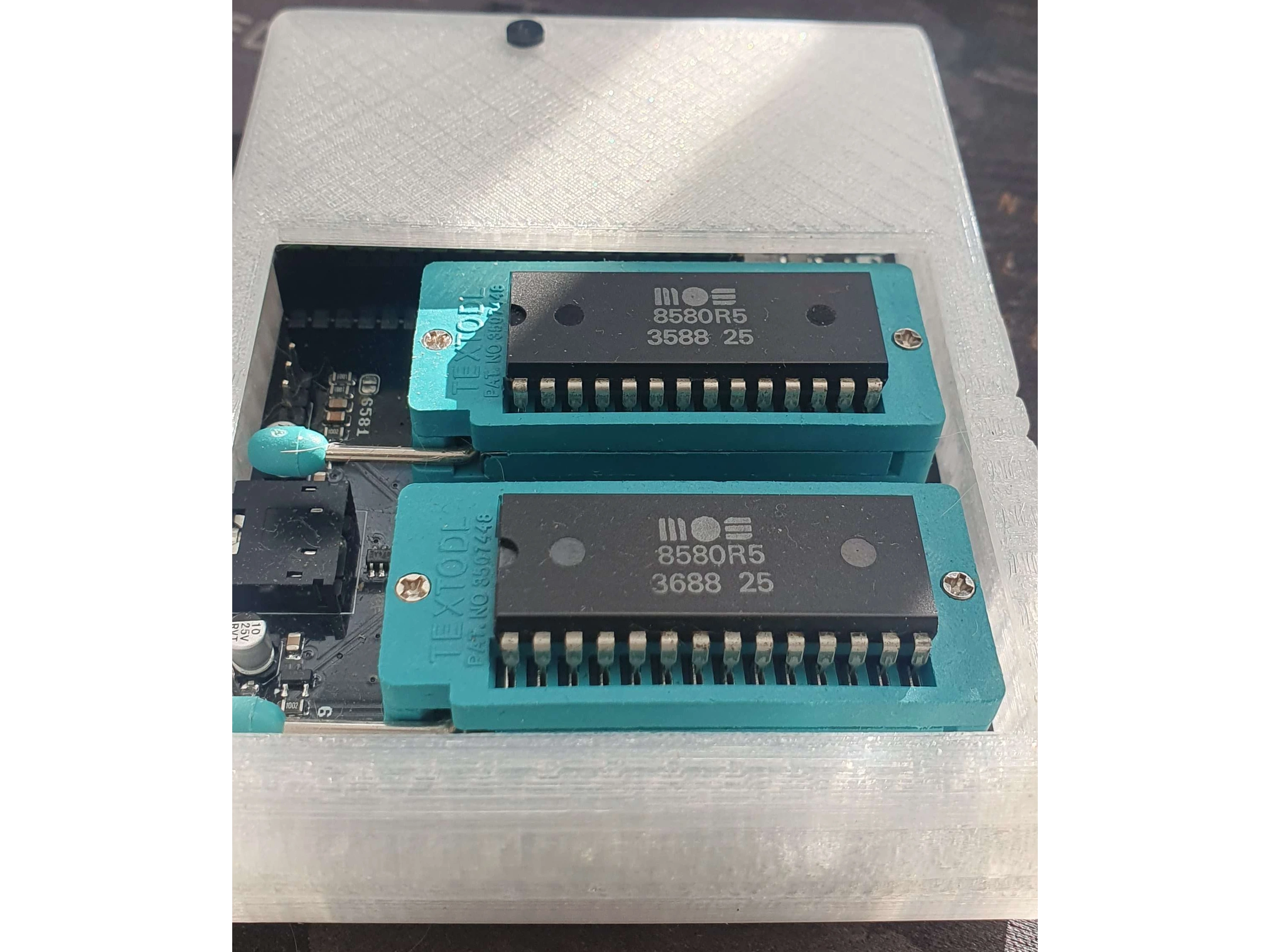

USBSID-Pico v1.3 Blue PCB Kit (unsoldered)

USBSID-Pico is a RaspberryPi Pico/PicoW (RP2040) & Pico2/Pico2W (RP2350) based board for interfacing one or two MOS SID chips and/or hardware SID emulators over (WEB)USB with your computer, phone, ASID supporting player or USB midi controller.

For more information check out the [official repo](https://github.com/LouDnl/USBSID-Pico)

This product is a Do-It-Yourself SMD and through hole solder kit. It needs an SMD and through hole part kit that you have to solder yourself.

Please note that when including a 3d printed case, I will print this on demand and this might delay shipment.

Included in this kit:

1. Bare blue PCB

Required to make this kit:

1. Set of SMD parts (optional purchase or self supplied)
2. Set of THT parts (optional purchase or self supplied)

Optional purchases:

1. Set of SMD parts
2. 0805 capacitors
3. 2x 1000pF
4. 6x 470pF
5. 8x 100nF
6. 9x 22uF
7. 4x 22nF
8. 0805 resistors
9. 3x 10k
10. 9x 1k
11. 1x 7,5k
12. 2x 18k
13. 2x 47k
14. 2x 330k
15. 2x 100k
16. 1x 3216 10uF 16V 3Ω@100kHz ±10% Tantalum capacitor
17. 2x SMD,D4xL5.4mm 10uF 25V ±20 Electrolytic cap capacitor
18. 6x SOD-123FL 20V 300mV@1A 1A MBR120 Schottky Diodes
19. 3x 1008 4.7uH ±20% 1.2A Power Inductors ROHS
20. 2x SOT-23 40V 225mW 100@150mA,10V 600mA MMBT2222A NPN Transistor
21. 1x 2.5x3mm 50mA SPST button
22. 3x SOT-23-6 MT3608 High Efficiency 1.2MHz 2A Step Up Converter
23. 1x SOT-23-6 DG467 Low Power, High Voltage SPST Analog Switches
24. Set of THT parts
25. 1x SJ1-3525N audio jack port
26. 2x 28-pin DIP wide sockets
27. 2x 20-pin female dupont header
28. to seat the pico (optional)
29. 6 yellow 2-pin jumper caps
30. Set of male dupont headers and their functionality
31. 2x 3-pin vertical for audio wires (optional)
32. 4x 3-pin horizontal for filter capacitor selection (requires jumper caps)
33. 1x 3-pin horizontal for filter capacitor selection for A5 address wire (optional)
34. 2x 2-pin vertical for SID socket voltage selection (requires jumper caps)
35. 1x 4-pin vertical for future expension gpio (optional)
36. 1x 3-pin vertical for uart (optional)
37. RaspberryPi Pico2
38. 3D printed casing

Not Included:

1. SID chips
