Standalone Infrared Decoder

What is it?

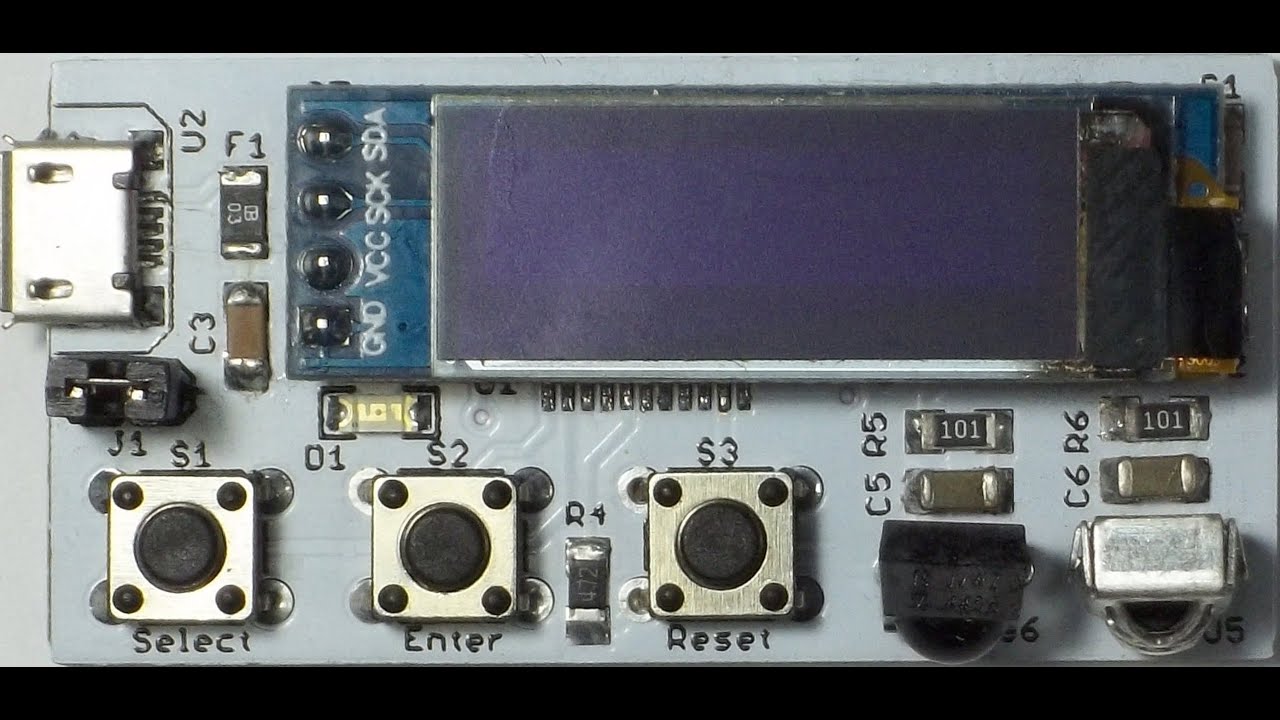

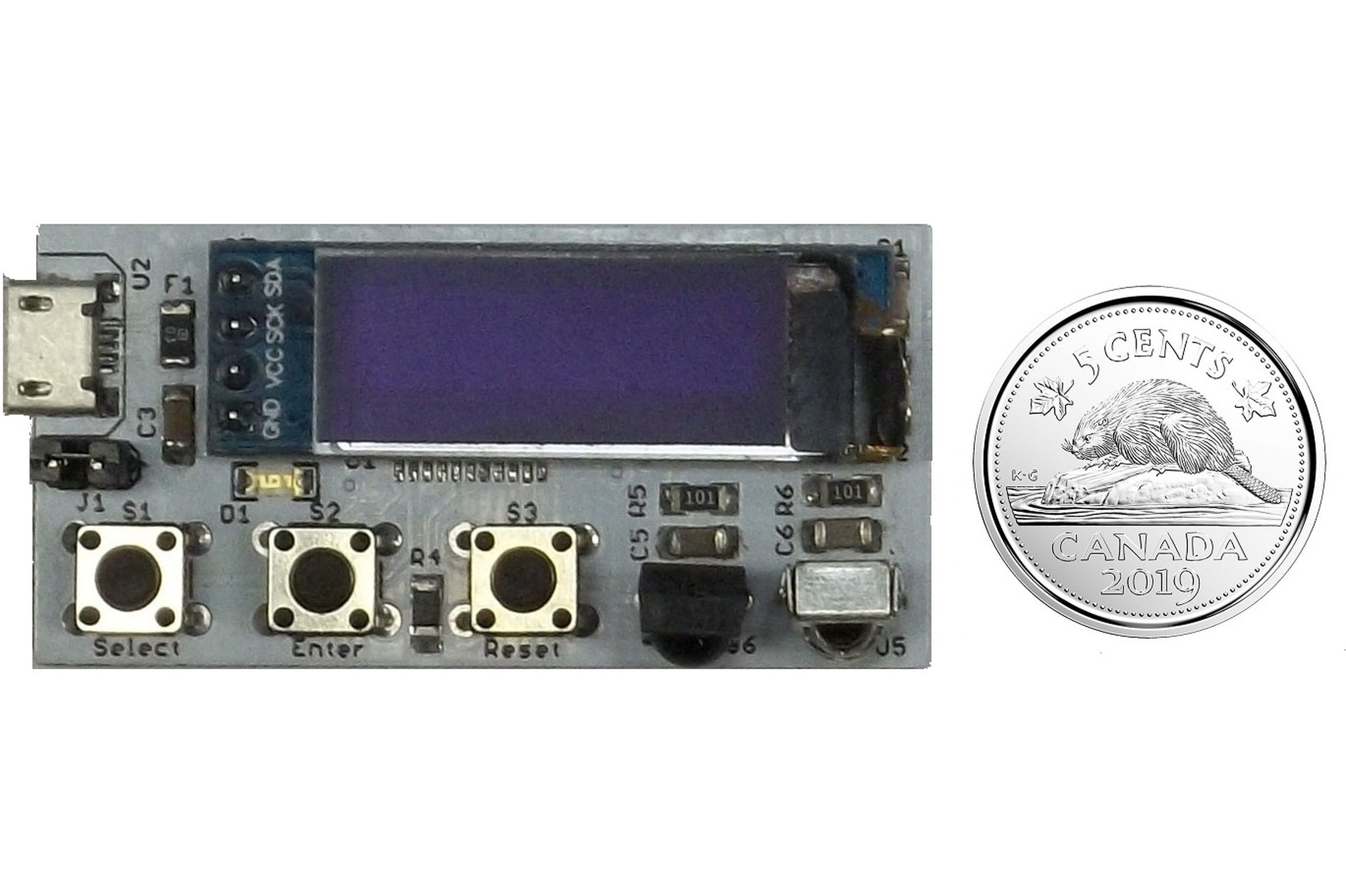

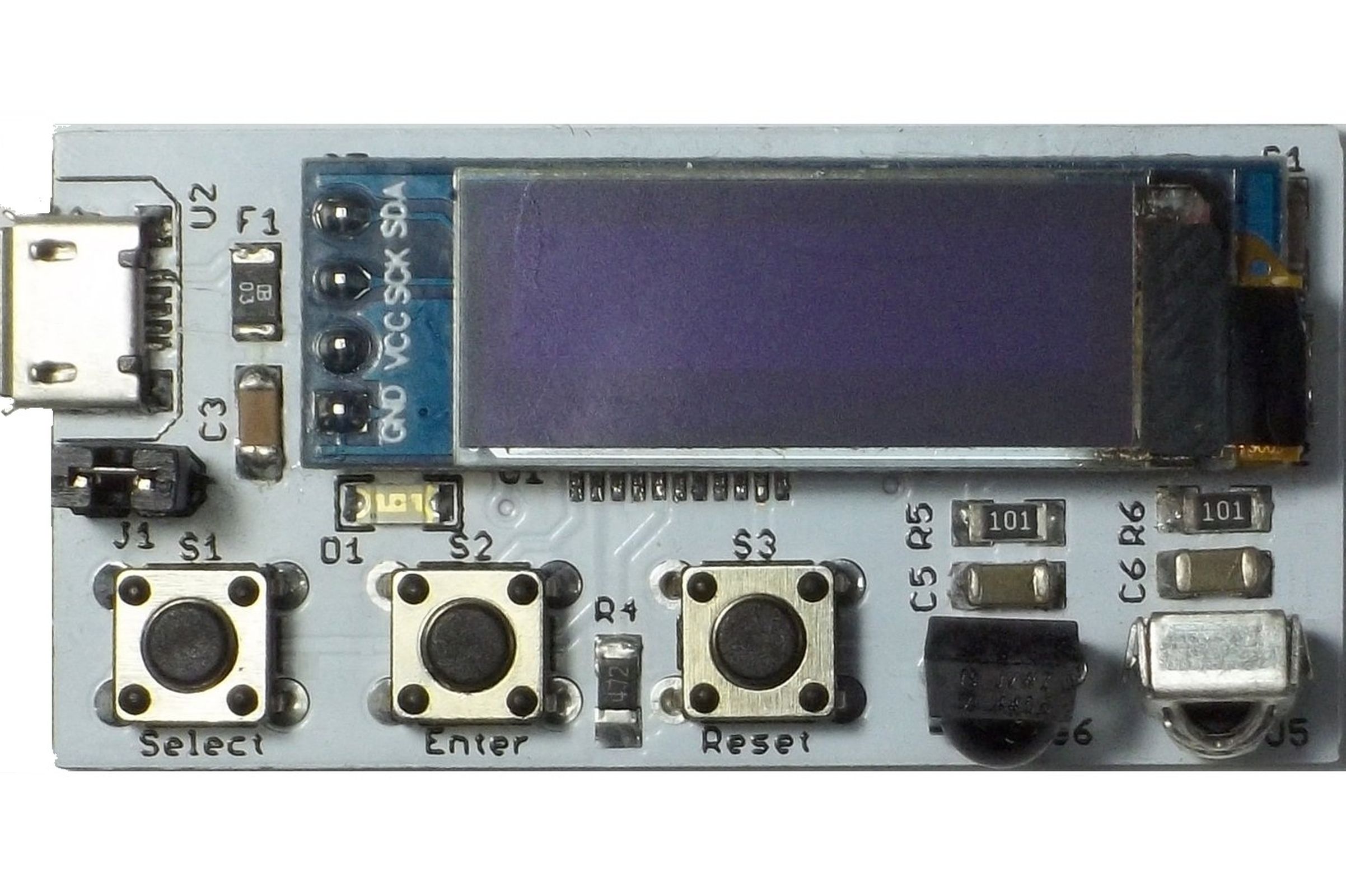

This item is an Infrared Decoder similar to my other one here or this one here except that this one does not require the use of a computer. The commands are displayed on a compact OLED screen. The device can be powered using a standard phone charger through the onboard Micro-B USB socket. (Power supply and cable not included.)

Why did you make it?

Sometimes you just need a fast, no-fuss way to test infrared remotes—no USB cables, no driver installations, no terminal setups. That’s exactly what this Decoder offers: a quick and simple solution for verifying your remote’s commands on the spot.

Why decode your remote's commands?

Backing up your remote’s data is a smart move in case it becomes inoperable or gets lost. With the command codes and device ID in hand, you can reprogram universal remotes or replicate functions without hassle.

What makes it special?

Two Easy Modes:

1. Basic Mode – Displays only the essential data.
2. Advanced Mode – Provides all the data.
3. Switching between modes is as simple as installing or removing a jumper.

User-Friendly Operation:

To use the Decoder, just scroll through the available protocol options, select the appropriate one, and aim your remote at the device. The decoded data will appear instantly on the integrated miniature OLED display.

Supported Protocols:

NEC1 (38 KHz)

NEC2 (38 KHz)

REC80 (56 KHz – commonly used by cable boxes)

Sony12 (40 KHz)

RECS80 (38 KHz)

DISH (56 KHz)

RC5 (36 KHz)

RC6 (36 KHz)

TDC-38 (38 KHz)

Perfect for hobbyists, repair technicians, or anyone working with universal remotes, this Decoder makes IR testing fast and frustration-free.
